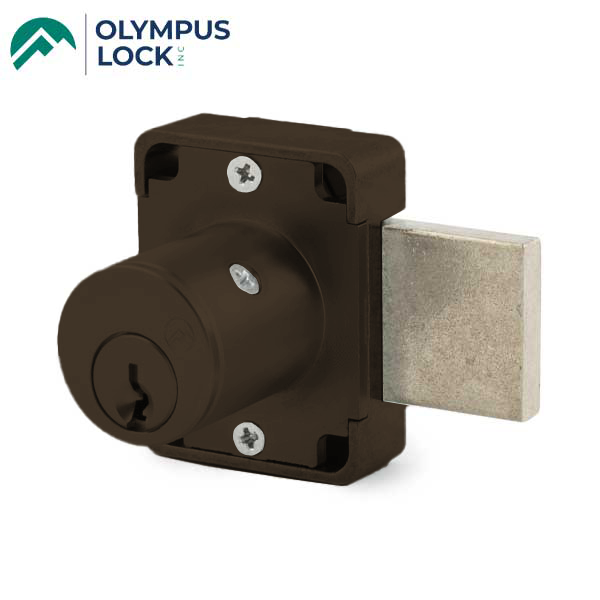

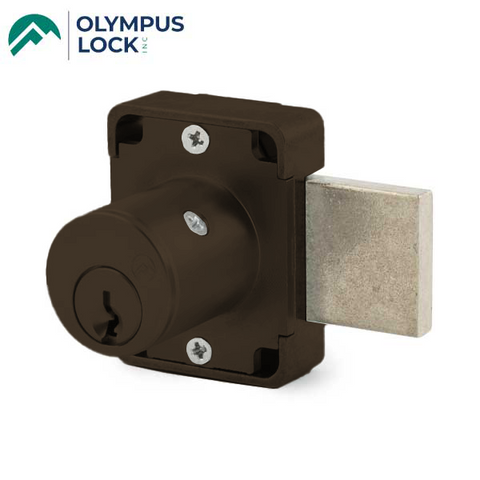

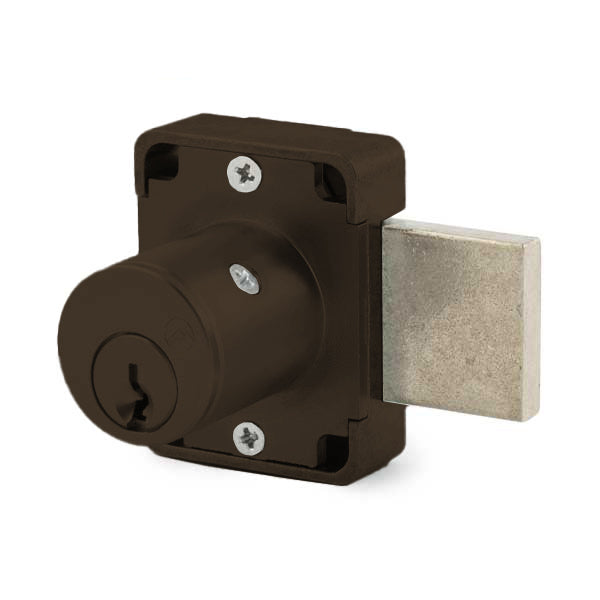

Olympus - 100B - Weather Resistant Cabinet Deadbolt Lock - D4291 4-pin - Standard Bolt - Oil Rubbed Bronze - Optional Keying - Grade 1
Available to Order
SKU:
OLY-100B10B78-101-KA
NSID:
33276
33277
33278
33279
33281
33264
33265
33266
33267
33269
- $45.14
-
$51.59 - $45.14
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-100B10BXXXX (Standard Bolt)
D4291 4-pin Keyway Door Deadbolt Lock.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- N Series: (equivalent to National D4291 4-pin system)
- Weather resistant cabinet deadbolt door lock
- Easily rekeyable via set screw cylinder release mechanism
- (E07121) ANSI/BHMA Grade 1
- Cylinder length: 15/16"
- Barrel diameter: 7/8"
Specifications:
| Function | Deadbolt door lock |
| Cylinder | N Series: (equivalent to National D4291 4-pin or system) |
| Keyed Alike | 101, 103, 107, 915 |
| Cylinder Length |
15/16" or 1-3/8" |
| Barrel Diameter | 7/8" |
| Bolt Length | Standard Bolt Length |
| Handing |
Non-handed |
| Function | Key removable in locked or unlocked position |
| Body | Zinc Die Cast |
| Finish | Oil Rubbed Bronze |
| Includes | 2 keys, 56-1 bar strike, and lock mounting screws |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(500DR) / E07041(600DW). |
