*Discontinued* Olympus - 100B - Weather Resistant Cabinet Deadbolt Lock - D4291 4-pin - Standard Bolt - Oil Rubbed Bronze - Optional Keying - Optional Handing - Grade 1

*Discontinued* Olympus - 100B - Weather Resistant Cabinet Deadbolt Lock - D4291 4-pin - Standard Bolt - Oil Rubbed Bronze - Optional Keying - Optional Handing - Grade 1

Discontinued
SKU OLY-100KL10B78-101-KA NSID 33391
$48.67$58.40On Sale You save $9.73 (17%)
Cylinder Length
Keying
Handing

OLY-100BK(L/R)XXXX (Standard Bolt)

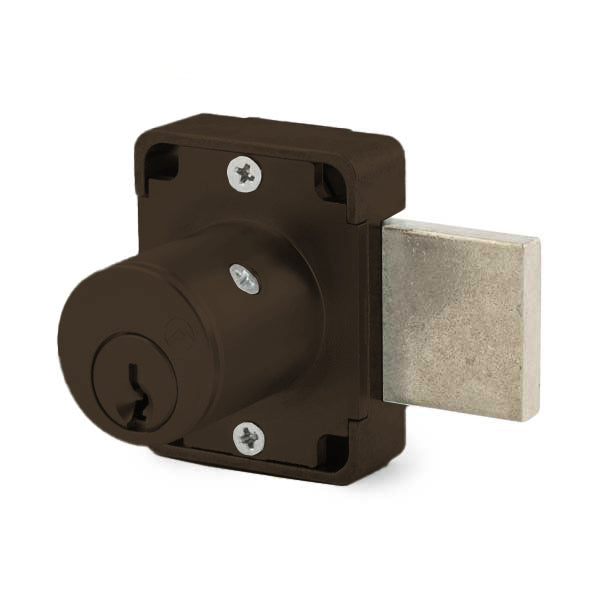

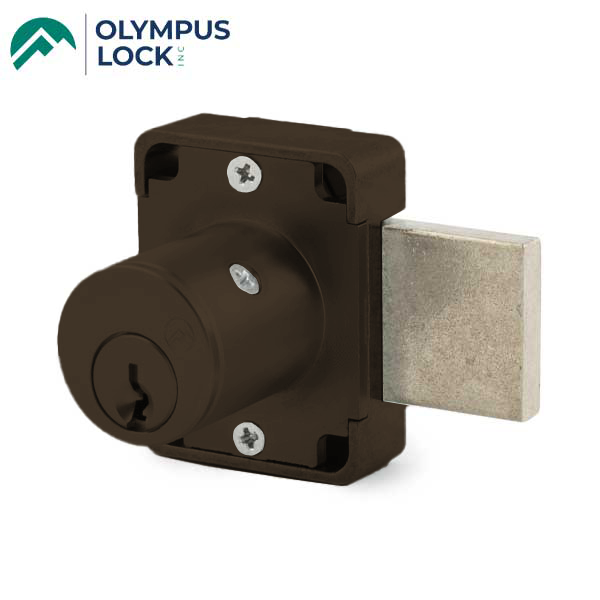

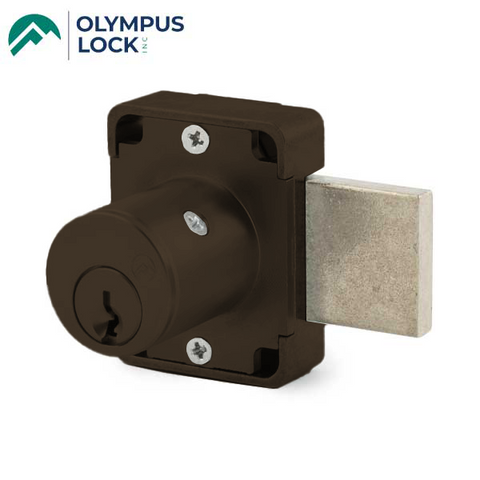

 D4291 4-pin Keyway Door Deadbolt Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • N Series: (equivalent to National D4291 4-pin system)
  • Weather resistant cabinet deadbolt door lock
  • Easily rekeyable via set screw cylinder release mechanism
  • (E07121) ANSI/BHMA Grade 1
  • Cylinder length: 15/16"
  • Barrel diameter: 7/8"
View full details

Details

Specifications:

Function Deadbolt door lock
Cylinder N Series: (equivalent to National D4291 4-pin system)
Keyed Alike 101, 103, 107, 915
Cylinder Length
 15/16" or 1-3/8"
Barrel Diameter 7/8"
Bolt Length Standard Bolt Length
Handing
 Optional Handing
Function Key removable in locked position only
Body Zinc Die Cast
Finish Oil Rubbed Bronze
Includes 2 keys, 56-1 bar strike, and lock mounting screws
Certifications Passed ANSI/BHMA A156.11
Grade 1 performance requirements. Equivalent to
E07121(500DR) / E07041(600DW).
