Olympus - 100DR - Deadbolt Door Lock - D4291 4-pin - Standard Bolt - N Series National - Satin Brass - Optional Cylinder Length - Optional Keying - Non Handed - Grade 1
Available to Order
SKU:
OLY-100-US4138-101-KA
NSID:
33568
33581
33569
33582
33570
33583
33577
33588
33579
33590
- $26.18
-
$46.76 - $26.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-100-US4XXXX (Regular Bolt)

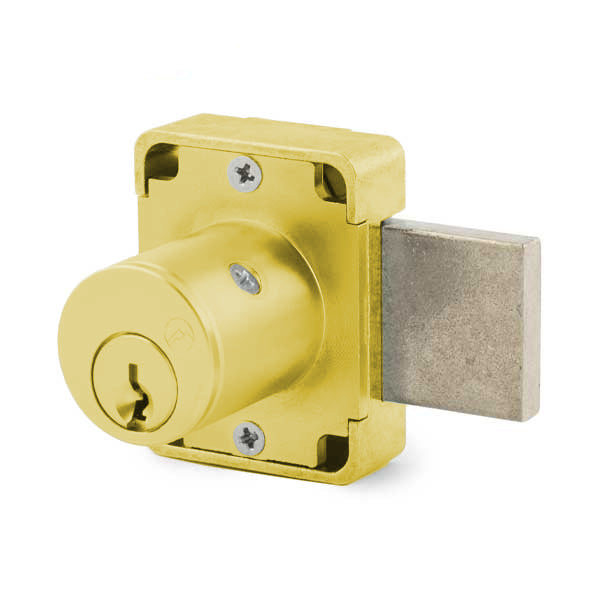

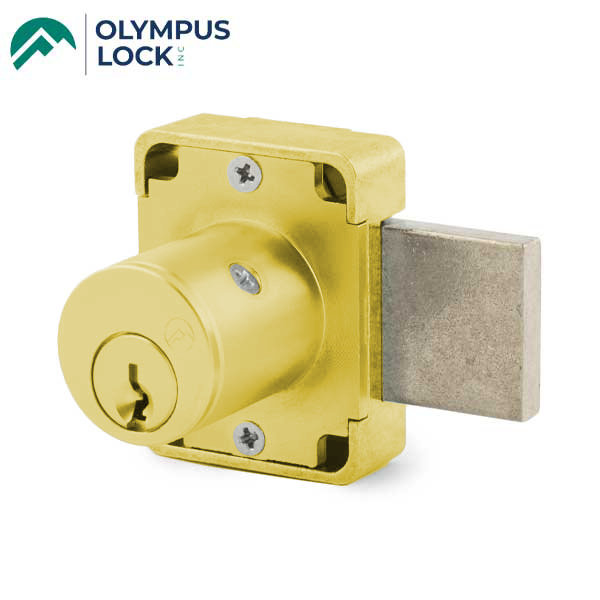

D4291 4-pin Keyway Deadbolt Door Lock
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- N Series: (equivalent to National D4291 4-pin system)
- Standard cabinet deadbolt door lock
- Easily rekeyable via set screw cylinder release mechanism
- (E07121) ANSI/BHMA Grade 1
- Cylinder length: 15/16" , 1-3/8"
- Barrel diameter: 7/8"
Specifications:
| Function | Deadbolt door lock |
| Cylinder | N Series: (equivalent to National D4291 4-pin system) |
| Keyed Alike | 101, 103, 107, 915 |
| Cylinder Length |
15/16" , 1-3/8" |
| Barrel Diameter | 7/8" |
| Bolt Length | Standard Bolt Length |
| Handing |
Non Handed |
| Function | Key removable in locked position only |
| Body | Zinc Die Cast |
| Finish | US4 Satin Chrome |
| Includes | 2 keys, 56-1 bar strike, and lock mounting screws |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. |
Downloads:
