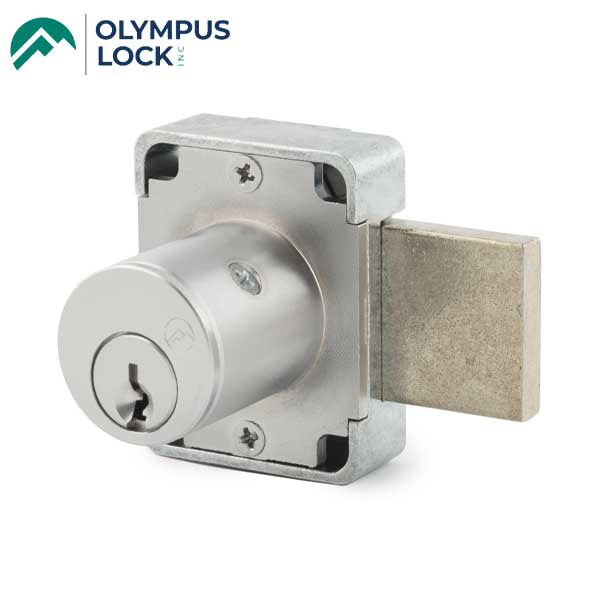

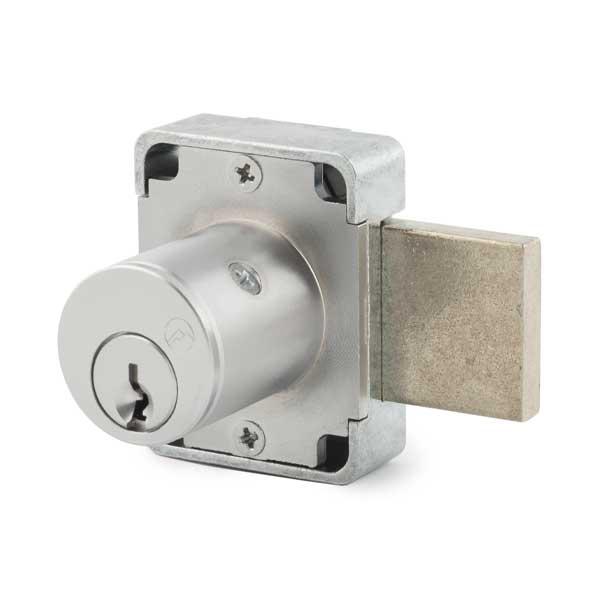

D4291 4-pin Keyway Door Deadbolt Lock.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- N Series: (equivalent to National D4291 4-pin system)
- Standard cabinet deadbolt door lock
- Easily rekeyable via set screw cylinder release mechanism
- (E07121) ANSI/BHMA Grade 1
- Barrel length: 15/16"
- Barrel diameter: 7/8"
Specifications:
| Function | Deadbolt door lock |
| Cylinder | N Series: (equivalent to National D4291 4-pin system) |
| Keyed Alike | 101, 103, 107, 915, 51001, 51002, 51003, 51004 |
| Cylinder Length |
15/16" or 1-3/8" |
| Barrel Diameter | 7/8" |
| Bolt Length | Standard Bolt Length |
| Handing |
Optional Left Hand (KL) or Right Hand (KR) |
| Function | Key removable in locked position only |
| Body | Zinc Die Cast |
| Finish | Satin Chrome Plated |
| Includes | 2 keys, 56-1 bar strike, and lock mounting screws |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(500DR) / E07041(600DW). |
