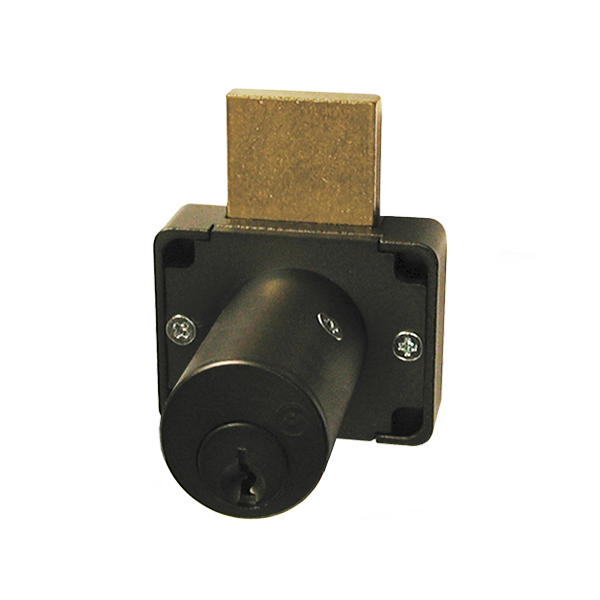

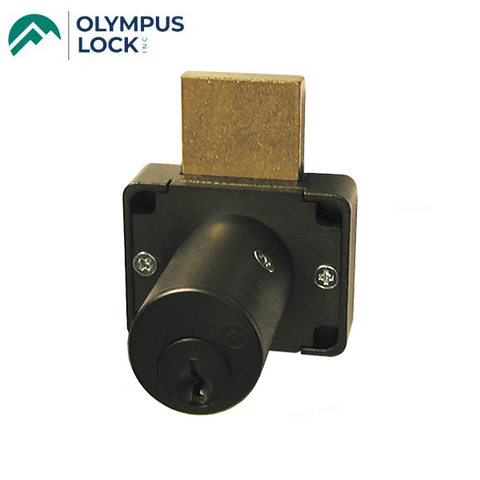

Olympus - 200B - Weather Resistant Cabinet Deadbolt Lock - N Series National - D4291 4-pin - Non Handed - Standard Bolt - Oil Rubbed Bronze - Optional Keying - Optional Cylinder Length - Grade 1
- Product SKU: OLY-200B10B138-101-KA
- NSID:
-
OLY-200B-10BXXXX (Standard Bolt)
D4291 4-pin Keyway Cabinet Deadbolt Lock.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:- N Series: (equivalent to National D4291 4-pin system)
- Weather resistant cabinet deadbolt door lock
- Easily rekeyable via set screw cylinder release mechanism
- Cylinder length: 1-5/8" , 1-3/8" , 15/16"
- Barrel diameter: 7/8"
Specifications:
| Function | Cabinet Deadbolt lock |
| Cylinder | N Series: (equivalent to National D4291 4-pin system) |
| Keyed Alike | 101, 103, 107, 915 |
| Cylinder Length |
15/16" , 1-3/8" , 15/16" |
| Barrel Diameter | 7/8" |
| Bolt | Standard |
| Handing |
Non-handed |
| Function | Key removable in locked or unlocked position |
| Body | Zinc Die Cast |
| Finish | Oil Rubbed Bronze |
| Includes | 2 keys, 12-3 angle strike, and lock mounting screws |
Downloads:
OLY-200B-10BXXXX (Standard Bolt)
D4291 4-pin Keyway Cabinet Deadbolt Lock.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- N Series: (equivalent to National D4291 4-pin system)
- Weather resistant cabinet deadbolt door lock
- Easily rekeyable via set screw cylinder release mechanism
- Cylinder length: 1-5/8" , 1-3/8" , 15/16"
- Barrel diameter: 7/8"
Specifications:
| Function | Cabinet Deadbolt lock |
| Cylinder | N Series: (equivalent to National D4291 4-pin system) |
| Keyed Alike | 101, 103, 107, 915 |
| Cylinder Length |
15/16" , 1-3/8" , 15/16" |
| Barrel Diameter | 7/8" |
| Bolt | Standard |
| Handing |
Non-handed |
| Function | Key removable in locked or unlocked position |
| Body | Zinc Die Cast |
| Finish | Oil Rubbed Bronze |
| Includes | 2 keys, 12-3 angle strike, and lock mounting screws |
