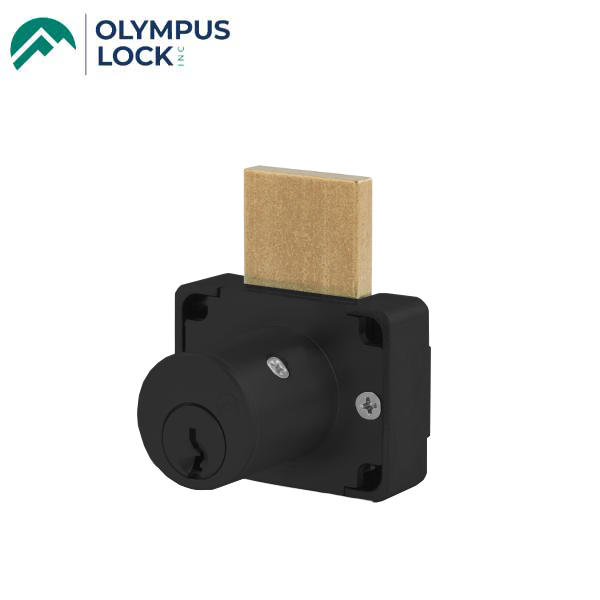

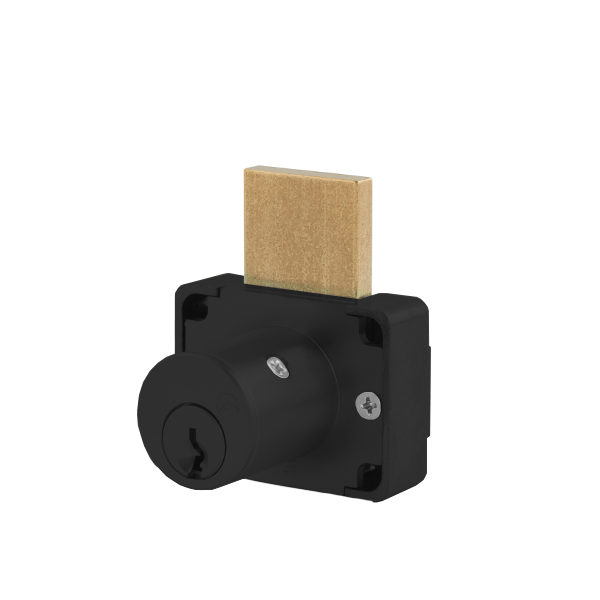

• Olympus - 200DW - Drawer Deadbolt Lock - N Series National - D4291 4-pin - Key Retaining - Optional Cylinder Length - Standard Length Bolt - Matte Black - Optional Keying - Grade 1 - UHS Hardware
  • Olympus - 200DW - Drawer Deadbolt Lock - N Series National - D4291 4-pin - Key Retaining - Optional Cylinder Length - Standard Length Bolt - Matte Black - Optional Keying - Grade 1 - UHS Hardware
1 2
Olympus

Olympus - 200DW - Drawer Deadbolt Lock - N Series National - D4291 4-pin - Key Retaining - Optional Cylinder Length - Standard Length Bolt - Matte Black - Optional Keying - Grade 1

Olympus - 200DW - Drawer Deadbolt Lock - N Series National - D4291 4-pin - Key Retaining - Optional Cylinder Length - Standard Length Bolt - Matte Black - Optional Keying - Grade 1

Available to order
SKU OLY-200KIUS19138-101-KA NSID 33902
$42.88$51.46On Sale You save $8.58 (17%)
Please Note: This product ships within 7 Days
Handing
Cylinder Length
Keying

OLY-200-(KI/KV)-US19XXXX (Regular Bolt)

D4291 4-pin Keyway Deadbolt Cabinet Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • N Series: D4291 4-pin Keyway
  • Drawer deadbolt cabinet lock
  • Easily rekeyable via set screw cylinder release mechanism
  • ( E07041) ANSI/BHMA Grade 1
  • Cylinder length: Optional lengths 15/16" or 1-3/8"
  • Barrel diameter: 7/8"
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Function Deadbolt Cabinet lock
Cylinder N Series (equivalent to D4291 4-pin system) w/ 2 keys per lock
Keyed Alike 101, 103, 107, 915, KD
Cylinder Length
 15/16" or 1-3/8"
Barrel Diameter 7/8"
Bolt Length Standard length bolt
Handing
 Left Handed or Right Handed
Function Key removable in locked position only
Body Zinc Die Cast
Finish US19 Matte Black
Includes 2 keys, 56-1 bar strike, and lock mounting screws.
Certifications Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07041(200DW).
