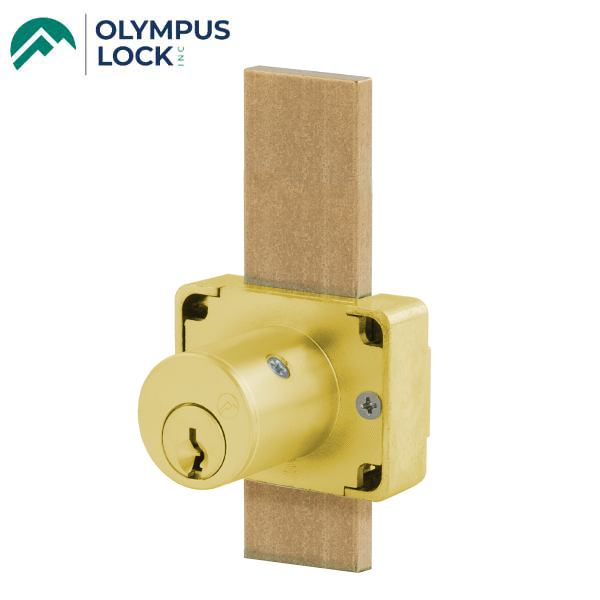

Olympus - 200DW - Drawer Deadbolt Lock - D4291 4-pin - Optional Cylinder Length - Long Bolt - Satin Brass - Optional Keying - Grade 1 - UHS Hardware
Olympus - 200DW - Drawer Deadbolt Lock - D4291 4-pin - Optional Cylinder Length - Long Bolt - Satin Brass - Optional Keying - Grade 1 - UHS Hardware

Olympus - 200DW - Drawer Deadbolt Lock - D4291 4-pin - Optional Cylinder Length - Long Bolt - Satin Brass - Optional Keying - Grade 1

Available to Order
SKU: OLY-200-US478LB-101-KA
NSID: 34153 34154 34155 34160 34162 34131 34132 34133 34138 34140

Please Note: This product ships within 2 Days

$38.63
$44.15
$38.63

OLY-200-US4XXXX (Long Bolt)

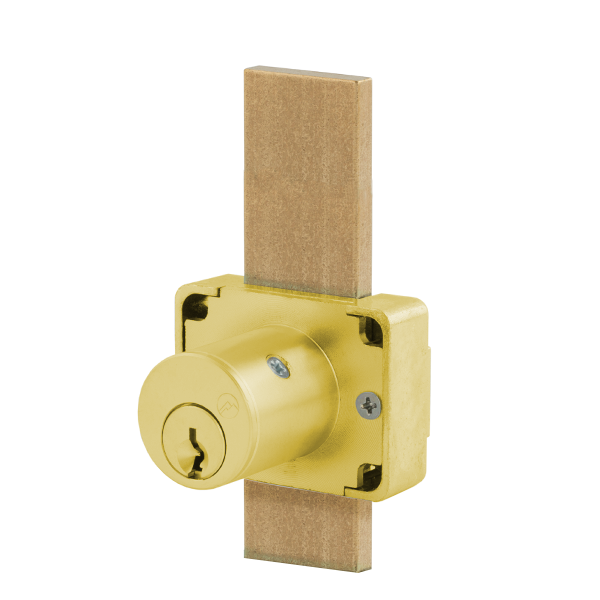

D4291 4-pin Keyway Drawer Deadbolt Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • N Series: D4291 4-pin Keyway
  • Drawer deadbolt door lock
  • Easily rekeyable via set screw cylinder release mechanism
  • ( E07041) ANSI/BHMA Grade 1
  • Cylinder length: Optional lengths 15/16" or 1-3/8"
  • Barrel diameter: 7/8"
Call 1-800-878-6604 for Bulk / Dealer Pricing!
Cylinder Length: 15/16"
Keying: Keyed Alike - 101-KA

Specifications:

Function Deadbolt drawer lock
Cylinder N Series (equivalent to D4291 4-pin system) w/ 2 keys per lock
Keyed Alike 101, 103, 107, 915,
Cylinder Length
15/16" or 1-3/8"
Barrel Diameter 7/8"
Bolt Length Long Bolt extended by 3/4" on both sides
Handing
Non-handed
Function Key removable in locked or unlocked position
Body Zinc Die Cast
Finish Satin Brass
Includes 2 keys, 56-1 bar strike, and lock mounting screws.
Certifications Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(100DR) / E07041(200DW).
