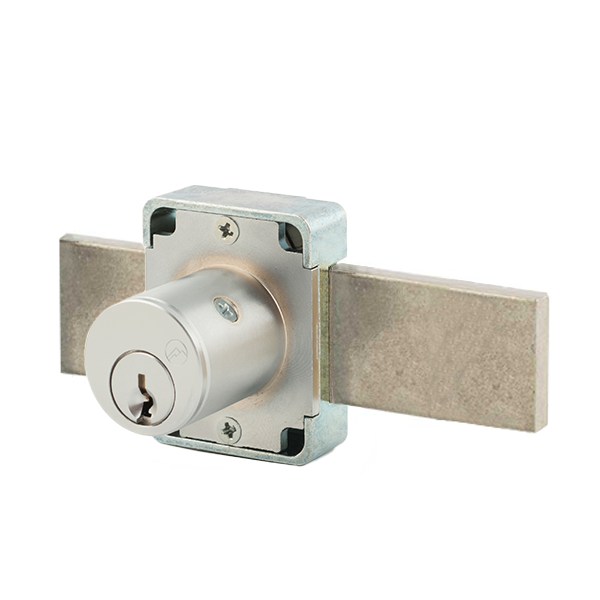

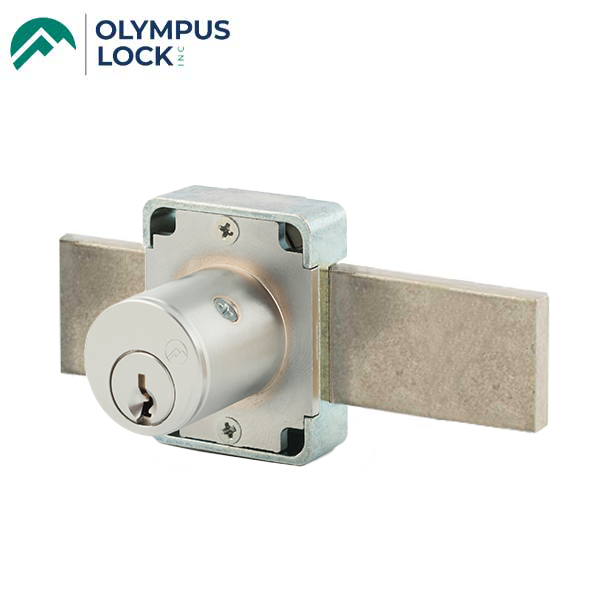

Olympus - 500B Weather Resistant - Cabinet Door Deadbolt Lock - CCL R1 - 1-3/8" Cylinder Length - Long Bolt - Satin Chrome - Grade 1
Available to Order
SKU:
OLY-500B26D138LB-4T2-KA
NSID:
34368
- $51.27
-
$55.27 - $51.27
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CCL R1 Keyway Door Deadbolt Lock Weather Resistant.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Weather resistant
- R Series: CCL R1 Keyway
- Cabinet deadbolt door lock
- Easily rekeyable via set screw cylinder release mechanism
- (E07121) ANSI/BHMA Grade 1
- Cylinder length: 1-3/8"
- Barrel diameter: 7/8"
Specifications:
| Function | Deadbolt door lock weather resistant |
| Cylinder | R Series (equivalent to CCL R1 system) w/ 2 keys per lock |
| Cylinder Length |
1-3/8" |
| Barrel Diameter | 7/8" |
| Bolt Length | Long bolt extended by 3/4" on both sides |
| Handing |
Non-handed |
| Function | Key removable in locked or unlocked position |
| Body | Zinc Die Cast |
| Finish | Satin Chrome |
| Includes | 2 keys, 56-1 bar strike, and lock mounting screws. |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(500DR) / E07041(600DW). |
Downloads:
