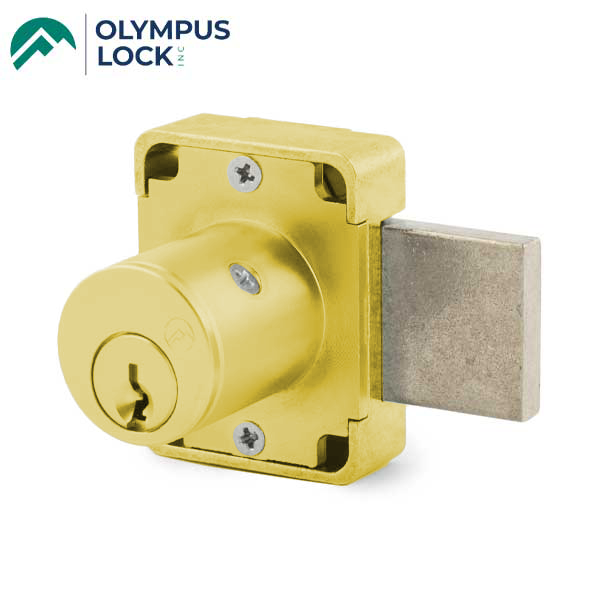

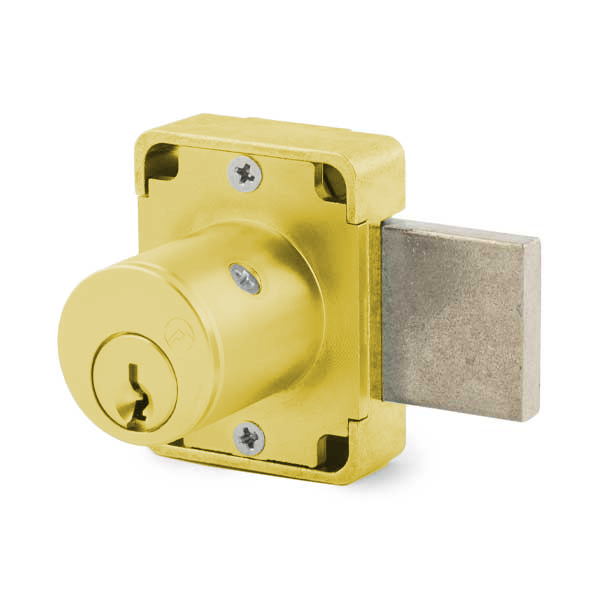

Olympus - 500B Weather Resistant - Cabinet Door Deadbolt Lock - CCL R1 - Optional Cylinder Length - Standard Length Bolt - Satin Brass - Optional Keying - Grade 1
- Product SKU: OLY-500BUS478-4T2-KA
- NSID:
-
OLY-500BUS4XXXX (Regular Bolt)
CCL R1 Keyway Door Deadbolt Lock Weather Resistant.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:- Weather resistant
- R Series: CCL R1 Keyway
- Cabinet deadbolt door lock
- Easily rekeyable via set screw cylinder release mechanism
- (E07121) ANSI/BHMA Grade 1
- Cylinder length: Optional lengths 15/16" or 1-3/8"
- Barrel diameter: 7/8"
Specifications:
| Function | Deadbolt door lock weather resistant |
| Cylinder | R Series (equivalent to CCL R1 system) w/ 2 keys per lock |
| Keyed Alike | KA 4T3 or 4T2 |
| Cylinder Length |
15/16" or 1-3/8" |
| Barrel Diameter | 7/8" |
| Bolt Length | Standard length bolt |
| Handing |
Non-handed |
| Function | Key removable in locked or unlocked position |
| Body | Zinc Die Cast |
| Finish | Satin Brass |
| Includes | 2 keys, 56-1 bar strike, and lock mounting screws. |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(500DR) / E07041(600DW). |
