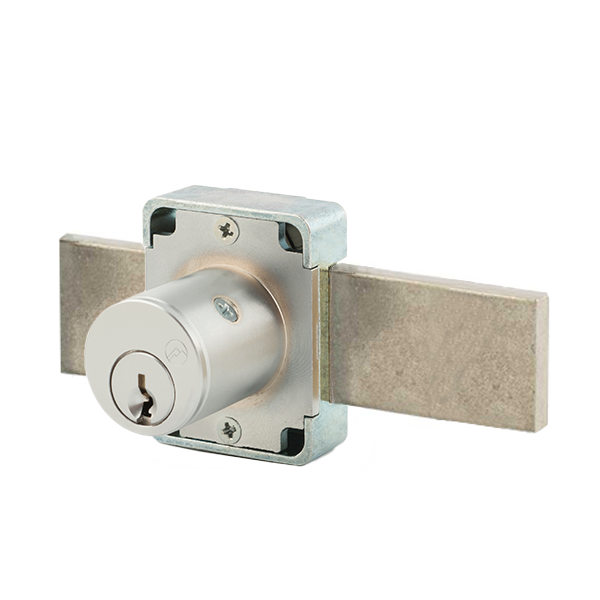

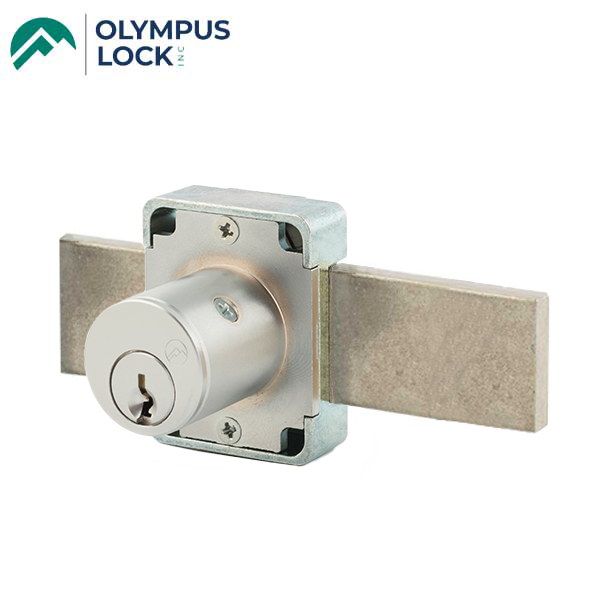

*Discontinued* Olympus - 500M - Cabinet Door Deadbolt Lock - MRI Function - CCL R1 - 1-3/8" Cylinder Length - Long Bolt - Satin Chrome - Grade 1

*Discontinued* Olympus - 500M - Cabinet Door Deadbolt Lock - MRI Function - CCL R1 - 1-3/8" Cylinder Length - Long Bolt - Satin Chrome - Grade 1

Discontinued
SKU OLY-500M26D138LB-4T3-KA NSID 34425
$56.05$67.26On Sale You save $11.21 (17%)

CCL R1 Keyway Door Deadbolt Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • R Series: CCL R1 Keyway
  • MRI locks are made of all non-magnetic materials and components specifically for use in MRI medical applications.
  • Cabinet deadbolt door lock
  • Easily rekeyable via set screw cylinder release mechanism
  • (E07121) ANSI/BHMA Grade 1
  • Cylinder length: 1-3/8"
  • Barrel diameter: 7/8"
View full details

Details

Specifications:

Function Deadbolt door lock non-magnetic
Cylinder R Series (equivalent to CCL R1 system) w/ 2 keys per lock
Cylinder Length
 1-3/8"
Barrel Diameter 7/8"
Bolt Length Long Bolt extended 3/4" on both sides
Handing
 Non-handed
Function Key removable in locked or unlocked position
Body Zinc Die Cast (Non-magnetic)
Finish Satin Chrome
Includes 2 keys, 56-1 bar strike, and lock mounting screws. Non-magnetic
Certifications Passed ANSI/BHMA A156.11
Grade 1 performance requirements. Equivalent to
E07121(500DR) / E07041(600DW).
