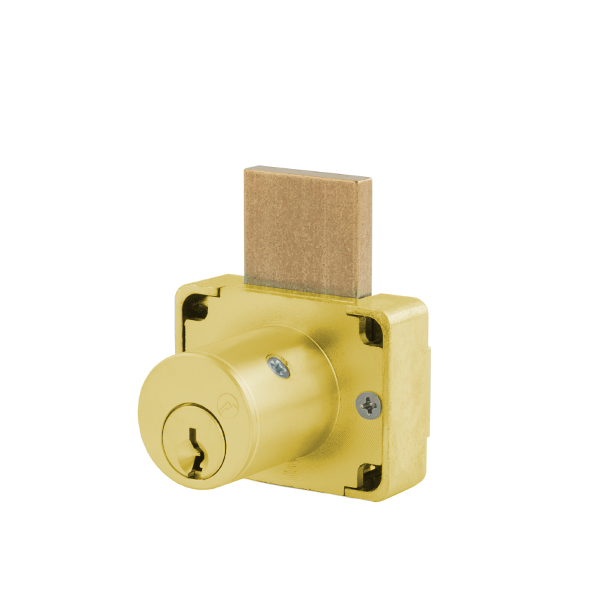

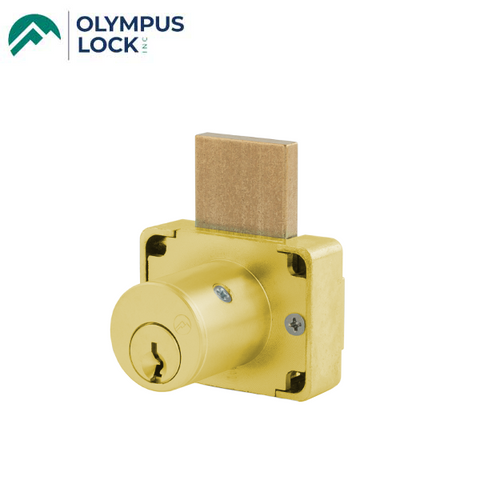

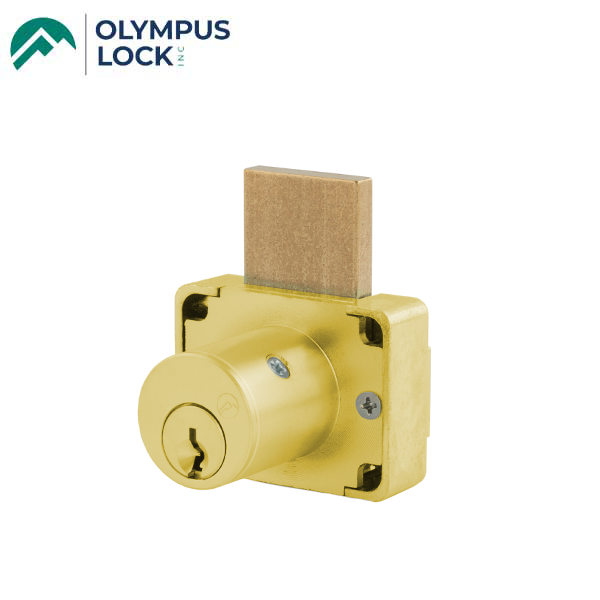

Olympus - 600DW - Drawer Deadbolt Lock - Key Retaining - CCL R1 - Optional Cylinder Length - Satin Brass - Optional Keying - Optional Handing - Grade 1 - UHS Hardware
Olympus - 600DW - Drawer Deadbolt Lock - Key Retaining - CCL R1 - Optional Cylinder Length - Satin Brass - Optional Keying - Optional Handing - Grade 1 - UHS Hardware

Olympus - 600DW - Drawer Deadbolt Lock - Key Retaining - CCL R1 - Optional Cylinder Length - Satin Brass - Optional Keying - Optional Handing - Grade 1

Available to Order
SKU: OLY-600KVUS478-4T2-KA
NSID: 34554 34530 34555 34531 34557 34533 34550 34526 34551 34527 34553 34529

Please Note: This product ships within 2 Days

$34.92
$39.91
$34.92
Cylinder Length: 15/16"
Keying: Keyed Alike - 4T2-KA
Handing: Vertical

OLY-600KI26DXXXX (Regular Bolt)

CCL R1 Keyway Door Deadbolt Lock Key Retaining.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • R Series: CCL R1 Keyway
  • Key retaining
  • Drawer deadbolt lock
  • Easily rekeyable via set screw cylinder release mechanism
  • (E07121) ANSI/BHMA Grade 1
  • Cylinder length: Optional lengths 15/16" or 1-3/8"
  • Barrel diameter: 7/8"
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Function Deadbolt drawer lock
Cylinder R Series (equivalent to CCL R1 system) w/ 2 keys per lock
Keyed Alike KA 4T3 or 4T2
Cylinder Length
15/16" or 1-3/8"
Barrel Diameter 7/8"
Bolt Length Standard Length Bolt
Handing
Vertical and Inverted
Function Key removable in locked position only
Body Zinc Die Cast
Finish Satin Brass
Includes 2 keys, 56-1 bar strike, and lock mounting screws.
Certifications Passed ANSI/BHMA A156.11
Grade 1 performance requirements. Equivalent to
E07121(500DR) / E07041(600DW).
