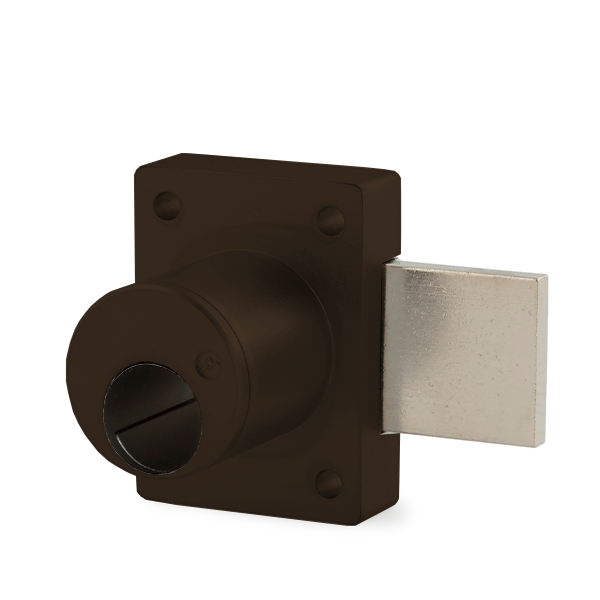

Olympus - 700LC - Cabinet Door Deadbolt Lock - Less Cylinder - Schlage Cylinder Compatible - Optional Cylinder Length - Oil Rubbed Bronze - Grade 1
- Product SKU: OLY-700LCA-10B
- NSID:
-
OLY-700LCXXXX (Regular Bolt)
S Series Schlage C Keyway Door Deadbolt Lock.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:- Will accept other manufacturer's Schlage compatible deadbolt cylinders
- Cabinet door deadbolt lock
- Passed ANSI/BHMA A156.11 Grade 1 performance requirements
- Cylinder length: Optional 1-1/8" or 1-3/8"
- Barrel diameter: 1-1/8"
Specifications:
| Function | Deadbolt door lock less cylinder |
| Cylinder | Will accept other manufacturer's Schlage compatible deadbolt cylinders |
| Cylinder Length |
Optional 1-1/8" or 1-3/8" |
| Barrel Diameter | 1-1/8" |
| Body | Zinc Die Cast |
| Finish | Oil Rubbed Bronze |
| Includes |
For 1-1/8"barrel length locks: - 10-350 plastic spacers (qty 2) - 10-054 1/4" plastic bar strike - 10-055 1/2" plastic bar strike - 10-361 tailpiece/driver bar - 10-360 universal driver, and 1 tailpiece for use with Schlage compatible cylinders For 1-3/8"barrel length locks: - 10-054 1/4" plastic bar strike - 10-360 universal driver, and 3 tailpieces for use with Schlage (10-362) compatible, Medeco (10-363) or Assa (10-364) cylinders |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121 (700S) / E07041 (800S). |
