Olympus

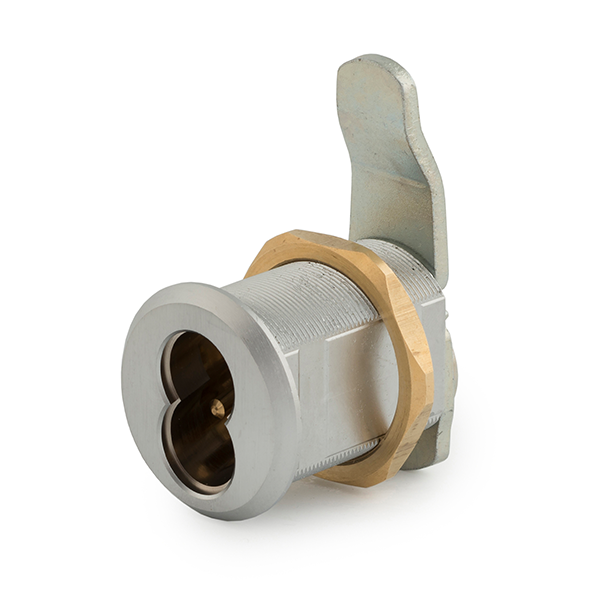

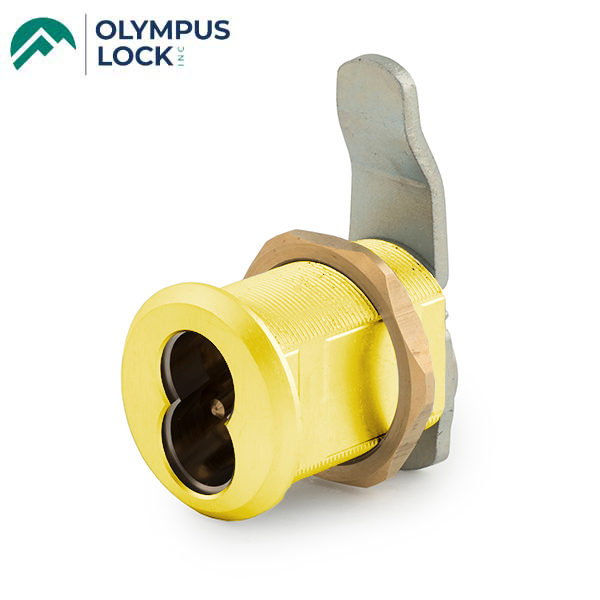

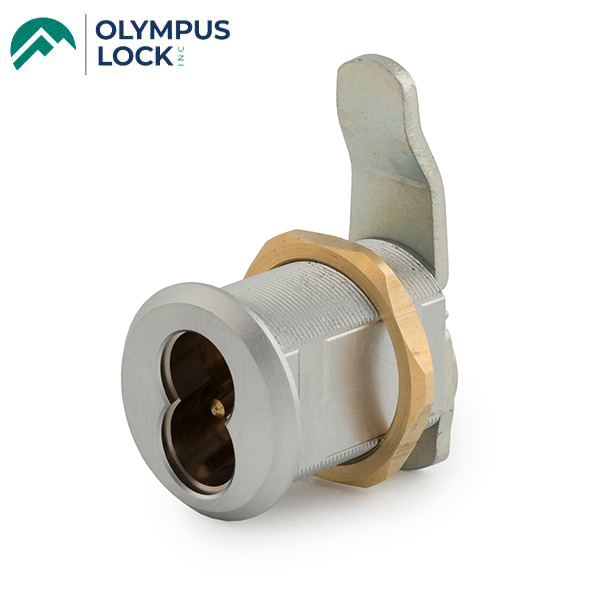

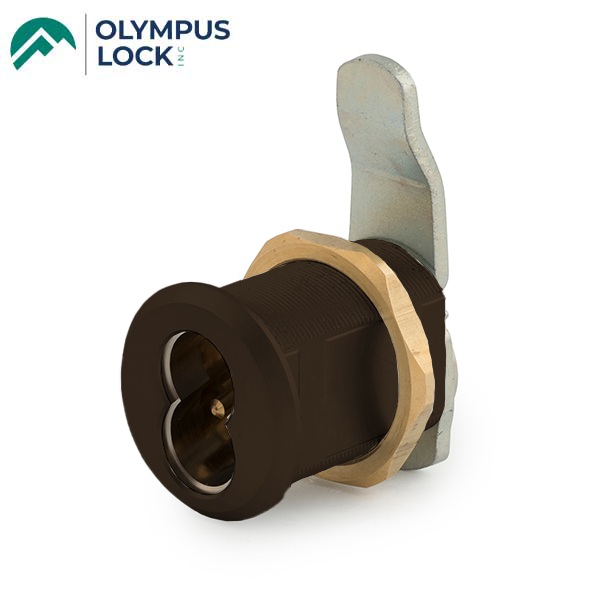

Olympus - 720 - SFIC Cam Lock - Less Core - Cylinder Diameter 1-1/8" - Optional Finishes

Olympus - 720 - SFIC Cam Lock - Less Core - Cylinder Diameter 1-1/8" - Optional Finishes

In stock
SKU OLY-720LM/DM-26D NSID 6321
$40.07$48.08On Sale You save $8.01 (17%)
Get it shipped Today! Order within:
Finish

OLY-720LM/DMXXXX

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

  • Cam lock - SFIC
  • Accepts Best, Arrow, Falcon or equivalent 6 or 7 pin small format interchangeable core cylinders
  • Similar to Best original 1E series
  • Works with BEST brand original cams
  • Includes all parts for key-retaining or non-key-retaining function
  • Max. material thickness: 1-1/8"
  • Min. material thickness: 0.08"
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Function: Cam lock
Retrofits: Best 1E7E4
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07261/E07271
Cylinder diameter: 1-1/8”
Max. material thickness: 1-1/8”
Min. material thickness: 0.08”
Across flats: 7/8”
Functions:  Includes parts for key-retaining or non-key-retaining function
Body: Zinc die cast
Finish: Satin Chrome, Satin Brass, Polished Chrome, or Polished Brass
Cores: Not included.
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders
Includes: 725-PA plastic thumbturn
720-PL3 stabilizer plate
725-1 spacer to fit 6 or 7 pin cores
720-3-1 short inverted cam
720-3-2 long vertical cam
720-CDLM lost motion cam shifter
720-CDDM key retaining door cam shifter
720-KR key retaining drawer cam shifter
