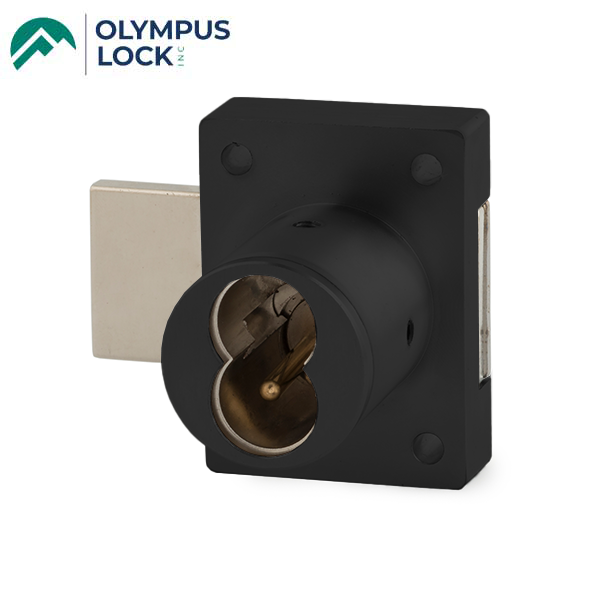

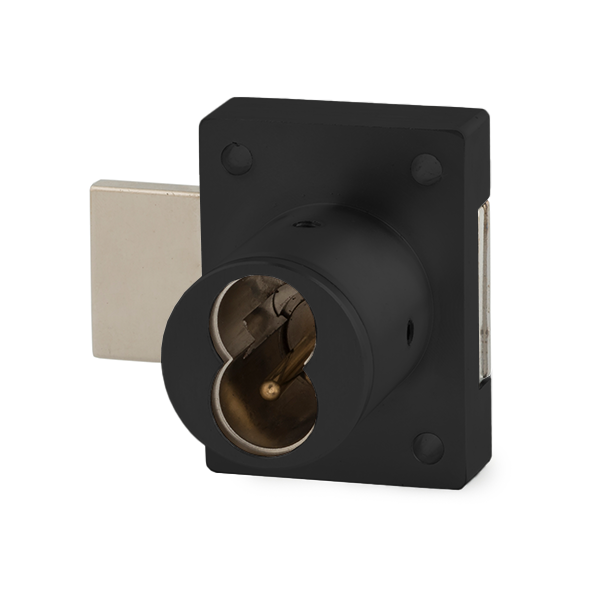

Olympus - 721DR - IC Core Deadbolt Cabinet Door Lock - BEST SFIC - 1-1/4" Cylinder Length - Flat Black - Optional Key Retaining - Optional High Security - Grade 1
- Product SKU: OLY-721DR-US19
- NSID:
-
OLY-721DR-US19XXXX (Regular Bolt)
Interchangeable Core Best Compatible (Small Format) Cabinet Door Deadbolt Lock
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- 721DR deadbolt door lock
- Optional key retaining and high security features
- Field reversible - includes all parts necessary to convert to a drawer lock
- Similar to Best original 3L series
- (E07121) ANSI/BHMA Grade 1
- Accepts Best, Arrow, Falcon or equivalent small format interchangeable core cylinders.
- Standard function: locks are non-handed with key removable in the locked and unlocked position.
- 721DR deadbolt door lock
More Information Below
SPECIFICATIONS
| Function | Deadbolt cabinet door lock |
| Reversible | Field reversible between door and drawer functions |
| Retrofits | Best 3L |
| High Security Option | For Sargent XC or Marks high security cores. Includes short pin prong driver 721DW-11-SP1 |
| Standard function: |
Key removable in locked or unlocked position. Standard locks are non-handed Key removable in locked position only with key retaining option |
| Body | Zinc die cast |
| Barrel Diameter | 1-1/8” |
| Cylinder length |
1-1/4" |
| Finish | Flat Black |
| Cores | Not Included |
| Accepts | Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores |
| Compatible electronic cylinders | Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders |
| Includes | - 725-1 spacer to fit 6 or 7 pin cores - 725-PA plastic thumbturn - 10-350 (qty 3) plastic spacers - 10-054 1/4” plastic bar strike - 10-057 .65” plastic bar strike |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1b performance requirements |
