*Discontinued* Olympus - 721DR - IC Core Deadbolt Cabinet Door Lock - BEST SFIC - 1-1/4" Cylinder Length - Polished Brass - Optional Key Retaining - Optional High Security - Grade 1

*Discontinued* Olympus - 721DR - IC Core Deadbolt Cabinet Door Lock - BEST SFIC - 1-1/4" Cylinder Length - Polished Brass - Optional Key Retaining - Optional High Security - Grade 1

Discontinued
SKU OLY-721DR-US3 NSID 34731
$46.24$55.49On Sale You save $9.25 (17%)
Key Retaining
High Security

OLY-721DR-US3XXXX (Regular Bolt)

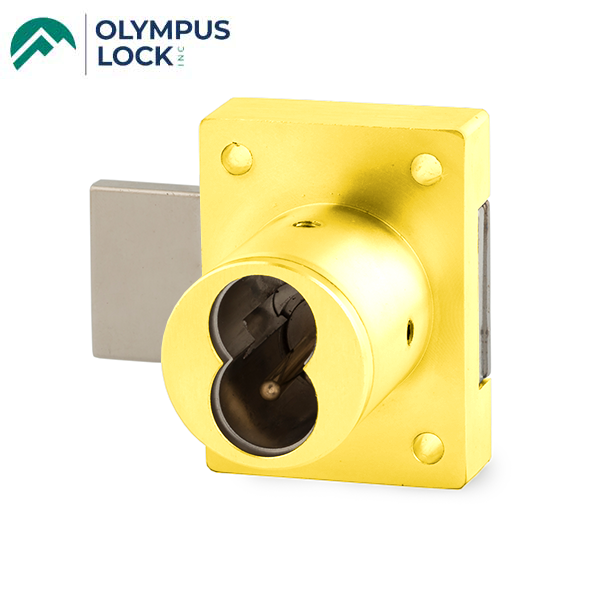

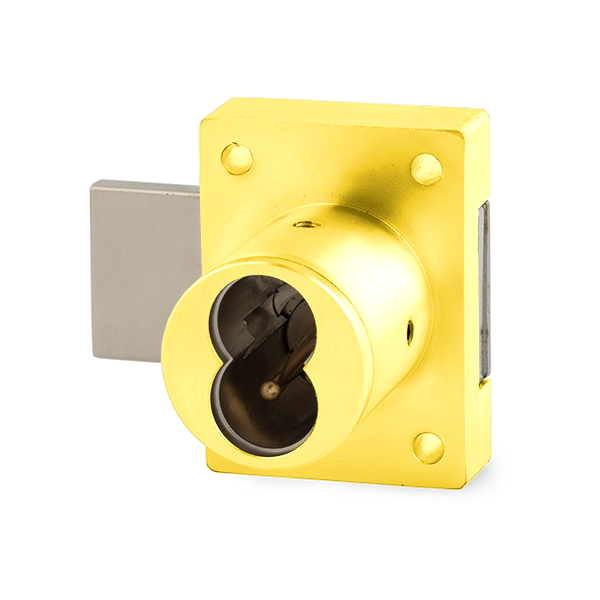

Interchangeable Core Best Compatible (Small Format) Cabinet Door Deadbolt Lock

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

  • 721DR deadbolt door lock
  • Optional key retaining and high security features
  • Field reversible - includes all parts necessary to convert to a drawer lock
  • Similar to Best original 3L series
  • (E07121) ANSI/BHMA Grade 1
  • Accepts Best, Arrow, Falcon or equivalent small format interchangeable core cylinders.
  • Standard function: locks are non-handed with key removable in the locked and unlocked position.
View full details

Details


More Information Below


SPECIFICATIONS

Function Deadbolt cabinet door lock
Reversible Field reversible between door and drawer functions
Retrofits Best 3L
High Security For Sargent XC or Marks high security cores. Includes short pin prong driver 721DW-11-SP1
Standard function:

Key removable in locked or unlocked position. Standard locks are non-handed

Key removable in locked position only with key retaining option
Body Zinc die cast
Barrel Diameter 1-1/8”
Cylinder length
1-1/4"
Finish Polished Brass
Cores Not Included
Accepts Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
Compatible electronic cylinders Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders
Includes - 725-1 spacer to fit 6 or 7 pin cores
- 725-PA plastic thumbturn
- 10-350 (qty 3) plastic spacers
- 10-054 1/4” plastic bar strike
- 10-057 .65” plastic bar strike
Certifications Passed ANSI/BHMA A156.11 Grade 1b performance requirements
