Details
SPECIFICATIONS

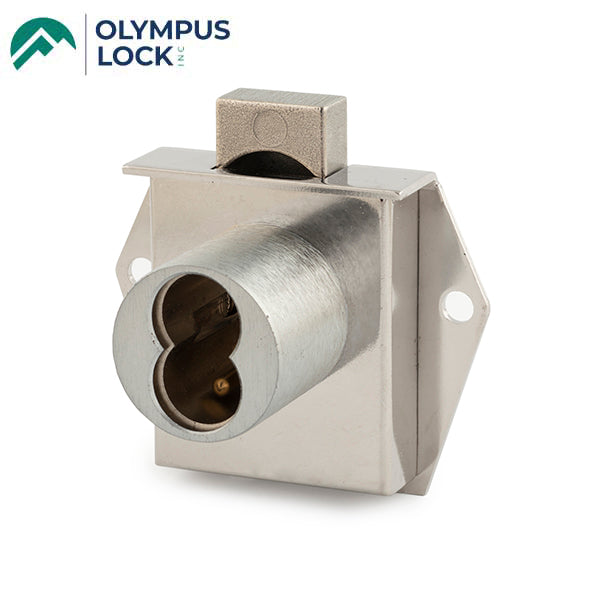

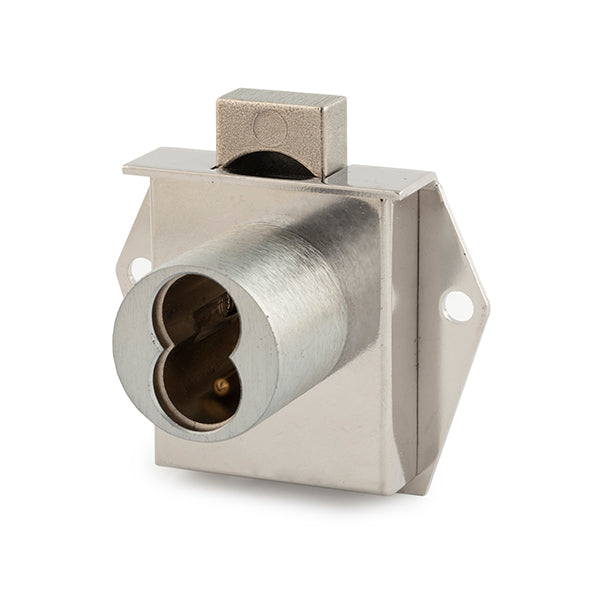

| Function | Deadbolt Drawer lock |
| Bolt | Standard Bolt Length |
| Retrofits | Best 5L |
| Functions |
Key removable in locked or unlocked position. Key removable in locked position only with key retaining option |
| Body | Zinc die cast |
| Barrel Diameter | 1-1/8” |
| Cylinder length |
1-1/16" |
| Finish | Satin Chrome |
| Cores | Not Included |
| Accepts |
- Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores - 6 or 7 pin SFIC cores. |
| Compatible electronic cylinders | Nexgen XT or VIDEX CyberLock SFIC cylinders |
| Includes |
725-1 spacer to fit 6 or 7 pin cores 725-SP-MD slotted rectangular strike 725-PA plastic thumbturn |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1b performance requirements |
