*Discontinued* Olympus - 725RD - SFIC Rim Deadbolt Door & Drawer Cabinet Lock - BEST SFIC - 1-1/16" Cylinder Length - Polished Brass - Optional Handing - Optional Key Retaining - Grade 1

*Discontinued* Olympus - 725RD - SFIC Rim Deadbolt Door & Drawer Cabinet Lock - BEST SFIC - 1-1/16" Cylinder Length - Polished Brass - Optional Handing - Optional Key Retaining - Grade 1

Discontinued
SKU OLY-725RD-DR-LH-US3 NSID 34852
$41.09$49.31On Sale You save $8.22 (17%)
Handing
Key Retaining

OLY-725RD-DRXXXX

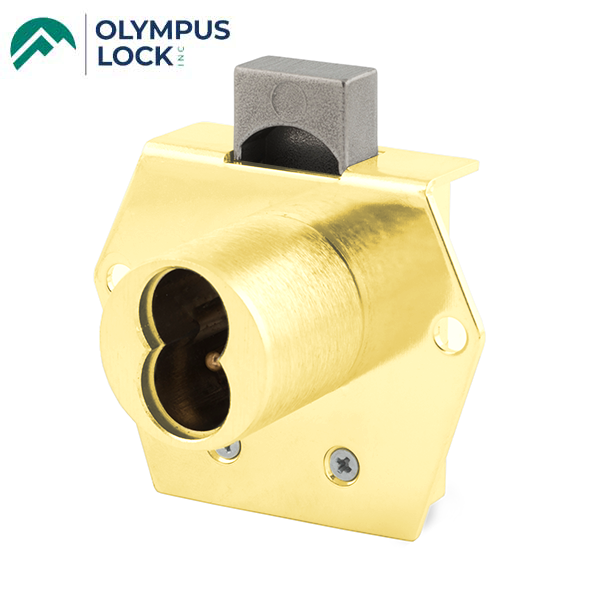

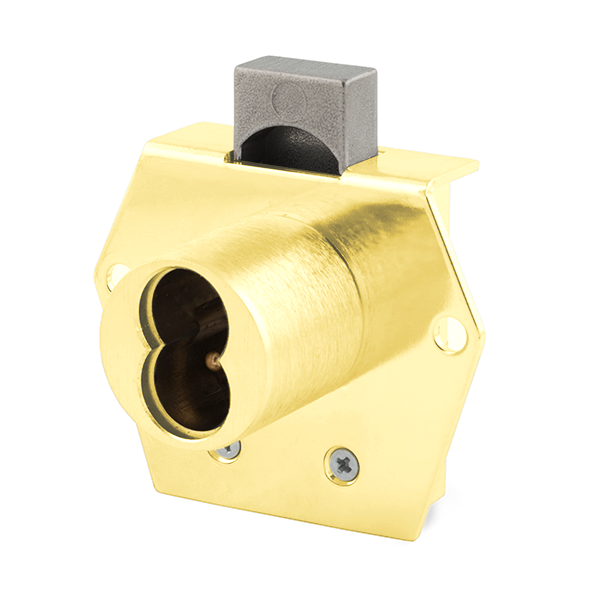

SFIC: Rim Deadbolt Door & Drawer Cabinet Lock

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

  • Cabinet lock, Rim - surface mount
  • Deadbolt locking mechanism
  • Retrofits Best 5L series cabinet locks
  • Key retaining function available for DW-VH function. See handing chart.
  • Accepts Best, Arrow or equivalent small format interchangeable core cylinders
  • Accepts 6 or 7 pin SFIC cores. See our SFIC compatible cylinders
  • Barrel diameter: 1-1/8"
  • Standard barrel length: 1-1/16"
View full details

Details

SPECIFICATIONS

Retrofits Best 5L7RD
Function Rim (surface) mounted deadbolt
Handing Available for doors or drawers
Testing Passed ANSI/BHMA A156.11 Grade 1
performance requirements.
Barrel diameter 1-1/8”
Cylinder length
1-1/16”
Finish Polished Brass US3
Cores Not included
Accepts

Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores

Compatible electronic cylinders Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders.
Included Accessories

725-1 spacer to fit 6 or 7 pin cores
725-SP-RD solid rectangular strike
725-PA plastic thumbturn




Downloads
