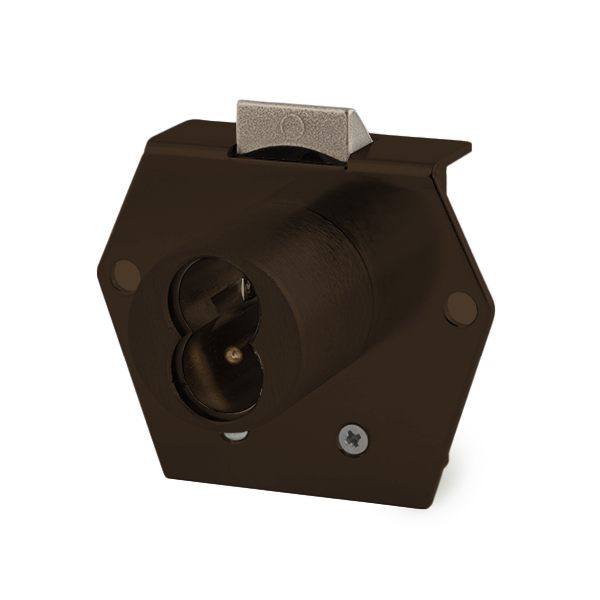

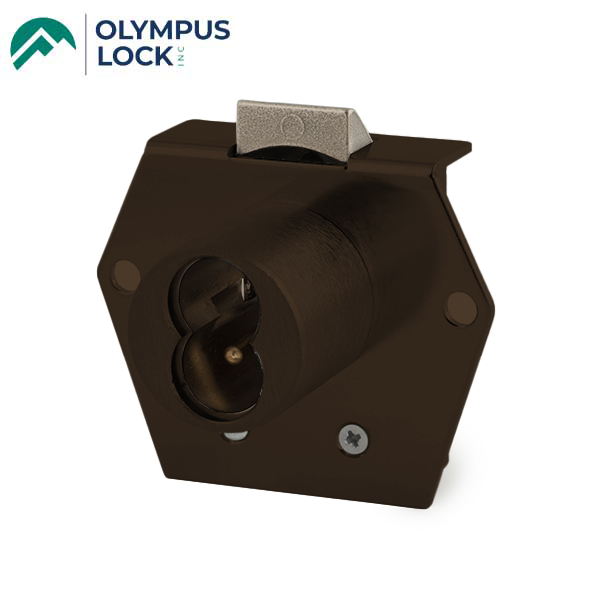

*Discontinued* Olympus - 725RL - SFIC Rim Latch Door & Drawer Cabinet Lock - BEST SFIC - 1-1/16"" to Cylinder Length - Oil Rubbed Bronze - Optional Handing - Grade 1
- $51.51
-
$61.81 - $51.51
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-725RL-DRXXXX
Interchangeable Core Best Compatible (Small Format) Cabinet Door Deadbolt Lock
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cabinet lock, Rim - Surface mount
- Latch bolt locking mechanism
- Retrofits Best 5L series cabinet locks
- ANSI/BHMA E07091 (cabinet door)
- ANSI/BHMA E07061 (drawer)
- Accepts Best, Arrow, Falcon or equivalent small format interchangeable core cylinders
- Accepts 6 or 7 pin SFIC cores. See our SFIC compatible cylinders
- Barrel diameter: 1-1/8"
- Standard barrel length: 1-1/16"
- $51.51
-
$61.81 - $51.51
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
SPECIFICATIONS
| Retrofits | Best 5L7RL |
| Function | Rim (surface) mounted latch |
| Handing | Available for doors or drawers |
| Testing | Passed ANSI/BHMA A156.11 Grade 1 performance requirements |
| Barrel diameter | 1-1/8” |
| Cylinder length |
1-1/16” |
| Finish | Oil Rubbed Bronze 10B |
| Cores | Not included |
| Accepts |
Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores |
| Compatible electronic cylinders | Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders. |
| Included Accessories |
725-1 spacer to fit 6 or 7 pin cores |
