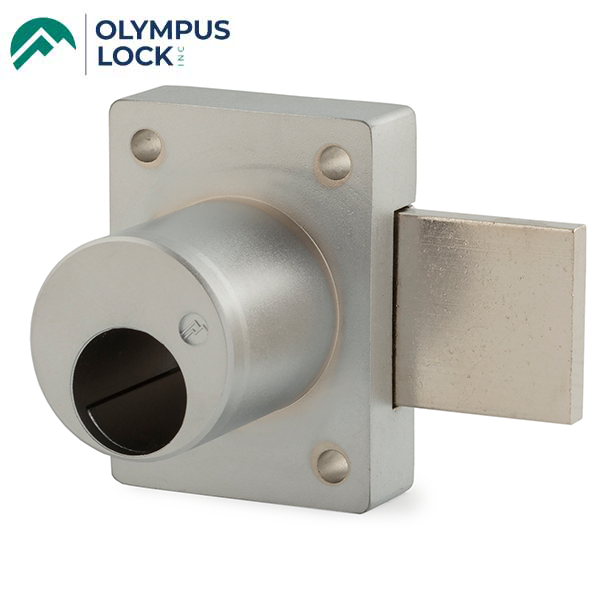

Olympus - 754LC - Deadbolt Door & Drawer Cabinet Locks for Sargent Original Cylinders - Less Cylinder - 1-3/8" Cylinder Length - Satin Chrome - Grade 1
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $31.73
-
$49.37 - $31.73
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Deadbolt Door & Drawer Cabinet Locks for Sargent Original Cylinders
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cabinet lock - deadbolt door lock
- Easily rekeyable via cylinder release mechanism
- Accepts Sargent C480-2 (13-3457) 6-pin deadbolt cylinder
- ANSI/BHMA No. E07121/E07122
- Barrel length: 1-3/8"
- Barrel diameter: 1-1/8"
- Includes notched strike 10-056
SPECIFICATIONS
| Keyway | LC Series, less cylinder locks accept Sargent deadbolt-style 6-pin cylinder C480-2 (13-3457) |
| Rekeyable | Easily rekeyable via set-screw cylinder removal mechanism |
| Standard function | Key removable in locked or unlocked position (non-handed) |
| Body | Zinc die cast |
| Bolt |
Brass |
| Barrel diameter | 1-1/8” |
| Barrel length | 1-3/8” |
| Finish | Satin Chrome 26D |
| Includes | All parts to work with Sargent original cylinder (see cylinder information below) |
| Cylinder | Not included |
| Accepts | Sargent C480-2 (13-3457) 6-pin deadbolt cylinder |
