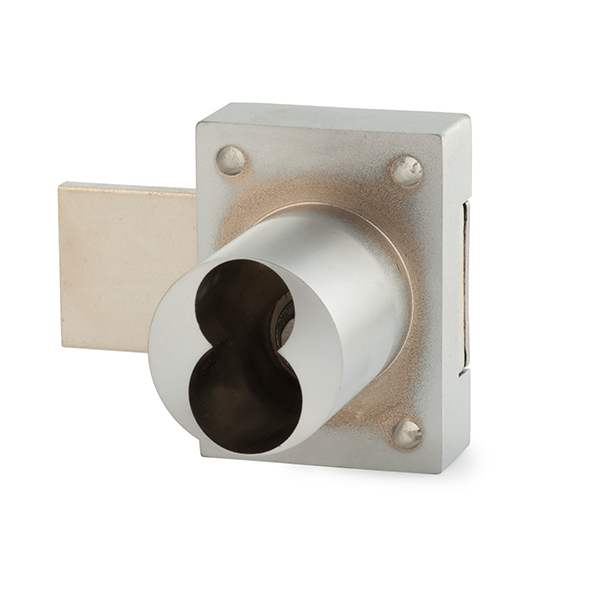

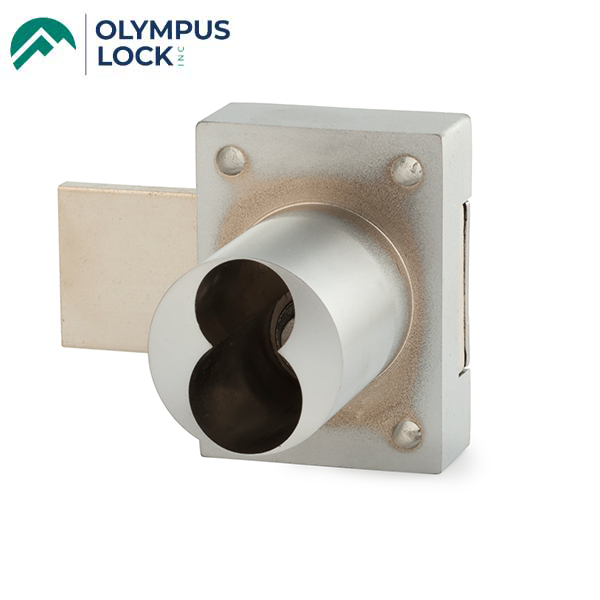

Olympus - 777 - IC Cabinet Door Deadbolt Lock - Less Cylinder - Standard/Classic or Primus/Everest - Satin Chrome - Optional Key Retaining - Grade 1

Olympus - 777 - IC Cabinet Door Deadbolt Lock - Less Cylinder - Standard/Classic or Primus/Everest - Satin Chrome - Optional Key Retaining - Grade 1

In stock
SKU OLY-777ICP-DR-26D NSID 6357
$68.78$82.54On Sale You save $13.76 (17%)
Get it shipped Today! Order within:
Key Retaining

OLY-777-DR-26DXXXX (Regular Bolt)

Schlage large format/full-size IC less cylinder cabinet door lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • Cabinet lock - deadbolt door lock
  • Accepts Schlage standard or Primus/Everest large format (full size) interchangeable core cylinders
  • Standard function: locks are non-handed with key removable in the locked and unlocked position
  • Optional key-retaining function
  • (E07121) ANSI/BHMA Grade 1
  • Barrel diameter: 1-1/8"
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

ANSI/BHMA Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121 (777ICP) / E07041 (888ICP)
Body Zinc die cast
Cylinder length
 1-7/16"
Barrel diameter 1-1/8"
Cylinder Not included
Finish Satin Chrome
Key retaining

Key retaining options:
- Standard no key retaining Primus/Everest or Standard/Classic compatible
- Key retaining Standard/Classic core compatible only
- Key retaining Primus/Everest core compatible only
Accepts Schlage large format/full-size IC cylinders
- Schlage Quad, Numbered Section, and Schlage Classic IC cores
- Schlage Primus® and Everest large format IC cores
- Mul-T-Lock large format IC cores
Compatible electronic cylinders VIDEX CyberLock LFIC cylinders
Included accessories
 - 7788-PA-D actuator to operate lock without core
- 10-350 plastic spacers (qty 3)
- 10-054 1/4" plastic bar strike
- 10-055 1/2" plastic bar strike
