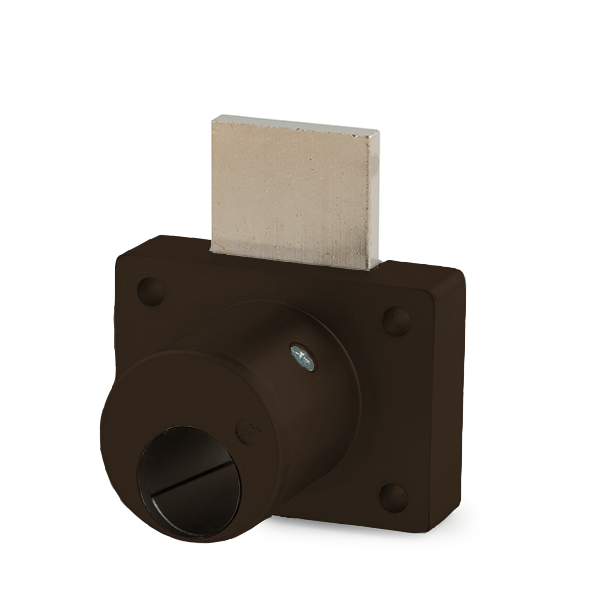

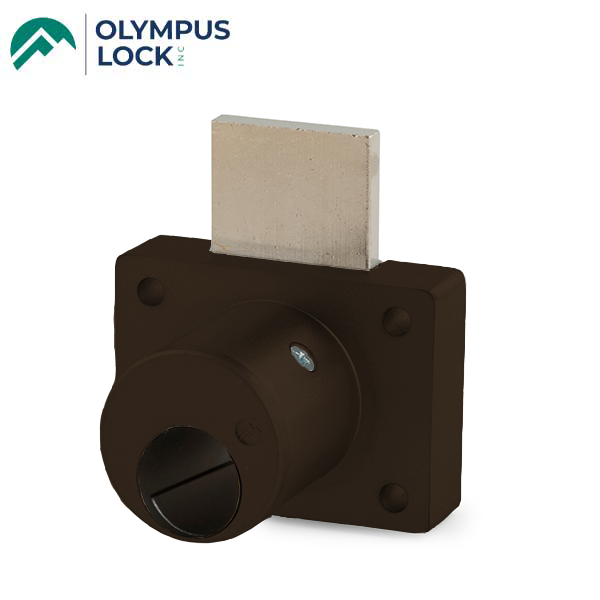

*Discontinued* Olympus - 800LC - Cabinet Drawer Deadbolt Lock - Less Cylinder - Schlage Cylinder Compatible - Optional Cylinder Length - Oil Rubbed Bronze - Grade 1

*Discontinued* Olympus - 800LC - Cabinet Drawer Deadbolt Lock - Less Cylinder - Schlage Cylinder Compatible - Optional Cylinder Length - Oil Rubbed Bronze - Grade 1

Discontinued
SKU OLY-800LCA-10B NSID 34995
$53.78$64.54On Sale You save $10.76 (17%)
Cylinder Length

OLY-800LC-10BXXXX (Regular Bolt)

S Series Schlage C Keyway Door Deadbolt Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • Will accept other manufacturer's Schlage compatible deadbolt cylinders
  • Cabinet door deadbolt lock
  • Passed ANSI/BHMA A156.11 Grade 1 performance requirements
  • Cylinder length: Optional 1-1/8" or 1-3/8"
  • Barrel diameter: 1-1/8"
View full details

Details

Specifications:

Function Deadbolt drawer lock less cylinder
Cylinder Will accept other manufacturer's Schlage compatible deadbolt cylinders
Cylinder Length
 Optional 1-1/8" or 1-3/8"
Barrel Diameter 1-1/8"
Body Zinc Die Cast
Finish Oil Rubbed Bronze
Includes For 1-1/8"barrel length locks:
- 10-350 plastic spacers (qty 2)
- 10-054 1/4" plastic bar strike
- 10-055 1/2" plastic bar strike
- 10-361 tailpiece/driver bar
- 10-360 universal driver, and 1 tailpiece for use with Schlage compatible cylinders
For 1-3/8"barrel length locks:
- 10-054 1/4" plastic bar strike
- 10-360 universal driver, and 3 tailpieces for use with Schlage (10-362) compatible, Medeco (10-363) or Assa (10-364) cylinders
Certifications Passed ANSI/BHMA A156.11 Grade 1
performance requirements. Equivalent to
E07121 (700S) / E07041 (800S).
