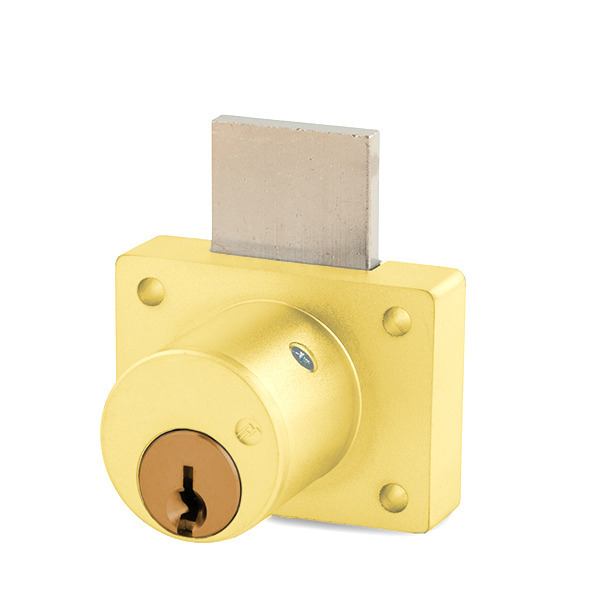

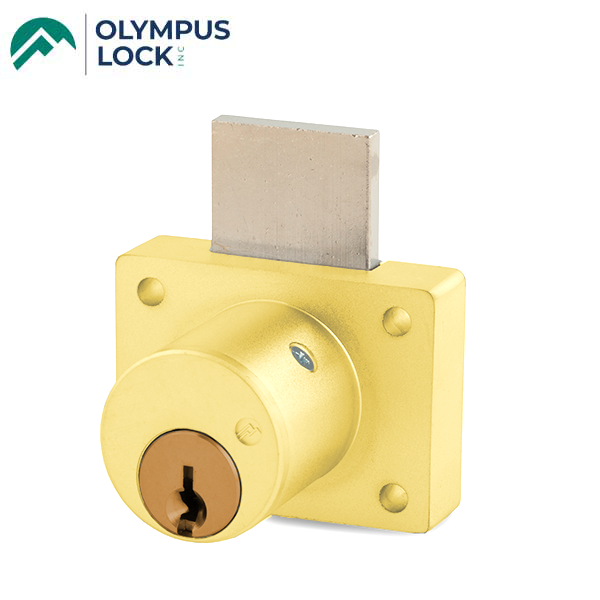

Olympus - 800S - Cabinet Drawer Deadbolt Lock - Key Retaining - S Series Schlage C Keyway - Optional Cylinder Length - Polished Brass - Optional Keying - Optional Handing - Grade 1
Available to Order
SKU:
OLY-800KIUS3-101-KA
NSID:
34962
34963
34969
34987
34988
34994
34964
34965
34967
34989
34990
34992
- $57.19
-
$61.66 - $57.19
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-800KIUS3XXXX (Regular Bolt)
S Series Schlage C Keyway Door Deadbolt Lock.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- S Series Schlage C Keyway
- Cabinet drawer deadbolt lock
- Key retaining
- Easily rekeyable via set screw cylinder release mechanism
- Passed ANSI/BHMA A156.11 Grade 1 performance requirements
- Cylinder length: Optional 1-1/8" or 1-3/8"
- Barrel diameter: 1-1/8"
Specifications:
| Function | Deadbolt drawer lock key retaining |
| Cylinder | S Series: Schlage C Keyway Deadbolt |
| Keyed Alike | KA 101,102 |
| Cylinder Length |
Optional 1-1/8" or 1-3/8" |
| Barrel Diameter | 1-1/8" |
| Handing |
Inverted or Vertical option |
| Function | Key removable in locked position only |
| Body | Zinc Die Cast |
| Finish | Oil Rubbed Bronze |
| Includes |
For 1-1/8"barrel length locks: - 10-350 plastic spacers (qty 2) - 10-054 1/4" plastic bar strike - 10-055 1/2" plastic bar strike For 1-3/8"barrel length locks: - 10-054 1/4" plastic bar strike |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121 (700S) / E07041 (800S). |
