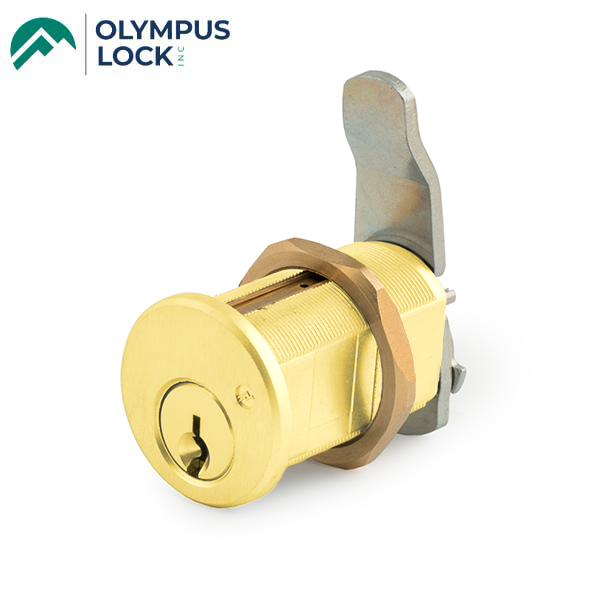

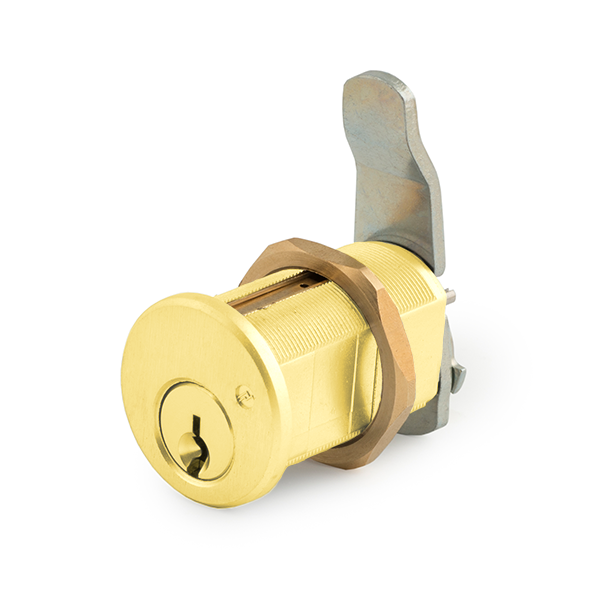

Olympus - 820S - S Series: Schlage C Keyway Cam Lock - 7/8" Cylinder Diameter - Polished Brass - Grade 1

Olympus - 820S - S Series: Schlage C Keyway Cam Lock - 7/8" Cylinder Diameter - Polished Brass - Grade 1

Available to order
SKU OLY-820S-US3-101-KA NSID 35041
$55.34$66.41On Sale You save $11.07 (17%)
Please Note: This product ships within 7 Days
Keying

OLY-820S-US3XXXX

LC Series: Less Cylinder Cam Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • Cam lock
  • Easily rekeyable via rear set screws
  • Will accept other manufacturer's Schlage compatible deadbolt cylinders
  • ANSI/BHMA: E07261
  • Cylinder diameter: 1-1/8
  • Across flats: 7/8"
  • Mounting cutout: 1-5/32"
  • Max. material thickness: 1-3/8"
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Rekeyable Easily rekeyable via set screw on back
of lock body
Cylinder diameter 1-1/8"
Across flats
 7/8"
Max. material thickness 1-3/8"
Min. material thickness 0.08"
Body Zinc die cast
Functions Includes parts for key-retaining or nonkey-retaining
Finish Polished Brass
Cylinder Solid brass, pin tumbler
Keying - 101 Keyed Alike
- 102 Keyed Alike
- O-Bit Keyed Alike
- Keyed Different
Includes - 720-PL3 anti-rotation plate
- 720-3-1 short inverted cam
- 720-3-2 long vertical cam
- 720-CDLM lost motion cam shifter
- 720-CDDM key retaining door cam shifter
- 720-KR key retaining drawer cam shifter
