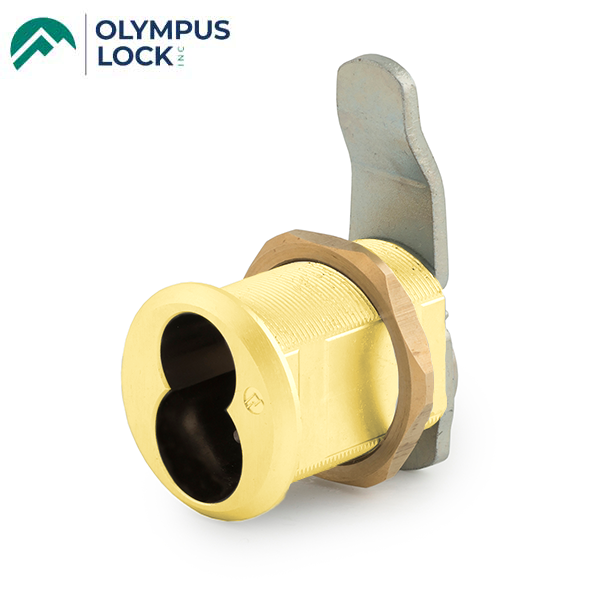

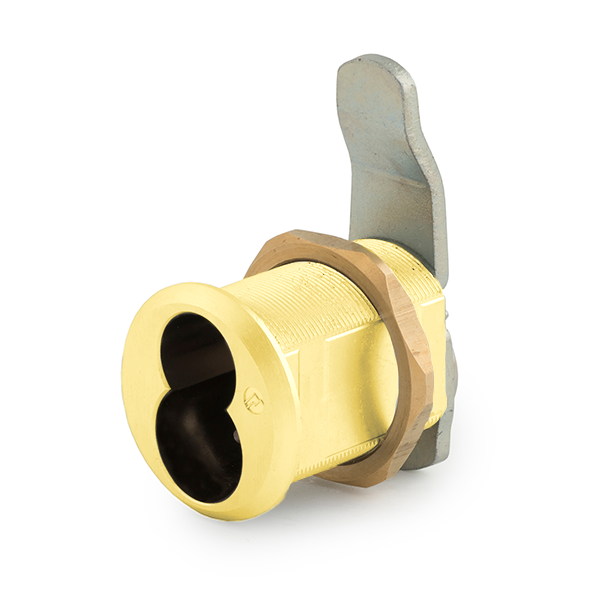

*Discontinued* Olympus - 920 - Less Cylinder Cam Lock - Full Size IC - Schlage Compatible - Polished Brass - Grade 1
Out of Stock
SKU:
OLY-920LM/DM-US3
NSID:
35084
- $46.45
-
$55.74 - $46.45
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-920LM/DM-US3
LC Series: Less Cylinder Cam Lock Full Size IC.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cam lock
- Accepts Schlage standard or Primus/Everest large format interchangeable core cylinders
- ANSI/BHMA: E07261
- Cylinder diameter: 1-1/8"
- Across flats: 7/8"
- Mounting cutout: 1-5/32"
- Max. material thickness: 1-5/16"
- Min. material thickness: 0.08"
- $46.45
-
$55.74 - $46.45
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| ANSI/BHMA | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07261/E07271 |
| Cylinder diameter | 1-1/8" |
| Across flats |
7/8" |
| Max. material thickness | 1-3/16" |
| Min. material thickness | 0.08" |
| Functions | Includes parts for key-retaining or nonkey-retaining function |
| Body | Zinc die cast |
| Finish | Polished Brass US3 |
| Cylinder | Not included |
| Accepts | Schlage large format/full-size IC cylinders - Schlage Quad, Numbered Section, and Schlage Classic IC cores - Schlage Primus® and Everest large format IC cores - Mul-T-Lock large format IC cores |
| Compatible electronic cylinders |
VIDEX CyberLock LFIC cylinders |
| Included Accessories | 7788-PA-D actuator to operate lock without core 720-PL3 anti-rotation plate 720-3-1 short inverted cam 720-3-2 long vertical cam 720-CDLM lost motion cam shifter 720-CDDM key retaining door cam shifter 720-KR key retaining drawer cam shifter |
Downloads:
