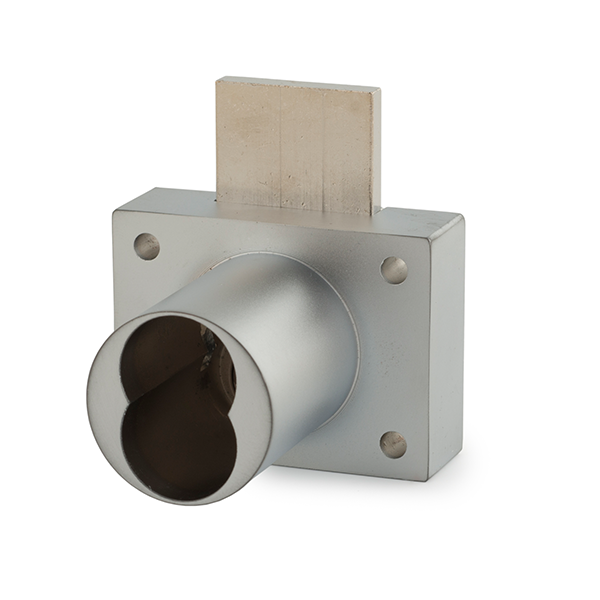

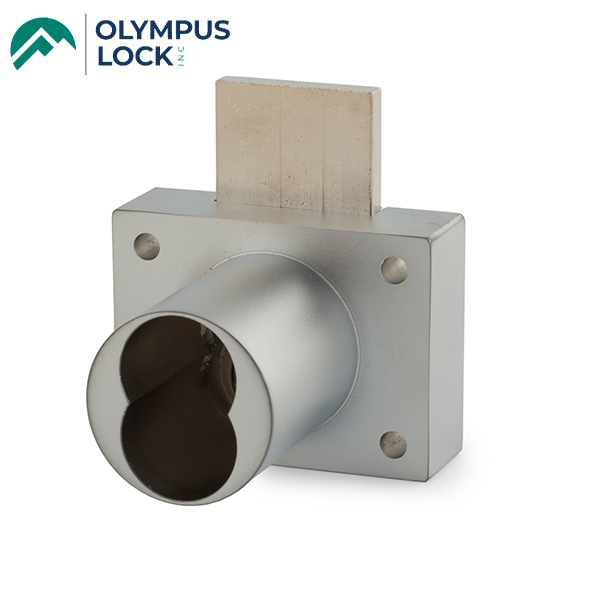

*Discontinued* Olympus - 931DW - Cabinet Deadbolt Drawer Lock - IC: For Medeco or Yale Large-Format Cores - Less Cylinder - Satin Chrome - Optional Key Retaining - Grade 1

*Discontinued* Olympus - 931DW - Cabinet Deadbolt Drawer Lock - IC: For Medeco or Yale Large-Format Cores - Less Cylinder - Satin Chrome - Optional Key Retaining - Grade 1

Discontinued
SKU OLY-931DW-26D NSID 35093
$58.21$69.85On Sale You save $11.64 (17%)
Key Retaining

OLY-931DW-26DXXXX (Regular Bolt)

IC: For Medeco or Yale Large-Format Cores.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • Cabinet lock - deadbolt drawer lock
  • Accepts Medeco/Yale IC core
  • Standard function: locks are non-handed with key removable in the locked and unlocked position
  • Optional key-retaining* function: for part-numbers and handing see key retaining chart
  • Barrel diameter: 1-1/8"
  • Barrel length 1-3/8"
View full details

Details

Specifications:

Standard function Key removable in locked and unlocked position.
Key-retaining function Key removable in locked position only. Specify -KR for key retaining.
Cylinder length
 1-3/8"
Barrel diameter 1-1/8"
Body Zinc die cast
Finish Satin Chrome 26D
Cylinder

Not included
Medeco cylinder Accepts Medeco #32-0201 (6-pin) IC cylinder and Medeco #31-0100 (6-pin) Yale IC compatible cylinder
Yale cylinder Accepts Yale 1210 Series (6-pin) IC core cylinder
ASSA cylinder
 Accepts ASSA's 6-pin, Yalecompatible large format IC cylinder
Special note Medeco "Keymark" cylinders require Best compatible (small format) cabinet lock bodies
Included Accessories 931-PA plastic thumbturn
931-1 spacer for 6-pin Medeco cores
10-350 plastic spacers (qty 3)
10-054 1/4" plastic bar strike
10-055 1/2" plastic bar strike
