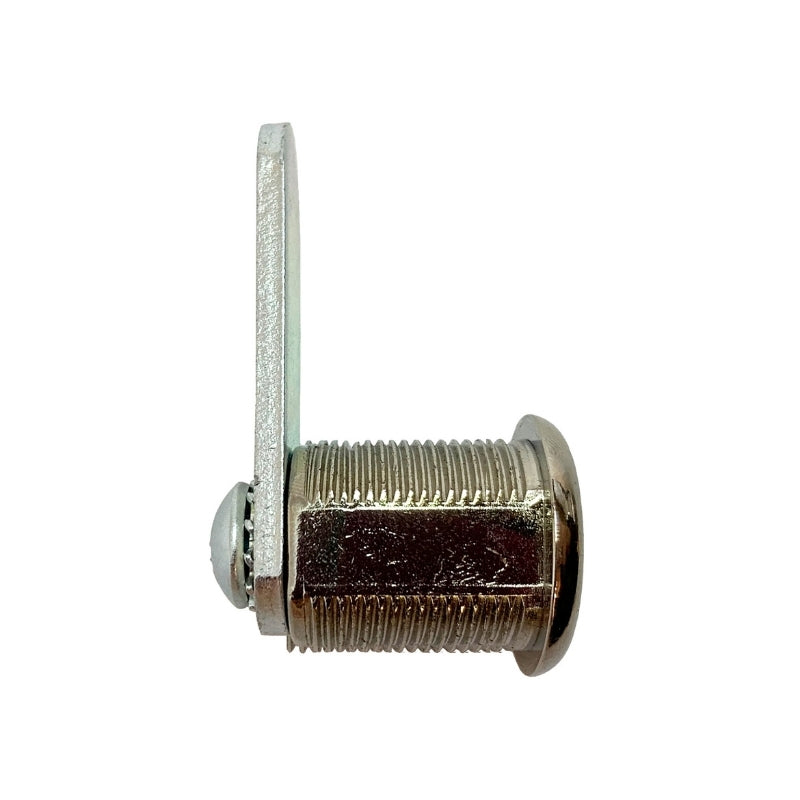

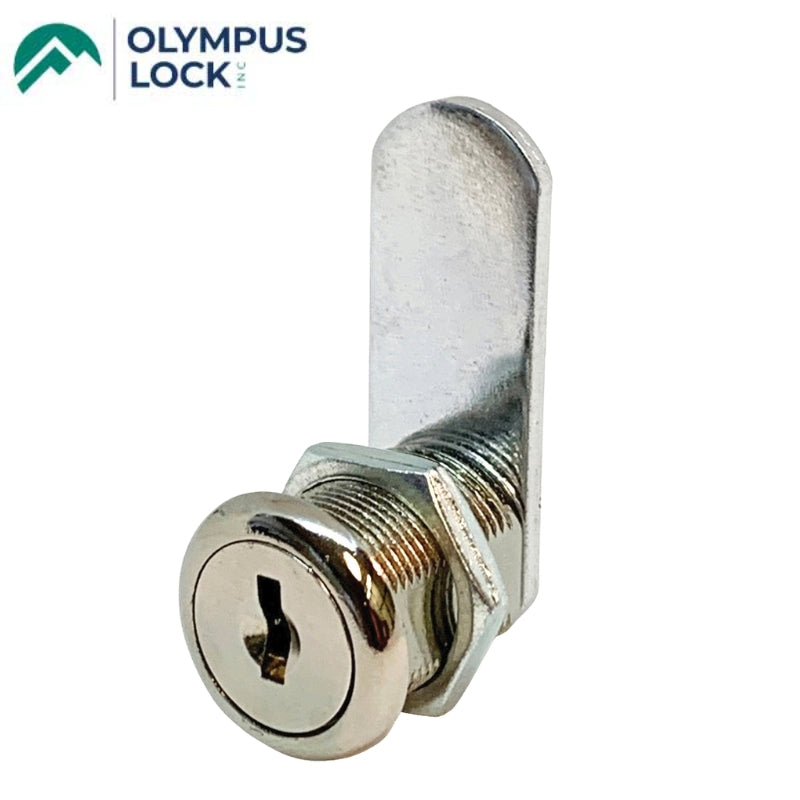

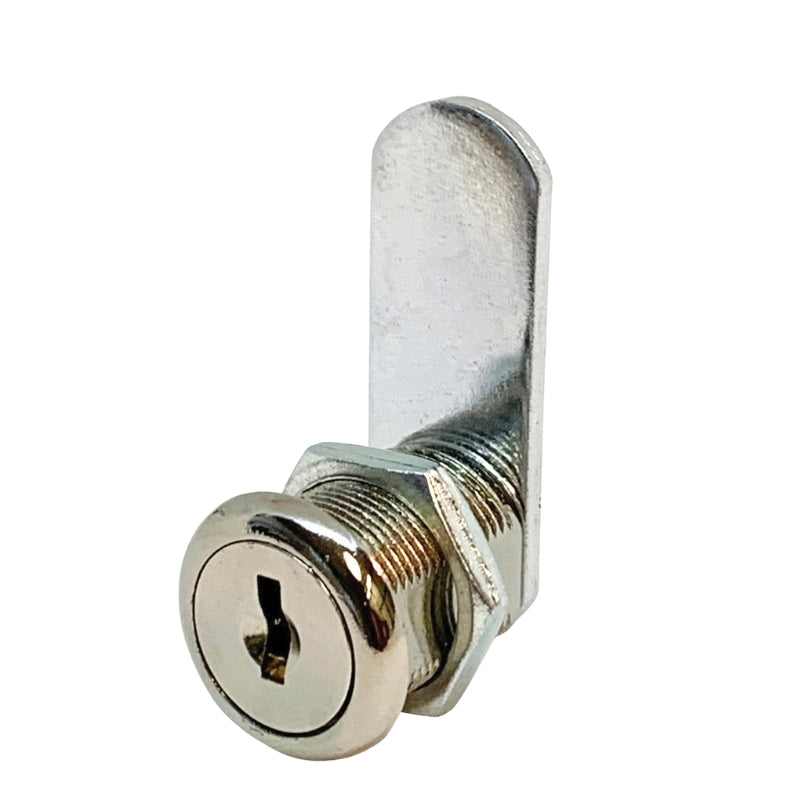

Olympus - 952 Series - 5/8" Cylinder Length Disc Tumbler Cam Lock - Polished Nickel Finish
Available to Order
SKU:
OLY-952-14A-C415A
NSID:
78760
- $10.00
-
$12.37 - $10.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Olympus 952 Series 5/8″ Cylinder Length Disc‑Tumbler Cam Lock in polished nickel and keyed alike #C415A is part of Olympus’s Cascade Series. This high‑accuracy cabinet and drawer lock provides secure and flexible operation for commercial and institutional installations. It features a 5‑disc tumbler system compatible with CompX/National C8053 keyways, with superior reliability and ANSI/BHMA Grade 2 cycle-tested durability.
Features:
- Secure Keying - 5-disc tumbler keyed alike #C415A, compatible with common national keyways
- Durable & Reliable - ANSI/BHMA Grade 2 rated, 20,000+ cycle life
- Easy Installation - Ships with body and cylinder assembled, flush/lipped mounting with standard ¾″ hole
- Versatile Function - Cam rotates 90°, key removable, both locked/unlocked
- Mounting Hardware Included - Comes with cams, trim ring, spur washer, fixing hardware
| Specifications | |
|---|---|
| Model | OLY-952-14A-C415A |
| Series | 952 Cascade Series |
| Cylinder Length | 5/8" (15.9 mm) |
| Material Thickness Fitment | Up to 15/64" (6 mm) |
| Keying | 5-disc tumbler, Keyed Alike #C415A |
| Key Compatibility | CompX/National C8053 keyway compatible |
| Cam Rotation | 90°, key removable in locked and unlocked positions |
| Body Construction | Zinc die-cast housing |
| Mounting Hole Diameter | 3/4" (standard) |
| Finish | Polished Nickel (14A) |
| Cycle Test Rating | 20,000 cycles (ANSI/BHMA A156.11 Grade 2) |
| Included Accessories | Straight cam, offset cam, eyelet spur washer, trim ring (P95-TR), fixing nut, screw, washer |
| Packaging | 15 per box, 120 per case |
| Weight | Approx. 0.15 lbs |
| Patent | US Patent D1016604 |
| UPC | 810095825521 |
