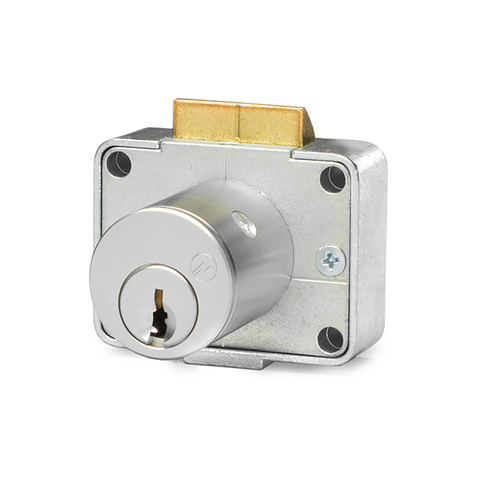

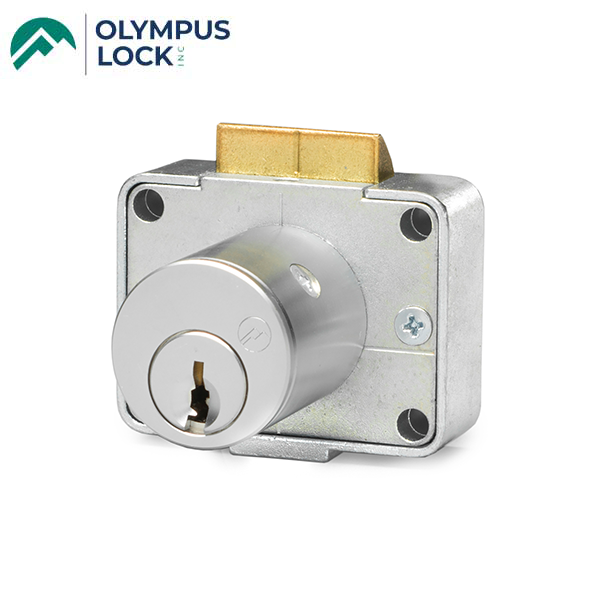

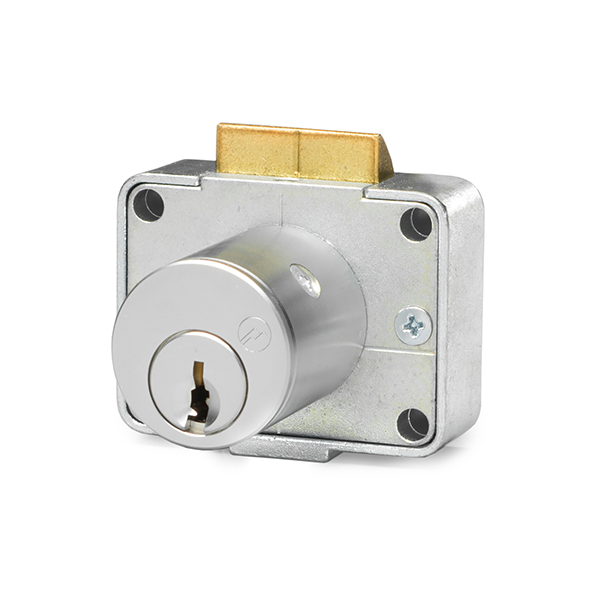

Olympus - 996 - Drawer Latch Lock - Optional Cylinder Length - Satin Chrome - Optional Handing - Optional Keying
- Product SKU: OLY-996I26D78-4T2-KA
- NSID:
-
OLY-99626DXXXX
Deadlatch Drawer Lock R: Series.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:- Cabinet lock - drawer latch lock
- Field reversible into all 4 handings
- Easily rekeyable via set screw cylinder release mechanism
- Pin tumbler cylinder drilled for 5 pins
- Barrel lengths: 1" or 1-3/8"
- Barrel diameter: 7/8"
- Locks are handed at the factory, specify vertical or inverted when ordering. See handing chart.
- Includes matching strike (stamped brass) with alignment mark for easy installation 999-STRIKE
- Cabinet lock - drawer latch lock
Specifications:
| Function | Spring latch |
| Keying | Can be keyed together with other R Series locks |
| Reversible | Easily reversible between door and drawer function |
| Rekeyable | Easily rekeyable via set screw cylinder release mechanism |
| Body | Zinc die cast |
| Cylinder | Solid brass, pin tumbler |
| Barrel length | 15/16" or 1-3/8" |
| Barrel diameter | 7/8" |
| Latch projection | 1/4" |
| Finish | Satin Chrome 26D |
| Keyway | R Series (equivalent to CCL R1 system) |
| Keys | Includes 2 keys per lock |
| Included Accessories | Strike: 999-STRIKE (slotted lip strike) |
Downloads:
OLY-99626DXXXX
Deadlatch Drawer Lock R: Series.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cabinet lock - drawer latch lock
- Field reversible into all 4 handings
- Easily rekeyable via set screw cylinder release mechanism
- Pin tumbler cylinder drilled for 5 pins
- Barrel lengths: 1" or 1-3/8"
- Barrel diameter: 7/8"
- Locks are handed at the factory, specify vertical or inverted when ordering. See handing chart.
- Includes matching strike (stamped brass) with alignment mark for easy installation 999-STRIKE
Specifications:
| Function | Spring latch |
| Keying | Can be keyed together with other R Series locks |
| Reversible | Easily reversible between door and drawer function |
| Rekeyable | Easily rekeyable via set screw cylinder release mechanism |
| Body | Zinc die cast |
| Cylinder | Solid brass, pin tumbler |
| Barrel length | 15/16" or 1-3/8" |
| Barrel diameter | 7/8" |
| Latch projection | 1/4" |
| Finish | Satin Chrome 26D |
| Keyway | R Series (equivalent to CCL R1 system) |
| Keys | Includes 2 keys per lock |
| Included Accessories | Strike: 999-STRIKE (slotted lip strike) |
