Olympus - B7 - 3/4” Cam Lock With BEST Keyways - Satin Chrome - Optional Keyway - Optional Keying
- Product SKU: OLY-B7A-26D-CUST-KA
- NSID:
-
OLY-B7-26DXXXX

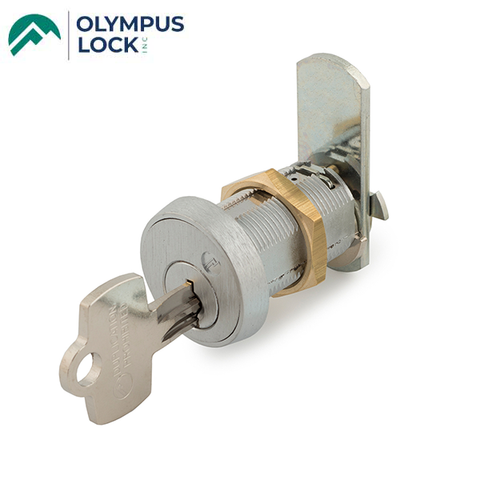

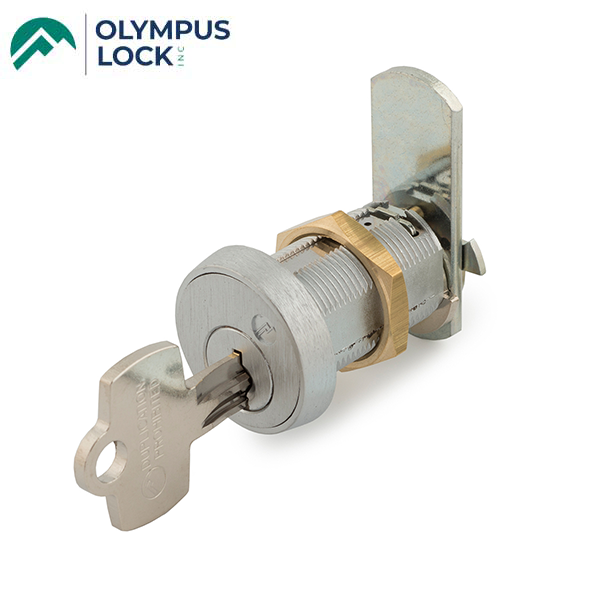

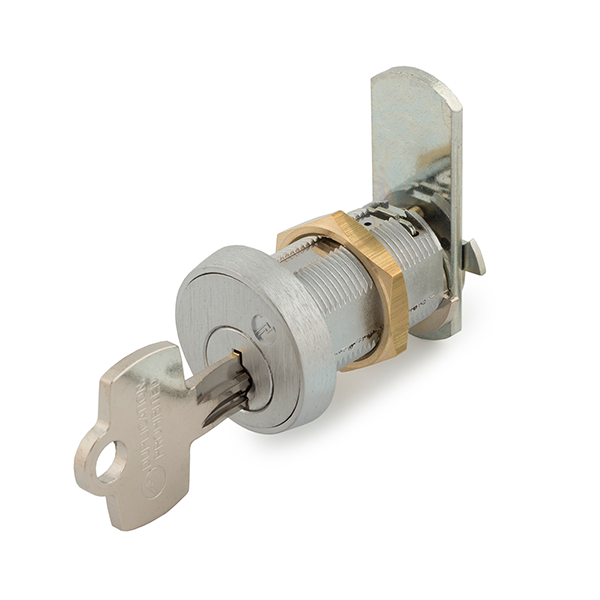

3/4” Cam Lock With BEST Keyways
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:- Cam lock - Best keyway, 3/4" diameter
- Easily rekeyable via cylinder retainer clip
- Retrofits BEST 5E Series
- Pin tumbler cylinder drilled for 7 pins
- ANSI/BHMA No. E07261
- 2 reversible cams work in all locking positions
- 26D finish
- Cylinder length: 1-1/8"
- Cam lock - Best keyway, 3/4" diameter
Specifications:
| Function | Cam lock |
| Rekeyable | Easily rekeyable via cylinder retainer clip |
| Retrofits | Best 5E |
| Usage | Commonly used as locking device on medical carts (see also our 724VR medical cart/file cabinet lock for use on medical carts) |
| Body | Zinc die cast |
| Cylinder | Zinc die cast pin tumbler, drilled for 7 pins |
| Standard function | Key removable in locked or unlocked position |
| Cams | 2 reversible cams work in all positions |
| Finish | Satin Chrome 26D |
| Keyways | A, B, E, F, G, J, K, L, R |
| Keys | Includes 2 keys per lock |
|
Included Accessories |
Trim collar Straight cam #DCNP-100-SC Offset cam #DCNP-100-BC Anti-rotation plate #DCNP-500-ARP |
Downloads:
OLY-B7-26DXXXX
3/4” Cam Lock With BEST Keyways
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cam lock - Best keyway, 3/4" diameter
- Easily rekeyable via cylinder retainer clip
- Retrofits BEST 5E Series
- Pin tumbler cylinder drilled for 7 pins
- ANSI/BHMA No. E07261
- 2 reversible cams work in all locking positions
- 26D finish
- Cylinder length: 1-1/8"
Specifications:
| Function | Cam lock |
| Rekeyable | Easily rekeyable via cylinder retainer clip |
| Retrofits | Best 5E |
| Usage | Commonly used as locking device on medical carts (see also our 724VR medical cart/file cabinet lock for use on medical carts) |
| Body | Zinc die cast |
| Cylinder | Zinc die cast pin tumbler, drilled for 7 pins |
| Standard function | Key removable in locked or unlocked position |
| Cams | 2 reversible cams work in all positions |
| Finish | Satin Chrome 26D |
| Keyways | A, B, E, F, G, J, K, L, R |
| Keys | Includes 2 keys per lock |
|
Included Accessories |
Trim collar Straight cam #DCNP-100-SC Offset cam #DCNP-100-BC Anti-rotation plate #DCNP-500-ARP |
