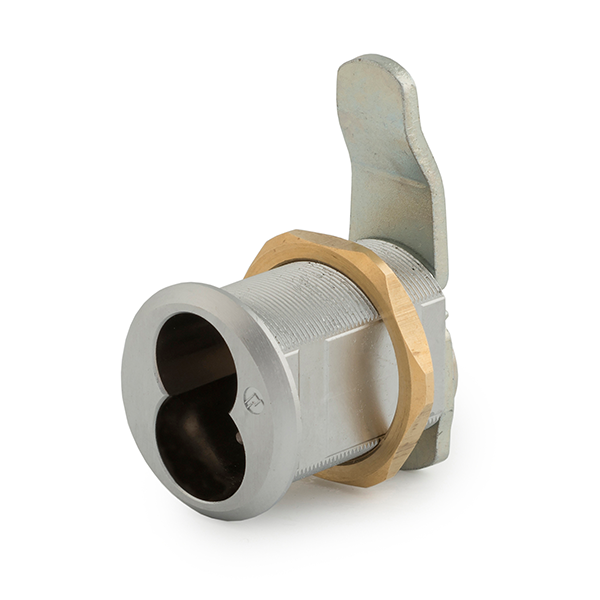

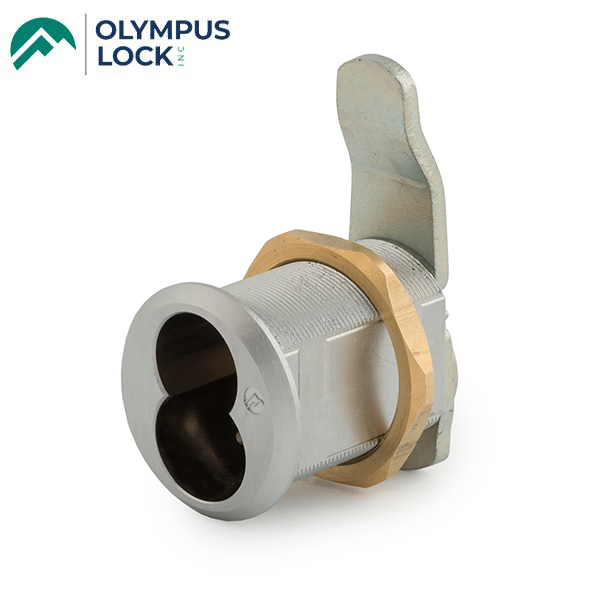

Olympus - CR25 - Interchangeable Core Cam Lock - Less Core - Cylinder Diameter 1-1/8" - Satin Chrome
- $42.13
-
$48.16 - $42.13
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cam lock
- Accepts Corbin/Russwin 6 or 7 pin IC cores
- ANSI/BHMA: E07261
- Barrel diameter: 1-1/8"
- Across flats: 7/8"
- Mounting cutout: 1-5/32"
- Max. material thickness: 1-1/8"
- Min. material thickness: 0.08"
Specifications:
Cylinder diameter | 1-1/8" |
Across flats | 7/8" |
Max. material thickness | 1-1/8" |
Min. material thickness | 0.08" |
Functions | Includes parts for key-retaining or non-key-retaining function |
Body | Zinc die cast |
Finish | Satin Chrome 26D |
Cylinder | Not included |
Accepts | Corbin/Russwin interchangeable core cylinders |
Included Accessories | 725-PA plastic thumbturn 1125-1 spacer to fit 6 or 7 pin cores 720-PL3 anti-rotation plate 720-3-1 short inverted cam 720-3-2 long vertical cam 720-CDLM lost motion cam shifter 720-CDDM key retaining door cam shifter 720-KR key retaining drawer cam shifter |
Downloads:
