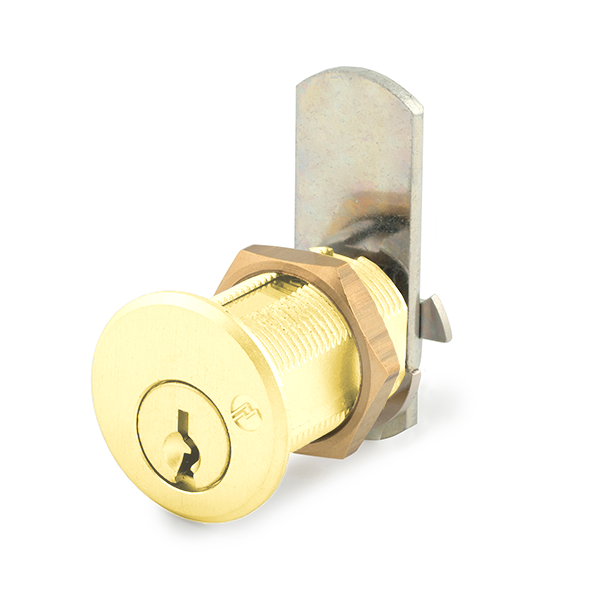

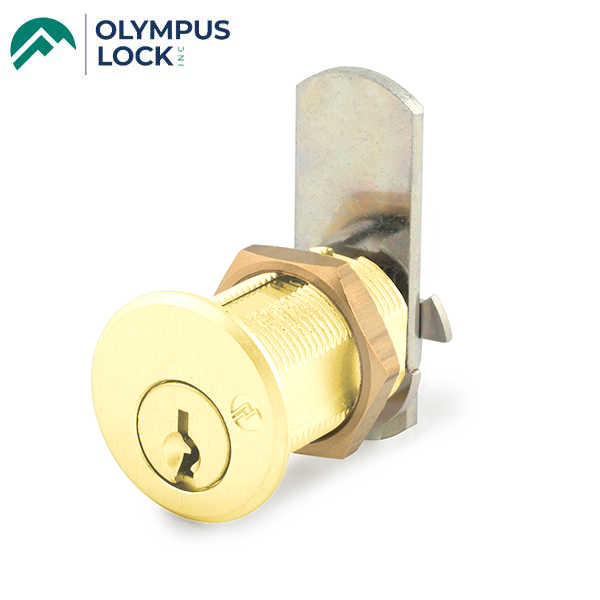

Olympus - DCN - 3/4” Barrel Diameter Cam Lock - Optional Cylinder Length - Polished Brass - Optional Keying - Grade 1
- Product SKU: OLY-DCN1-US3-101-KA
- NSID:
-
OLY-DCN-US3XXXX
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cam lock - N Series, National keyway
- Easily rekeyable via cylinder retainer clip
- Pin tumbler cylinder drilled for 5 pins
- (E07261) ANSI/BHMA Grade 1
- 2 reversible cams work in all locking positions
- 1" face covers splintering no additional trim ring required
- Available in 4 lengths
- Cam lock - N Series, National keyway
Specifications:
| Keying | Can be keyed together with other N Series locks |
| Cylinder length | Four sizes available |
| Rekeyable | Easily rekeyable via cylinder retainer clip |
| ANSI/BHMA | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07261 / E07271. |
| Body | Zinc die cast |
| Cylinder | Zinc die cast, pin tumbler |
| Standard function | Key removable in locked or unlocked position. |
| Cams | 2 reversible cams work in all positions |
| Face | 1" face covers splintering, no additional trim ring required |
| Finish | Polished Brass US3 |
| Keyway | N Series (equivalent to National D4291 4-pin or D4292 5-pin system) |
| Keys | Includes 2 keys per lock |
| Included Accessories | Straight cam #DCNP-100-SC Offset cam #DCNP-100-BC Anti-rotation plate #DCNP-500-ARP |
