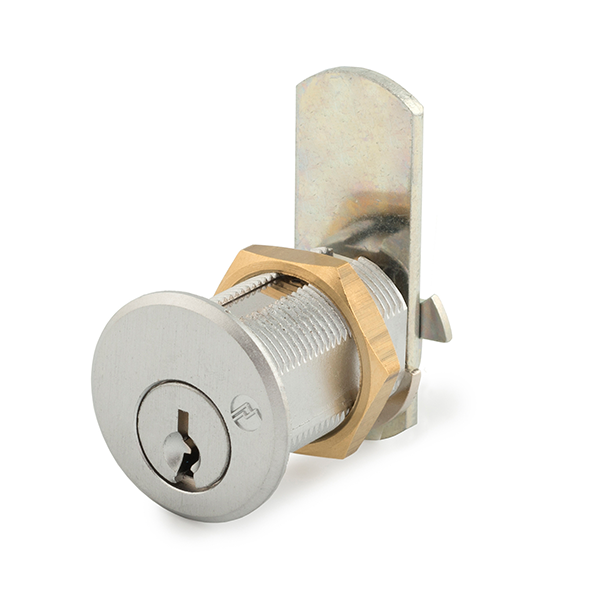

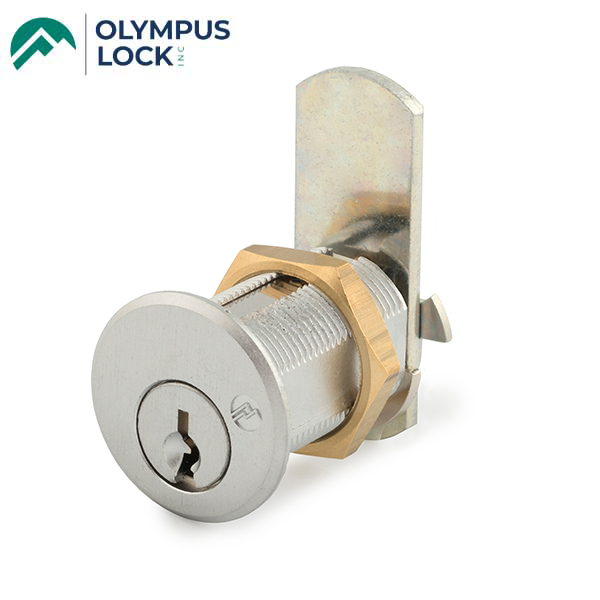

Olympus - DCN - 3/4” Barrel Diameter Cam Lock - Optional Cylinder Length - Satin Chrome - Optional Keying - Grade 1
In Stock
SKU:
OLY-DCN1-26D-101-KA
NSID:
6328
35324
35325
35330
35326
35327
35328
35329
22372
6329
35365
35366
35371
35367
35368
35369
35370
21928
6331
35406
35407
35412
35408
35409
35410
35411
35414
6330
35447
35448
35453
35449
35450
35451
35452
35455
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $20.17
-
$23.79 - $20.17
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OLY-DCN-26DXXXX
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cam lock - N Series, National keyway
- Easily rekeyable via cylinder retainer clip
- Pin tumbler cylinder drilled for 5 pins
- (E07261) ANSI/BHMA Grade 1
- 2 reversible cams work in all locking positions
- 1" face covers splintering no additional trim ring required
- Available in 4 lengths
Specifications:
| Keying | Can be keyed together with other N Series locks |
| Cylinder length | Four sizes available |
| Rekeyable | Easily rekeyable via cylinder retainer clip |
| ANSI/BHMA | Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07261 / E07271. |
| Body | Zinc die cast |
| Cylinder | Zinc die cast, pin tumbler |
| Standard function | Key removable in locked or unlocked position. |
| Cams | 2 reversible cams work in all positions |
| Face | 1" face covers splintering, no additional trim ring required |
| Finish | Satin Chrome 26D |
| Keyway | N Series (equivalent to National D4291 4-pin or D4292 5-pin system) |
| Keys | Includes 2 keys per lock |
| Included Accessories | Straight cam #DCNP-100-SC Offset cam #DCNP-100-BC Anti-rotation plate #DCNP-500-ARP |
Downloads:
