$14.84 $31.90
Available: In Stock
Wishlist
  • Product SKU: OLY-DCN3-26D-101
  • OLY-DCN3-26D-101
    Item Number: 8311

    N Series National Keyway Cam Lock  1-7/16" Cyl. Length

    • Non-handed—Field reversible locking positions: right-hand, lefthand, vertical and inverted
    • Only 2 cams required—Ships with reversible straight and offset cams that meet requirements of all locking positions
    • Easy rekeyability—Allows for a quick installation and increased productivity
    • Anti-rotation plate—Eliminates lock rotation, prevents loosening of fixing nut, and provides additional security  in particleboard applications


    More Information Below

    $14.84

SPECIFICATIONS

Function Cam Lock
Cylinder  National N Series (equivalent to National
D4291 4-pin ) Keyway w/ 2 keys per lock
Keyed Alike KA 101
Handing Non-handed—Field reversible locking positions: right-hand, lefthand, vertical and inverted Includes 2 cams that work in all handings (door or drawer)
Rekeyable Easily rekeyable via cylinder retainer clip
Anti-rotation plate Eliminates lock rotation, prevents loosening of fixing nut, and provides additional security in particleboard applications
Cams 2 reversible cams work in all positions
Face 1" face covers splintering, no additional trim ring required
Body Zinc die cast
Dimensions

1-3/8" without cam (see chart below)
1-7/16" with Straight Cam

Functions Key removable in locked or unlocked position.
Finish 26D - Satin Chrome

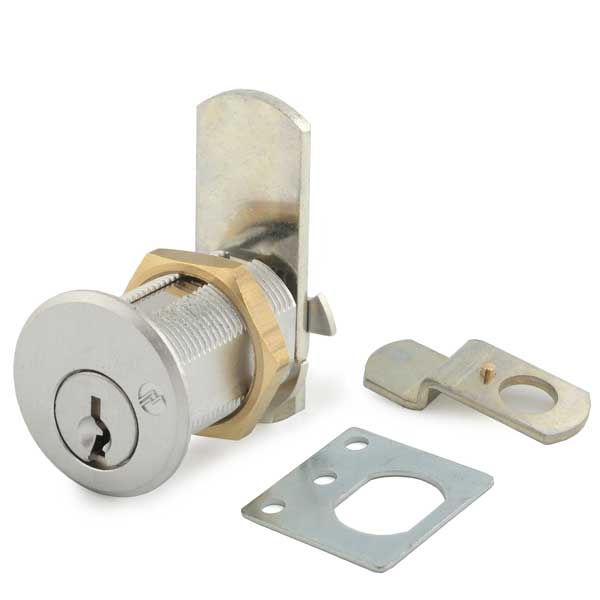

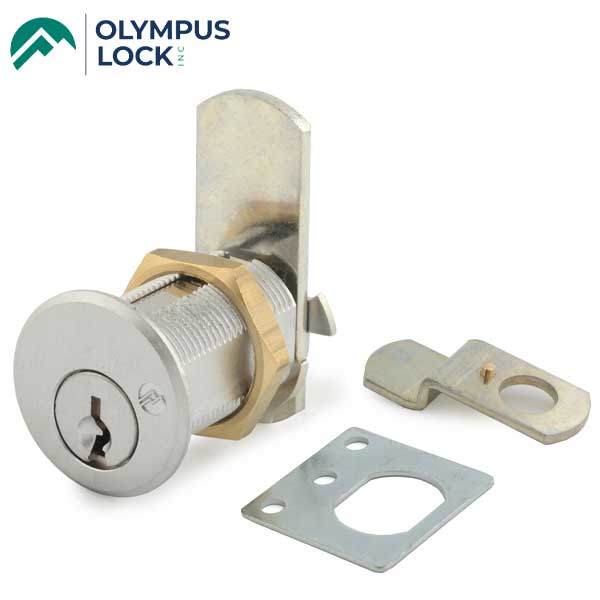

Includes

2 nickel plated keys
1 brass fixing nut
1 straight cam
1 offset reversible cam
1 anti-rotation plate
1 lost-motion cam shifter



Specifications and Lengths



Downloads

OLY-DCN3-26D-101
Item Number: 8311

N Series National Keyway Cam Lock  1-7/16" Cyl. Length

• Non-handed—Field reversible locking positions: right-hand, lefthand, vertical and inverted
• Only 2 cams required—Ships with reversible straight and offset cams that meet requirements of all locking positions
• Easy rekeyability—Allows for a quick installation and increased productivity
• Anti-rotation plate—Eliminates lock rotation, prevents loosening of fixing nut, and provides additional security  in particleboard applications


More Information Below

SPECIFICATIONS

Function Cam Lock
Cylinder  National N Series (equivalent to National
D4291 4-pin ) Keyway w/ 2 keys per lock
Keyed Alike KA 101
Handing Non-handed—Field reversible locking positions: right-hand, lefthand, vertical and inverted Includes 2 cams that work in all handings (door or drawer)
Rekeyable Easily rekeyable via cylinder retainer clip
Anti-rotation plate Eliminates lock rotation, prevents loosening of fixing nut, and provides additional security in particleboard applications
Cams 2 reversible cams work in all positions
Face 1" face covers splintering, no additional trim ring required
Body Zinc die cast
Dimensions

1-3/8" without cam (see chart below)
1-7/16" with Straight Cam

Functions Key removable in locked or unlocked position.
Finish 26D - Satin Chrome
Includes

2 nickel plated keys
1 brass fixing nut
1 straight cam
1 offset reversible cam
1 anti-rotation plate
1 lost-motion cam shifter



Specifications and Lengths



Downloads

Compatible With
