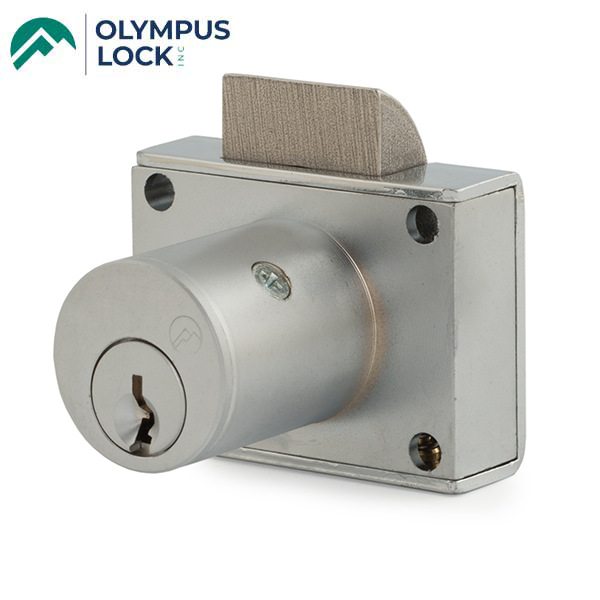

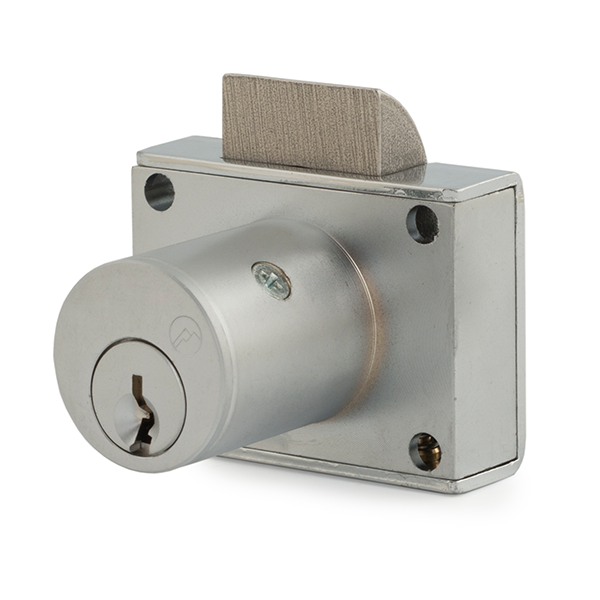

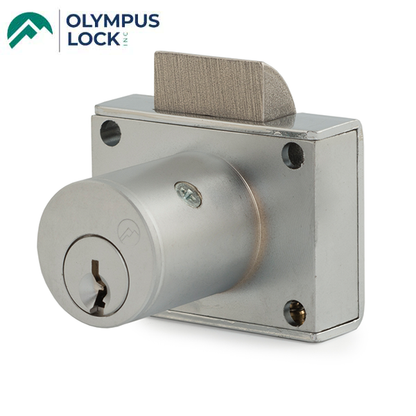

Olympus - L20 - Heavy Duty Drawer Latch Lock - Optional Cylinder Length - Satin Chrome - Optional Keying
- Product SKU: OLY-L20V-26D78-101-KA
- NSID:
-
OLY-L20-26D78XXXX
Heavy Duty Deadlatch Drawer Lock N: Series.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:- Cabinet lock - drawer latch lock
- Drawer vertical
- Easily rekeyable via set screw cylinder release mechanism
- Pin tumbler cylinder drilled for 5 pins
- Barrel lengths: 15/16" or 1-3/8"
- Barrel diameter: 7/8"
- For door application, place lock on side
- Cabinet lock - drawer latch lock
Specifications:
| Function | Heavy Duty Spring latch |
| Keying | Can be keyed together with other N Series locks |
| Rekeyable | Easily rekeyable via set screw cylinder release mechanism |
| Body | Zinc die cast |
| Cylinder | Solid brass, pin tumbler |
| Barrel length | 15/16" or 1-3/8" |
| Barrel diameter | 7/8" |
| Latch projection | 5/16" |
| Finish | Satin Chrome 26D |
| Keyway | N Series (equivalent to National D4291 4-pin or D4292 5-pin system) |
| Keys | Includes 2 keys per lock |
| Included Accessories | Strike: 999-STRIKE (slotted lip strike) |
Downloads:
OLY-L20-26D78XXXX
Heavy Duty Deadlatch Drawer Lock N: Series.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cabinet lock - drawer latch lock
- Drawer vertical
- Easily rekeyable via set screw cylinder release mechanism
- Pin tumbler cylinder drilled for 5 pins
- Barrel lengths: 15/16" or 1-3/8"
- Barrel diameter: 7/8"
- For door application, place lock on side
Specifications:
| Function | Heavy Duty Spring latch |
| Keying | Can be keyed together with other N Series locks |
| Rekeyable | Easily rekeyable via set screw cylinder release mechanism |
| Body | Zinc die cast |
| Cylinder | Solid brass, pin tumbler |
| Barrel length | 15/16" or 1-3/8" |
| Barrel diameter | 7/8" |
| Latch projection | 5/16" |
| Finish | Satin Chrome 26D |
| Keyway | N Series (equivalent to National D4291 4-pin or D4292 5-pin system) |
| Keys | Includes 2 keys per lock |
| Included Accessories | Strike: 999-STRIKE (slotted lip strike) |
Downloads:
