Olympus - L78 - S Series Schlage C Keyway Latch Lock - Optional Cylinder Length - Polished Brass - Optional Keying - Optional Handing
- Product SKU: OLY-L78L-US378-101-KA
- NSID:
-
OLY-L78-US378XXXX

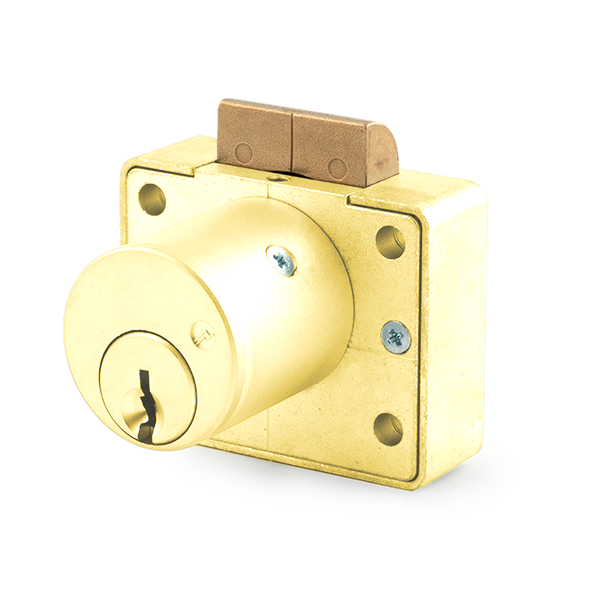

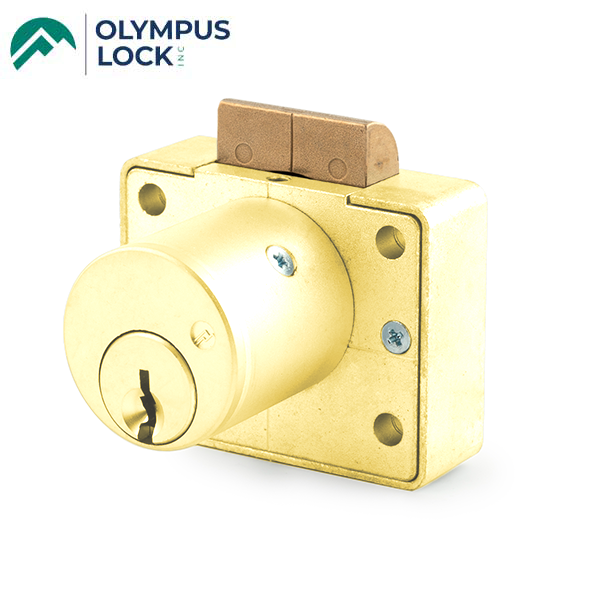

S Series Schlage C Keyway Latch Lock
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:- Cabinet lock - door/drawer latch lock
- Field reversible into all 4 handings. Handings can be easily changed in the field.
- Easily rekeyable via cylinder release mechanism
- Will accept other manufacturer's Schlage compatible deadbolt cylinders
- Locks are handed at factory. Can be changed in the field.
- Barrel diameter: 1-1/8"
- Barrel lengths: 1-1/8" or 1-3/8"
- Includes matching strike (stamped brass) with alignment mark for easy installation L78ST
- Cabinet lock - door/drawer latch lock
Specifications:
| Reversible | Easily field reversible between door and drawer functions |
| Rekeyable | Easily rekeyable via set screw cylinder release mechanism |
| Body | Zinc die cast |
| Cylinder length | 1-1/8" or 1-3/8" |
| Barrel diameter | 1-1/8" |
| Finish | Polished Brass US3 |
| Included Accessories |
For 1-1/8"barrel length locks: - 10-351 plastic spacers (qty 2) L78ST-1 lipped strike - For 1-3/8"barrel length locks: - L78ST-2 lipped strike |
| Keying | Can be keyed together with other Schlage C Keyway locks |
| Keyway | Schlage C keyway |
| Keys | Includes 2 keys per lock |
| Cylinder | Solid brass, pin tumbler |
