*Discontinued* Olympus - L78LC - S Series Latch Lock - Less Cylinder - Optional Cylinder Length - Polished Brass - Optional Handing

*Discontinued* Olympus - L78LC - S Series Latch Lock - Less Cylinder - Optional Cylinder Length - Polished Brass - Optional Handing

Discontinued
SKU OLY-L78L-LCA-US3 NSID 35768
$59.58$71.50On Sale You save $11.92 (17%)
Handing
Cylinder Length

OLY-L78-LCXXXX

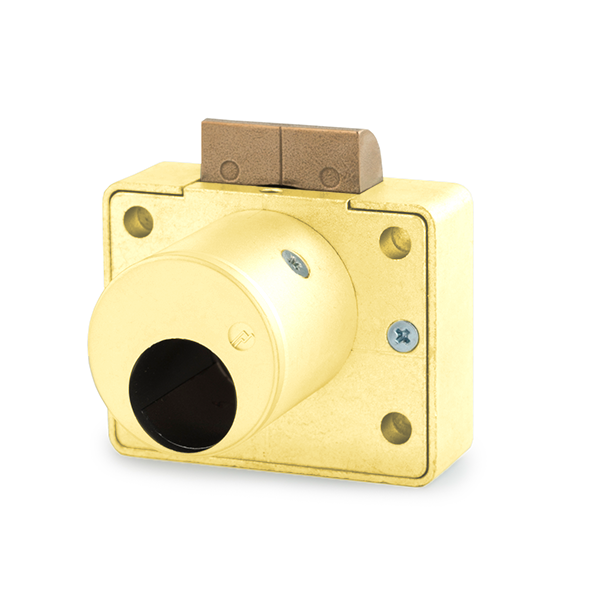

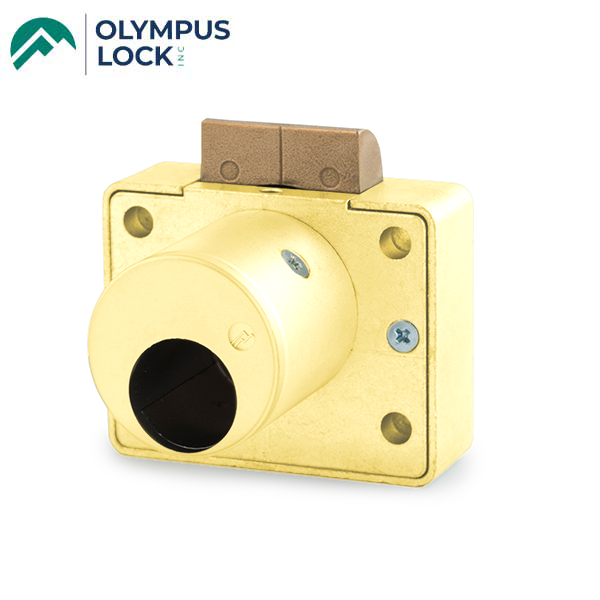

S Series Latch Lock

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • Cabinet lock - door/drawer latch lock (less cylinder)
  • Field reversible into all 4 handings. Handings can be easily changed in the field.
  • Easily rekeyable via cylinder release mechanism
  • Will accept other manufacturer's Schlage compatible key-in-knob style cylinders including ILCO #1599 replacement cylinders.
  • Locks are handed at factory. Field reversible.
  • L78 LCA = 1-1/8" barrel length, or L78 LCM = 1-3/8" barrel length
  • Barrel diameter: 1-1/8"
  • Includes matching strike (stamped brass) with alignment mark for easy installation L78ST
View full details

Details

Specifications:

Reversible Easily field reversible between door and drawer functions
Rekeyable Easily rekeyable via set screw cylinder release mechanism
Body Zinc die cast
Cylinder length 1-1/8" or 1-3/8"
Barrel diameter 1-1/8"
Finish Polished Brass US3
Cylinder Not included
Accepts Schlage compatible key-in-knob cylinders including ILCO cylinder #1599
Includes: All parts necessary to work with other manufacturers’ cylinders
Compatible electronic cylinders Medeco LOGIC, ASSA CLIQ or VIDEX CyberLock key-in-knob cylinders
Included Accessories For 1-1/8"barrel length locks:
- 10-351 plastic spacers (qty 2)
- L78ST-1 lipped strike
For 1-3/8"barrel length locks:
- L78ST-2 lipped strike
