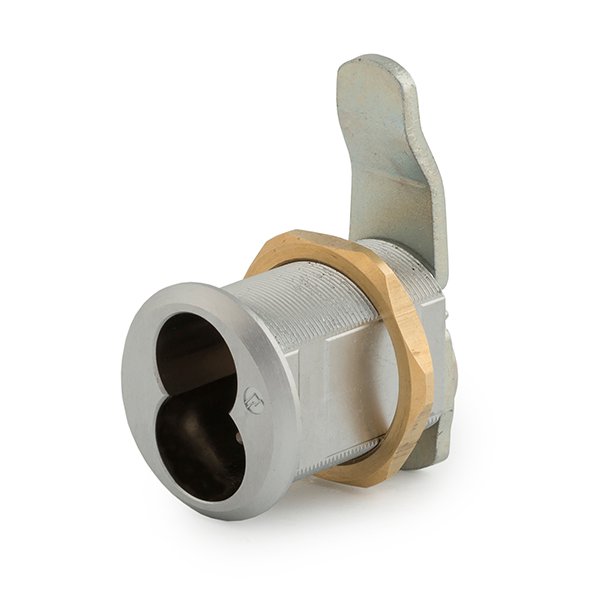

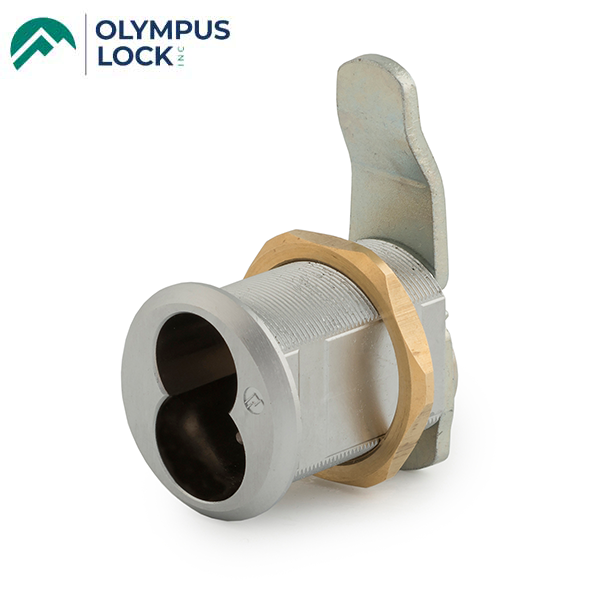

Olympus - ME93 - IC Core Cam Lock For Medeco Large Format IC cores - Less Cylinder - 1-1/8" Cylinder Diameter - Satin Chrome

Olympus - ME93 - IC Core Cam Lock For Medeco Large Format IC cores - Less Cylinder - 1-1/8" Cylinder Diameter - Satin Chrome

Available to order
SKU OLY-ME93LM/DM-26D NSID 35824
$46.45$55.74On Sale You save $9.29 (17%)
Please Note: This product ships within 7 Days

IC Core Cam Lock For Medeco Large Format IC cores

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • Cam lock
  • Accepts Medeco #32-0201 6-pin large format interchangeable core cylinder or equivalent. Locks are sold less cylinder.
  • ANSI/BHMA: E07261
  • Barrel diameter: 1-1/8"
  • Across flats: 7/8"
  • Mounting cutout: 1-5/32"
  • Max. material thickness: 1-1/8"
  • Min. material thickness: 0.08"
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Cylinder diameter
 1-1/8"
Across flats
 7/8"
ME93 Max. material thickness 1-1/4"
Min. material thickness 0.08"
Functions Includes parts for key-retaining or non-key-retaining function
Body Zinc die cast
Finish Satin Chrome 26D
Cores Not included.
Medeco cylinder Accepts Medeco #32-0201 (6-pin) IC cylinder.
Special note Medeco "Keymark" cylinders require Best compatible (small format) cabinet lock bodies.
Included Accessories 931-PA plastic thumbturn
720-PL3 anti-rotation plate
720-3-1 short inverted cam
720-3-2 long vertical cam
720-CDLM lost motion cam shifter
720-CDDM key retaining door cam shifter
720-KR key retaining drawer cam shifter
