• Olympus - R078 - N Series T-Bolt Metal Drawer Lock - 3/4" Barrel Diameter - Satin Chrome - Optional Keying - UHS Hardware
  • Olympus - R078 - N Series T-Bolt Metal Drawer Lock - 3/4" Barrel Diameter - Satin Chrome - Optional Keying - UHS Hardware
1 2
Olympus

Olympus - R078 - N Series T-Bolt Metal Drawer Lock - 3/4" Barrel Diameter - Satin Chrome - Optional Keying

Olympus - R078 - N Series T-Bolt Metal Drawer Lock - 3/4" Barrel Diameter - Satin Chrome - Optional Keying

In stock
SKU OLY-T37-26D-001-KA NSID 36009
$25.49$30.59On Sale You save $5.10 (17%)
Get it shipped Today! Order within:
Keying

OLY-T37-26DXXXX

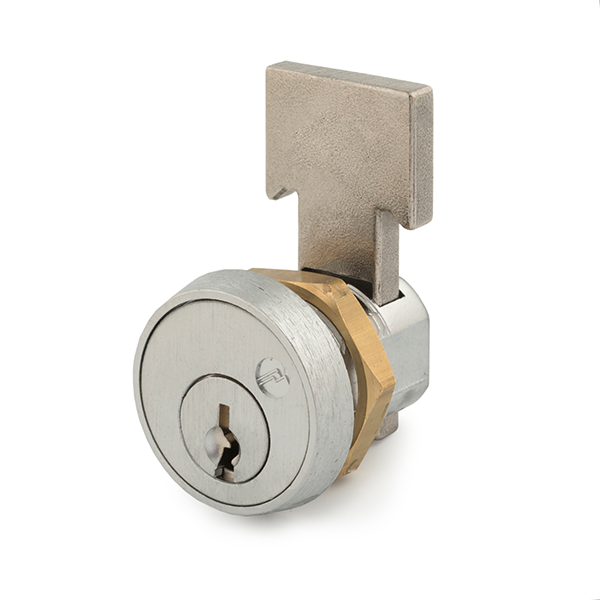

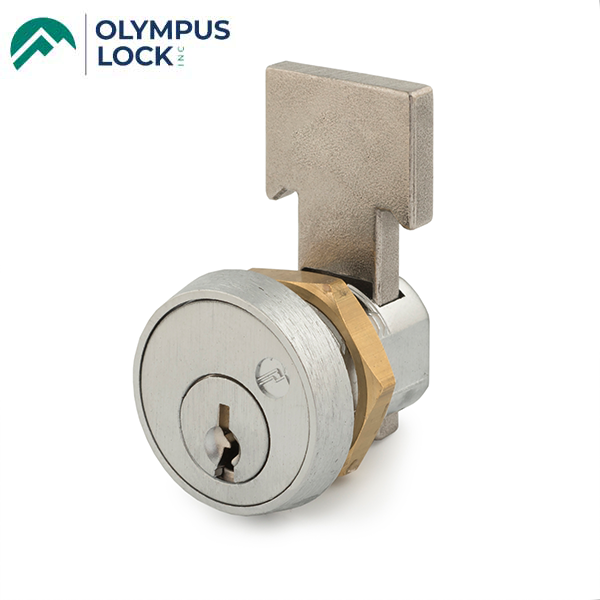

N Series T-Bolt Metal Drawer Lock

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.


Features:

  • Easily rekeyable via working top slide and retainer staple cylinder release mechanism
  • Directly replaces National C8137 T-bolt lock
  • Pin tumbler, 4-pin cylinder
  • ANSI/BHMA No. E07051
  • For 1/4" thick metal drawers
  • Barrel diameter: 3/4"
  • Includes: insertable t-bolt and brass mounting nut
  • Stainless steel bolt resists breakage
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Keying Can be keyed together with other N Series locks
Rekeyable Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy. No more need to pry off faceplates and pin retainer clip
Standard function Key removable in locked or unlocked position
Retrofits National C8137
Body Zinc die cast
Cylinder Zinc die cast, pin tumbler
Bolt Stainless steel
Includes Brass mounting nut. Spring mounting clip T37-RC is available separately.
Barrel diameter 3/4”
Across flats 5/8”
Finish Satin Chrome 26D
Keyway N Series (equivalent to National D4291 4-pin system)
Keys Includes 2 keys per lock
