SPECIFICATIONS

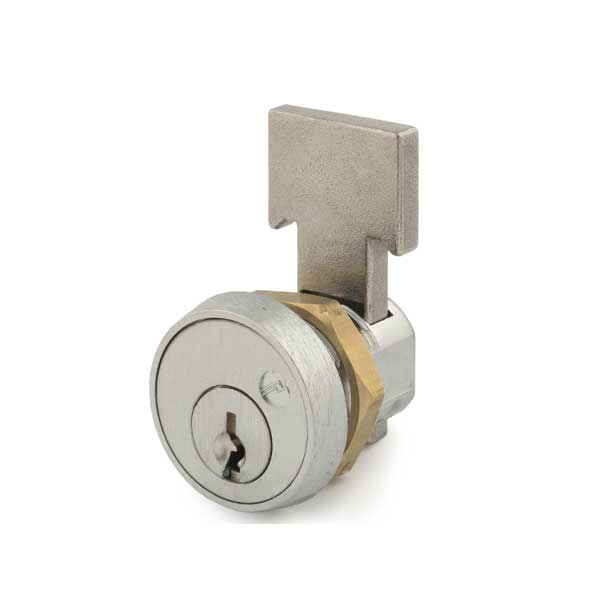

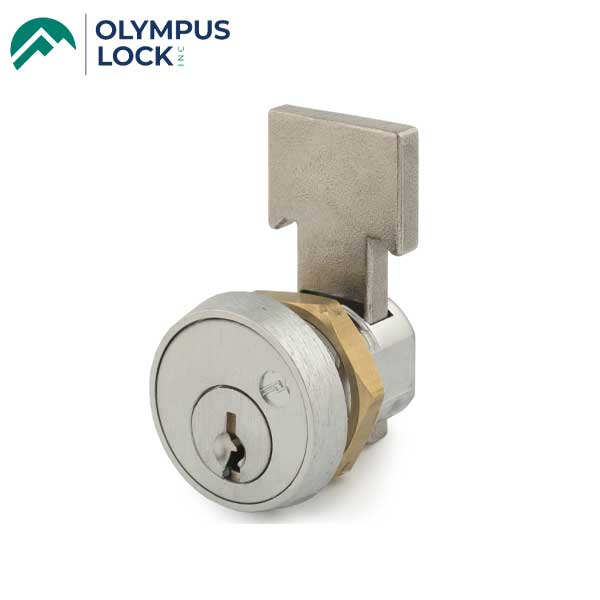

| Function | T-Bolt Metal Bank Drawer Lock |
| Cylinder | National N Series (equivalent to National D4291 4-pin ) Keyway w/ 2 keys per lock |
| Keyed Alike | KA 51001 |
| Rekeyable | Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy. No more need to pry off faceplates and pin retainer clips. |
| Retrofits | National C8137 |
| Body | Zinc die cast |
| Bolt | Stainless steel |
| Across flats | 5/8” |
| Barrel Diameter |
3/4” |
| Cylinder length | 19/32” |
| For Material | 1/4” |
| Mounting | Ships standard with brass fixing nut. The lock comes standard with clip mounting locations for 0” to 11/64” material thicknesses. (Mounting Clip not included... sold separately) |
| Functions | Key removable in locked or unlocked position. |
| Body | Zinc die cast |
| Finish | 26D - Satin Chrome |
| Includes |
- Brass mounting nut |
SPECIAL NOTE ON BOLTS ONLY
The T37 (regular bolt) will not work in the National C8137 lock. However, the C8137 bolts will work in the T37 lock.
