• Olympus - YA93 - IC Core Cam Lock For Yale Large Format IC cores - Less Cylinder - Satin Chrome - Grade 1 - UHS Hardware
  • Olympus - YA93 - IC Core Cam Lock For Yale Large Format IC cores - Less Cylinder - Satin Chrome - Grade 1 - UHS Hardware
1 2
Olympus

Olympus - YA93 - IC Core Cam Lock For Yale Large Format IC cores - Less Cylinder - Satin Chrome - Grade 1

Olympus - YA93 - IC Core Cam Lock For Yale Large Format IC cores - Less Cylinder - Satin Chrome - Grade 1

In stock
SKU OLY-YA93LM/DM-26D NSID 36106
$46.45$55.74On Sale You save $9.29 (17%)
Get it shipped Today! Order within:

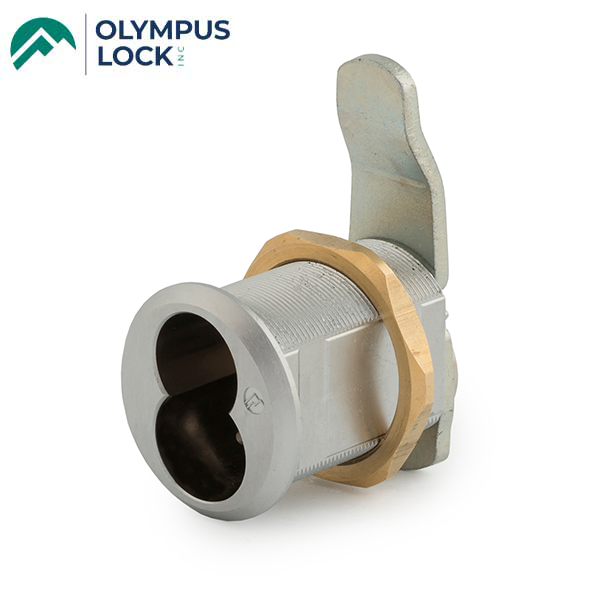

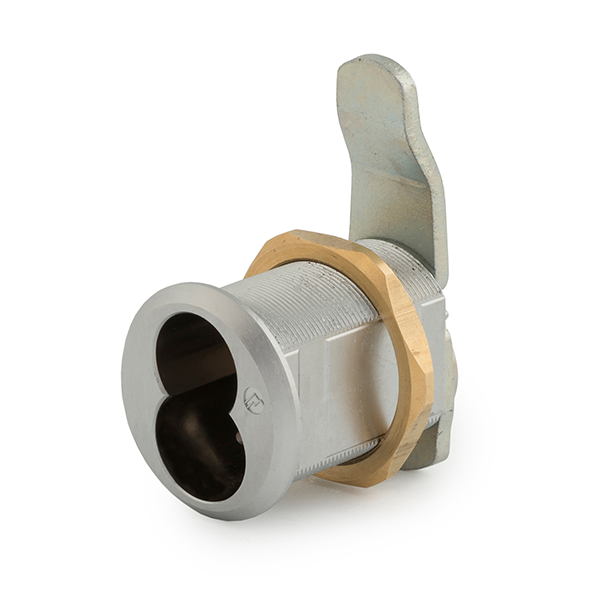

IC Core Cam Lock For Yale Large Format IC cores

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

  • Cam lock
  • Accepts Yale #1210 6-pin large format interchangeable core cylinder or equivalent. Accepts ASSA's 6-pin Yale-compatible large format interchangeable core cylinder. Locks are sold less cylinders.
  • ANSI/BHMA: E07261
  • Barrel diameter: 1-1/8"
  • Across flats: 7/8"
  • Mounting cutout: 1-5/32"
  • Max. material thickness: 1-5/16"
  • Min. material thickness: 0.08"
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details


SPECIFICATIONS

Cylinder diameter 1-1/8"
Across flats 7/8"
YA93 Max. material thickness 1-5/16”
Min. material thickness 0.08"
Functions
 Includes parts for key-retaining or non-key-retaining function
Body Zinc die cast
Finish Satin Chrome 26D
Cores

Not included
Yale cylinder Accepts Yale 1210 Series (6-pin) IC cylinder and Medeco #31-0100 (6-pin) Yale compatible IC cylinder
Assa cylinder

Accepts ASSA’s 6-pin, Yalecompatible large format IC cylinder
Medeco cylinder Accepts Medeco’s 31 Series Yale-compatible large format IC cylinder
Included Accessories 931-PA plastic thumbturn
720-PL3 anti-rotation plate
720-3-1 short inverted cam
720-3-2 long vertical cam
720-CDLM lost motion cam shifter
720-CDDM key retaining door cam shifter
720-KR key retaining drawer cam shifter
