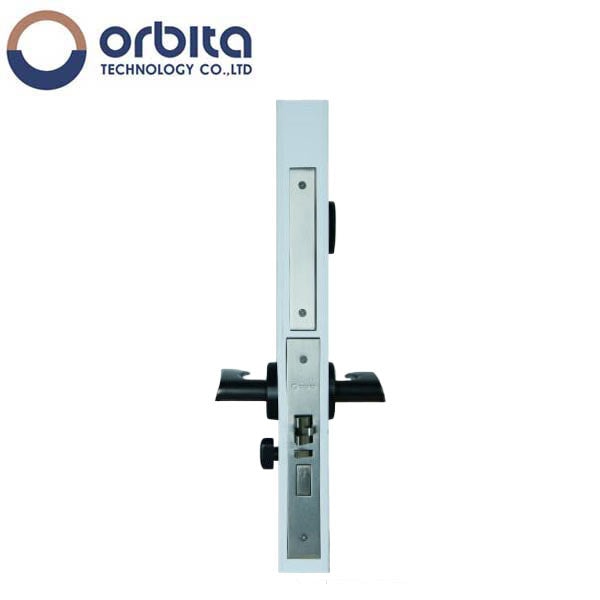

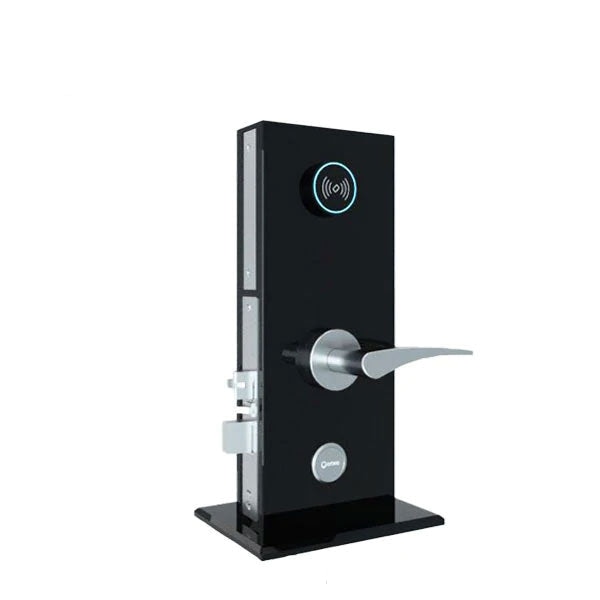

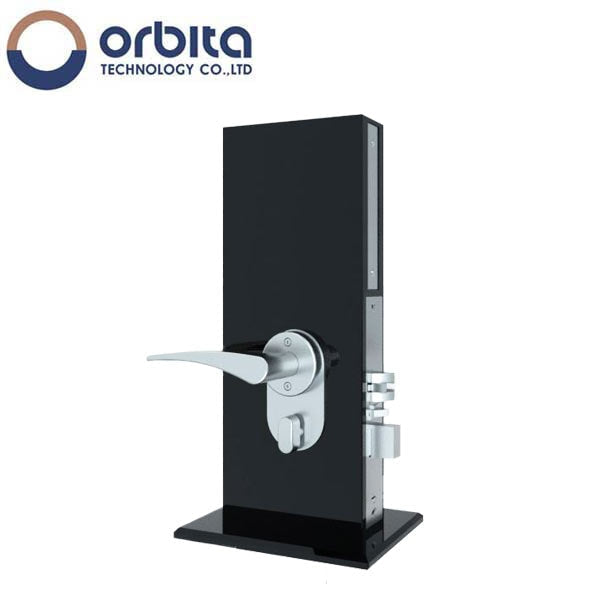

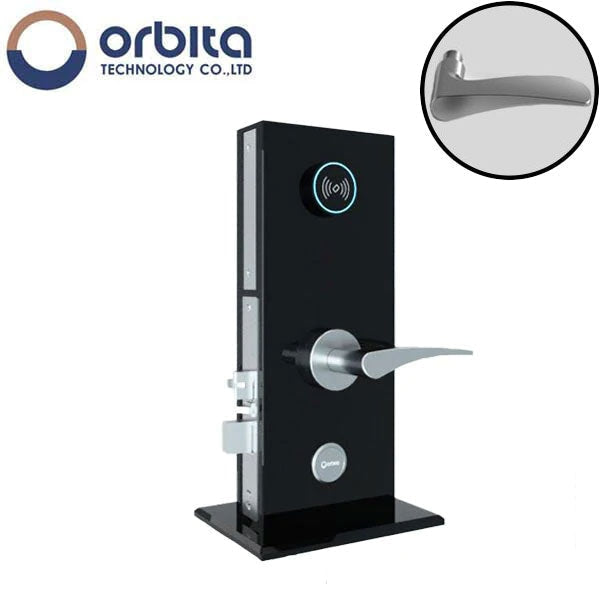

*Discontinued* Orbita - S3074 - Mortise Hotel Lock - SPLIT Design - RFID - Optional Lever Style - 6 VDC - Optional Finish - Grade 2
- $149.99
-
- $149.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OTC-S3074
Orbita is a reputable hospitality products manufacturer with ISO certified 46,000 square meters garden factory, established to offer the best quality products with professional and effective service to our customers. All of ORBITA products are CE, FCC, RoHS marked and ORBITA is one of the few brands in this industry that passed 800,000 times BHMA standard circling test.
Features:
- See Orbita MiFare and Bluetooth Software Download Center HERE
- Unlock with Bluetooth APP, Mifare card and key (sold separately)
- APP Support: Android 4.3/IOS7.0 and above
- Mifare Technology, Bluetooth 4.1 standard
- 304 Stainless Steel panel and handles
- Inside Deadbolt, Inside handle retracts latches and deadbolt
- 5 latch ANSI U.S. standard mortise
- 4 pc AA Cell, minimum 12 months lifespan.
- Low Voltage warning.
- Classified Access Authorization
- General Master, Building master, Emergency card, House Keeping card...
- Lost card suspension.
- Common door function like Swimming pool, Gym, fitness center.
- Meeting room function
 |
|
 |
 |
 |
| 72 - Ares Return |
41 - Minerva Return |
92 - Mars Return |

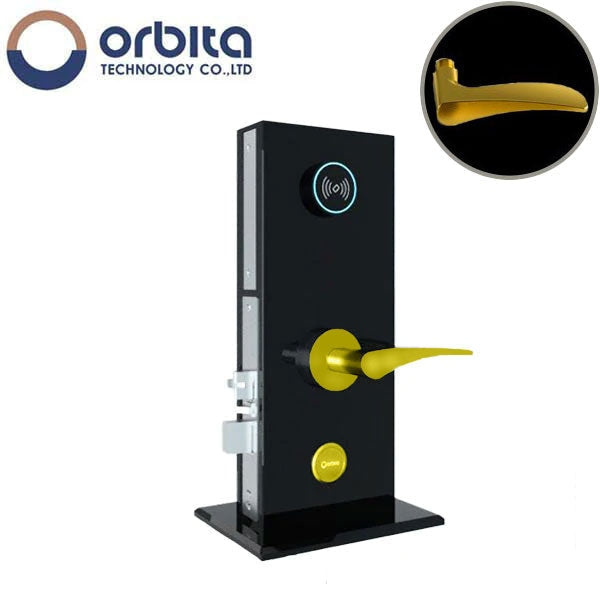

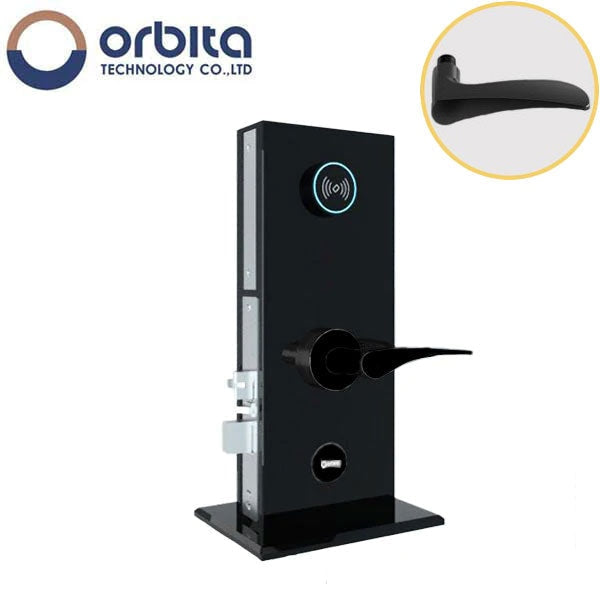

74 - Neptune Straight No Return |

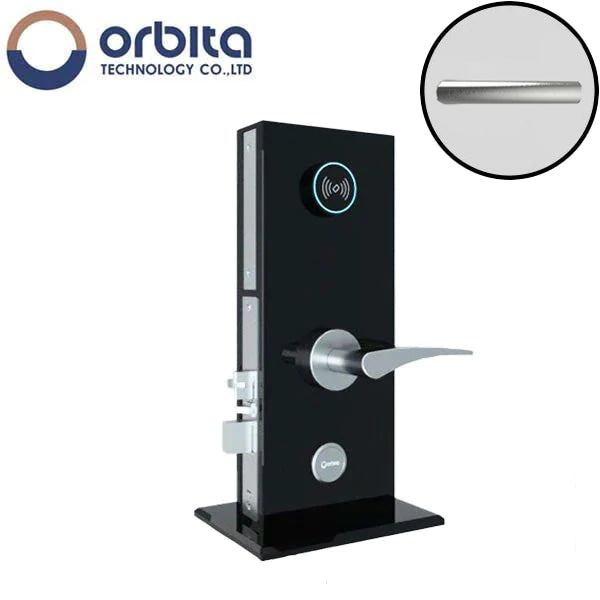

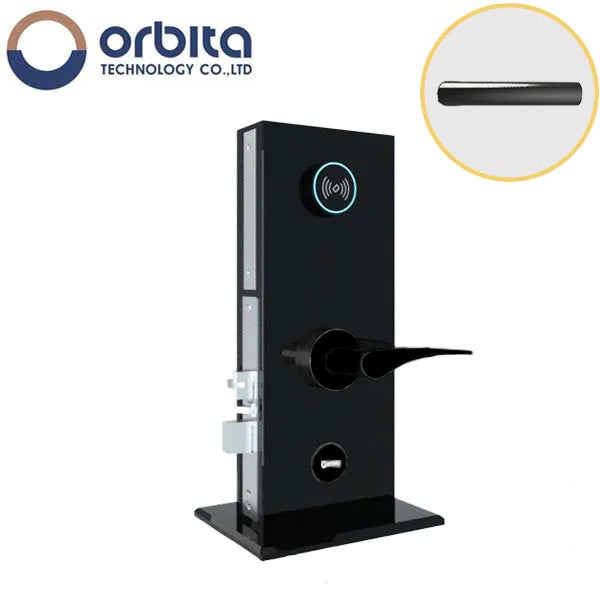

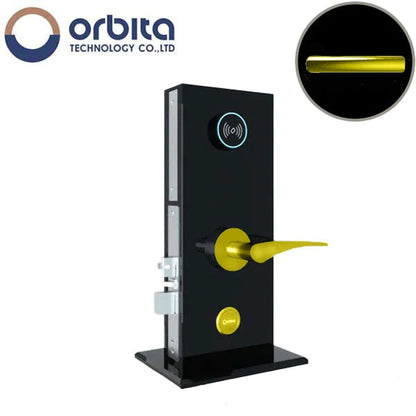

30 - Apollo Straight No Return |
- $149.99
-
- $149.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Material: | 304 Stainless Steel |
| Finish: | Silver Gold Black |
| Lever Style: | 72 - Ares Return 41 - Minerva Return 92 - Mars Return 74 - Neptune - Straight No Return 30 - Apollo - Straight No Return |
| Working Voltage: | DC6V or 4 AA Alkaline batteries |
| Low Voltage Alarm: | ＜4.8V |
| Door Thickness: | 35-70mm (1.38-2.75in.) |
| Operating System: | Fidelio / OPERA |
| Unlocks By: | Bluetooth APP, Mifare card, and key |
| App Support: | Android 4.3/IOS7.0 and above |
| Keycard: | Mifare 1K card, compatible with Mifare Energy Saver |
| Mifare Tech: | Bluetooth 4.1 standard |
| Unlocking Record: | 1680PCS |
| Access Levels: | Classified, General Master, Building master, Emergency card, and House Keeping card |
| Functions: | Passage / Meeting Room |
| Cycles: | 800,000 |
| Lock Body: | 5 latch ANSI U.S. standard mortise |
| Working Environment: | -20℃~60℃ |
| Dimensions: | L109mm x W31.8mm x H203.5mm (4.29 x 1.25in x 8.01in) |
| Certifications: | CE, FCC, ANSI 156.13 / 156.25 Grade 2 |
| Manufacturer's Warranty: | 10 Years |
Downloads:
- See Orbita MiFare and Bluetooth Software Download Center HERE
- Complete Product Guide
NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call +1 (561) 590-1151 between Monday and Friday 9AM-6M EST for freight shipping costs
