*Discontinued* Orbita - Access Control System For Lift Controller - Mifare M1 - 210 Cards Per Lock - 12VDC
*Discontinued* Orbita - Access Control System For Lift Controller - Mifare M1 - 210 Cards Per Lock - 12VDC
Orbita is a reputable hospitality products manufacturer with ISO certified 46,000 square meters garden factory, established to offer the best quality products with professional and effective service to our customers. All of ORBITA products are CE, FCC, RoHS marked and ORBITA is one of the few brands in this industry that passed 100,000 times BHMA standard touch screen test.
Features:
- See Orbita MiFare and Bluetooth Software Download Center HERE
- Elevator Access control
- Each lock card can store 210 cards:
- Support the normally open function by time period
- No card means no access:
- Public floor function support
Details

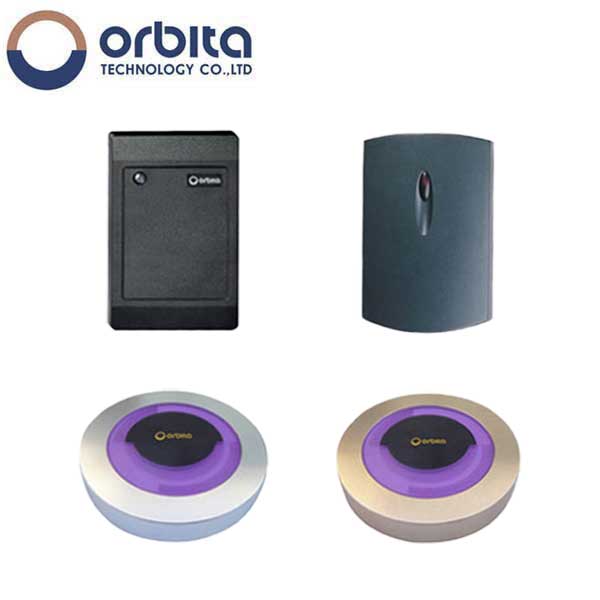

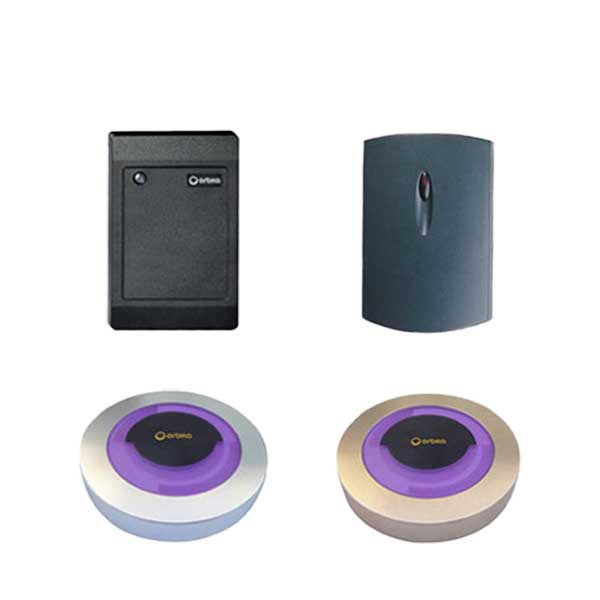

Includes:

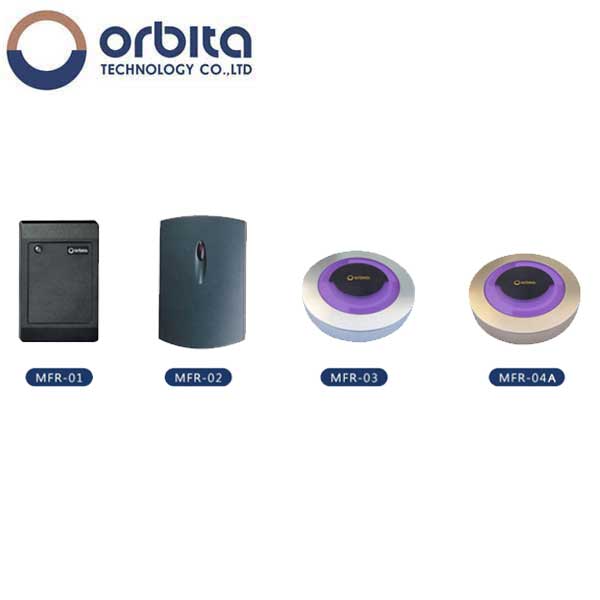

- MFR-01 Square Elevator Reader
- MFR-02 Square Elevator Reader
- MFR-03 Round Elevator Reader
- MFR-04A Round Elevator Reader
Specifications:
| Material: | MFR-01/02 ABS & PC MFR-03/04 Anodized 6063 Aluminum |
| Function: | Elevator Control |
| Power Supply: |
12 VDC |
| Maximum Operating Current | 300 mA |
| Supported Card: | Mifare M1 Card |
| Max Reading Distance: | 2 cm |
| Output: | Serial Port |
| Operating Temp: | -20 - 70C (-4 - 158F) |
| Operating Humidity: | 30% - 85% |
| Dimensions: | MFR-01/02 4.53 H x 2.91 W x 0.63in D MFR-03/04 3.54 Diameter 0.59in D |
Download:
- See Orbita MiFare and Bluetooth Software Download Center HERE
- User Guide
