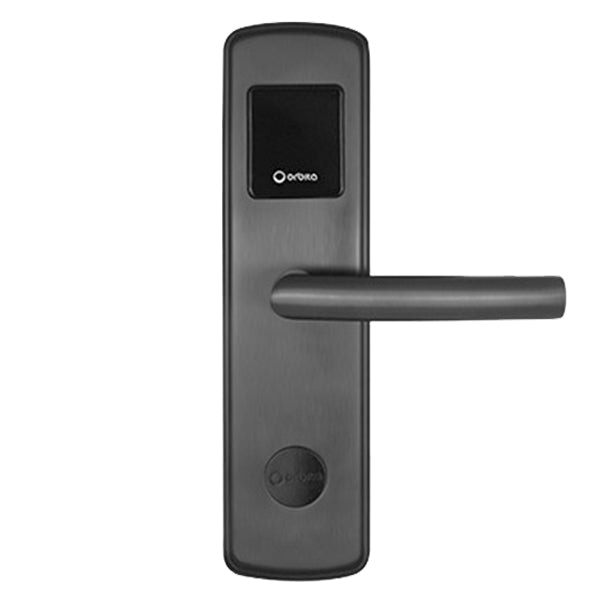

*Discontinued* Orbita - E3030 - Smart Hotel Lock - RFID - Apollo Straight No Return Lever - 6 VDC - Optional Finish - Grade 2 - Hotel Door Locks
*Discontinued* Orbita - E3030 - Smart Hotel Lock - RFID - Apollo Straight No Return Lever - 6 VDC - Optional Finish - Grade 2 - Hotel Door Locks
OTC-E3030-30 / OTC-E3130-30 / OTC-E3430-30
Orbita is a reputable hospitality products manufacturer with ISO certified 46,000 square meters garden factory, established to offer the best quality products with professional and effective service to our customers. All of ORBITA products are CE, FCC, RoHS marked and ORBITA is one of the few brands in this industry that passed 800,000 times BHMA standard circling test.
Features:
- See Orbita MiFare and Bluetooth Software Download Center HERE
- Interface with most of the PMS system, Fidelio/Opera registered
- System Passed Fireproof Certificate
- CE & FCC Certified
- Stainless steel color lasts more than 10 years
- ANSI Standard mortise
- Inside Dead Bolt. Inside handle retracts latches and deadbolt.
- Mifare 1K card, compatible with Mifare Energy Saver (card sold separately)
- Lost Guest Card suspension simply by issuing a new guest card with suspending function
- Low battery voltage warning.(Lower then 4.8V).
- Self Error detecting by LED and “Beep”
- Passage Model function available
- Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis Court/Gym...etc
- Hotel Door Locks
Details
Specifications:
| Material: | 304 Stainless Steel |
| Finish: | Silver Gold Black |
| Lever Style: | Apollo Straight No Return Lever |
| Working Voltage: | DC6V or 4 AA Alkaline batteries |
| Low Voltage Alarm: | ＜4.8V |
| Door Thickness: | 35-70mm (1.37 - 2.76in) |
| Operating System: | Most of the PMS system, Fidelio/Opera |
| Keycard: | Uses Temic/Mifare card; 10,000 times life |
| Unlocking Record: | 1680PCS |
| Access Levels: | Classified, General Master, Building master, Emergency card, and House Keeping card |
| Functions: | Meeting room function and three levels of passage door functions. |
| Cycles: | 800,000 |
| Lock Body: | 5 latch ANSI U.S. standard mortise |
| Working Environment: | -20℃~60℃ |
| Dimensions: |
L350mm x W240mm x H170mm (13.77in x 9.45in x 6.69in) |
| Ingress Protection: | IP54 / Flame Retardant |
| Certifications: | ISO 9001:2015, CE, FCC, ANSI 156.13 / 156.25 Grade 2 |
| Manufacturer's Warranty: | 10 Years |
Downloads:
- See Orbita MiFare and Bluetooth Software Download Center HERE
NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call +1 (561) 590-1151 between Monday and Friday 9AM-6M EST for freight shipping costs
