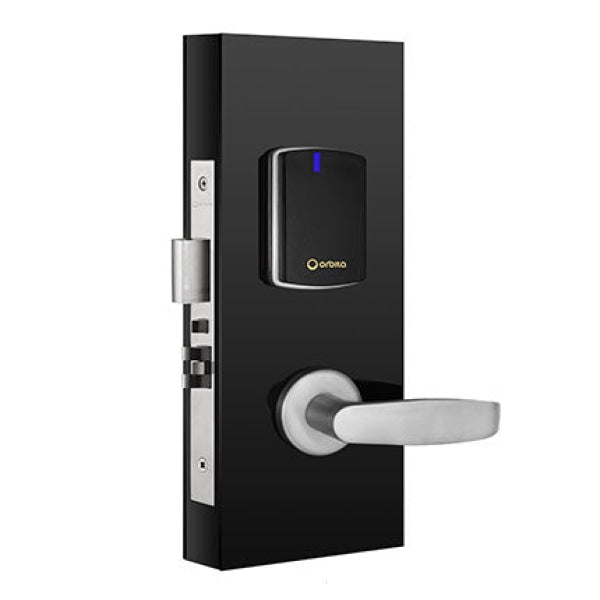

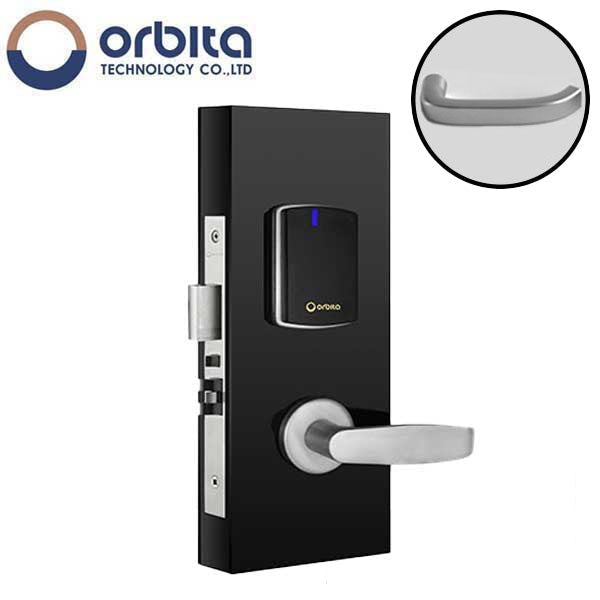

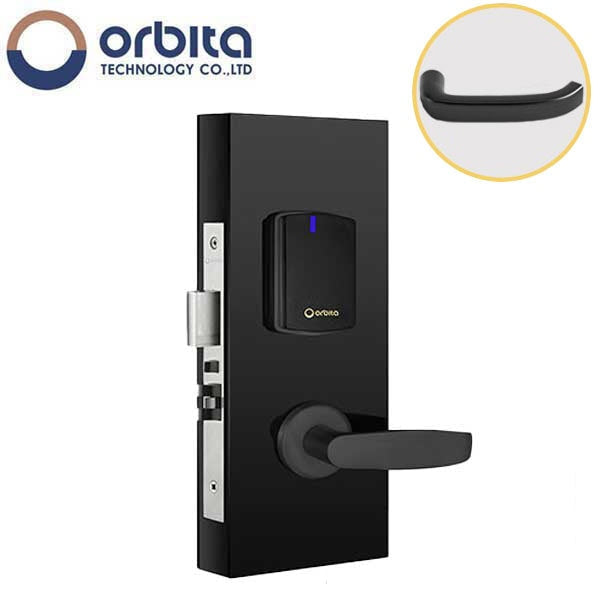

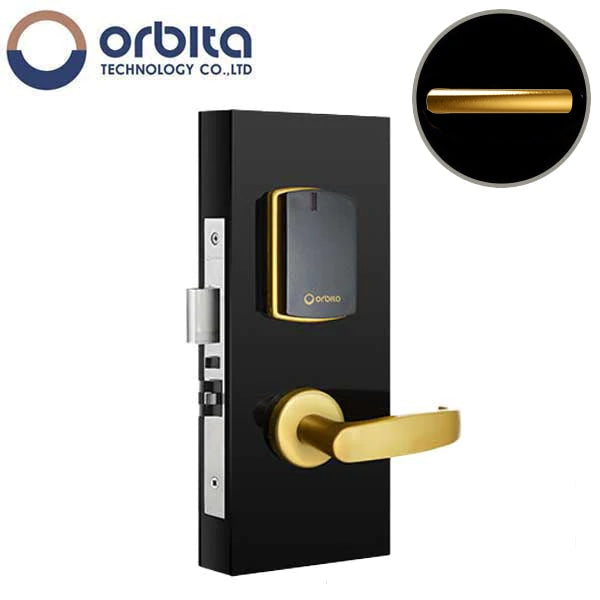

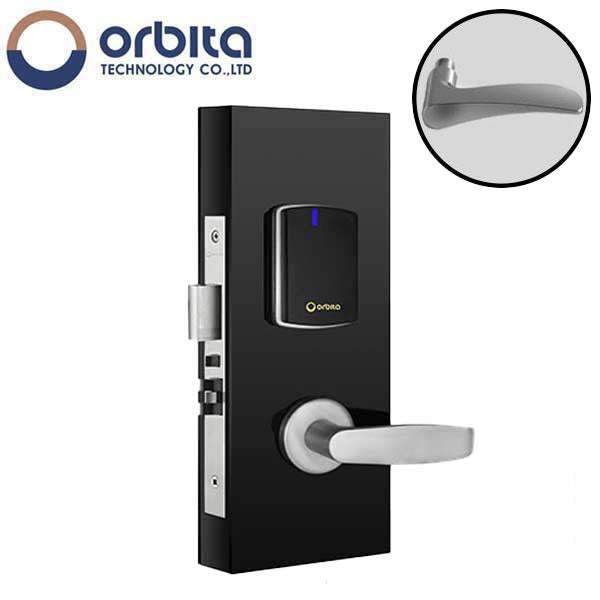

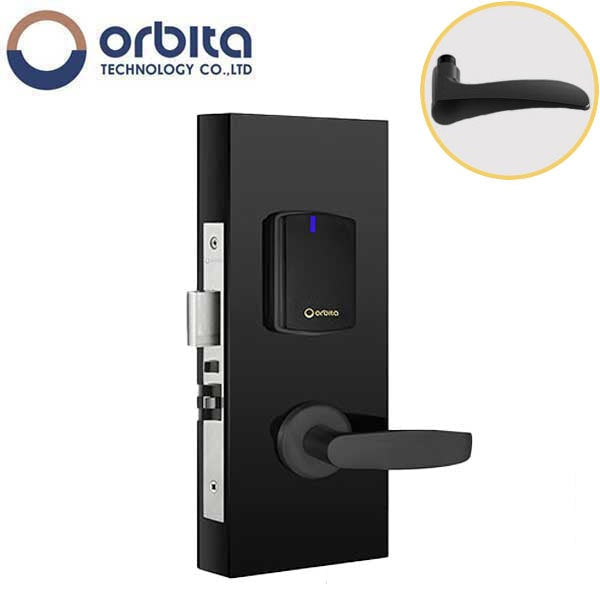

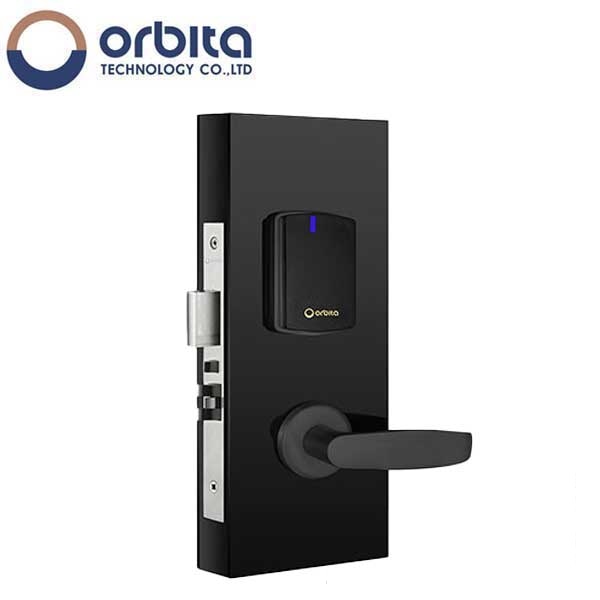

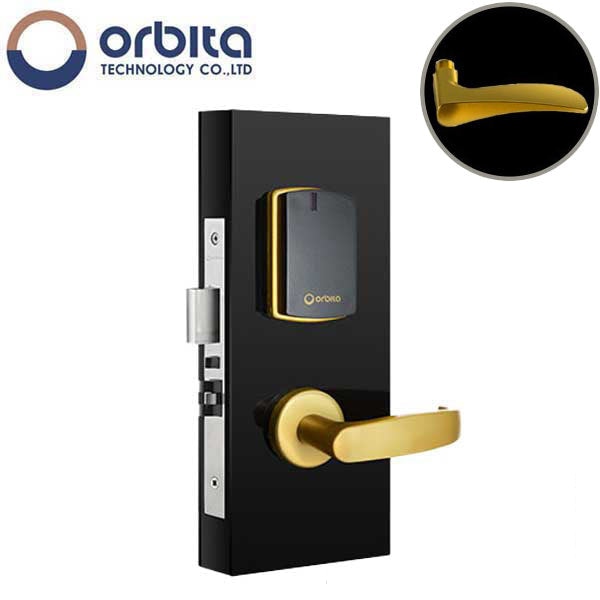

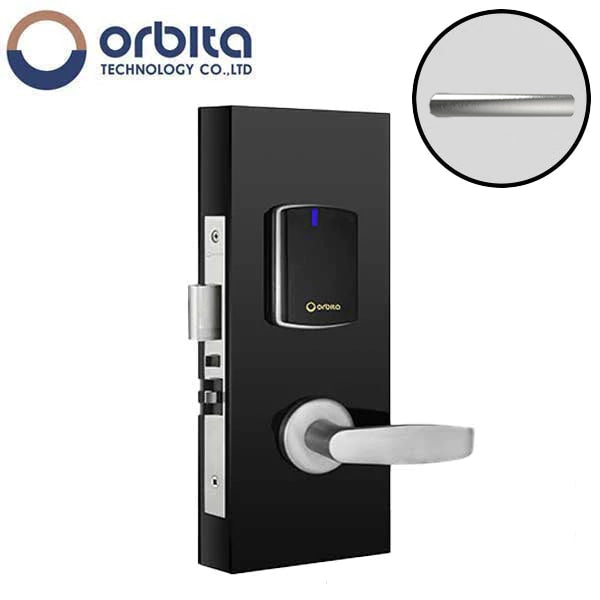

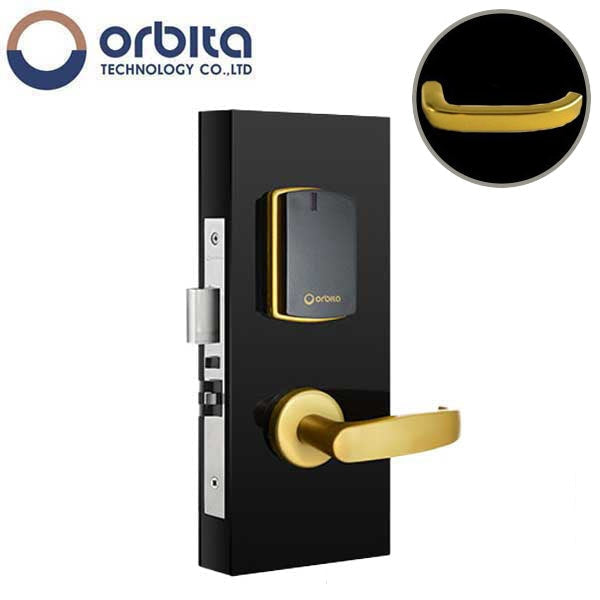

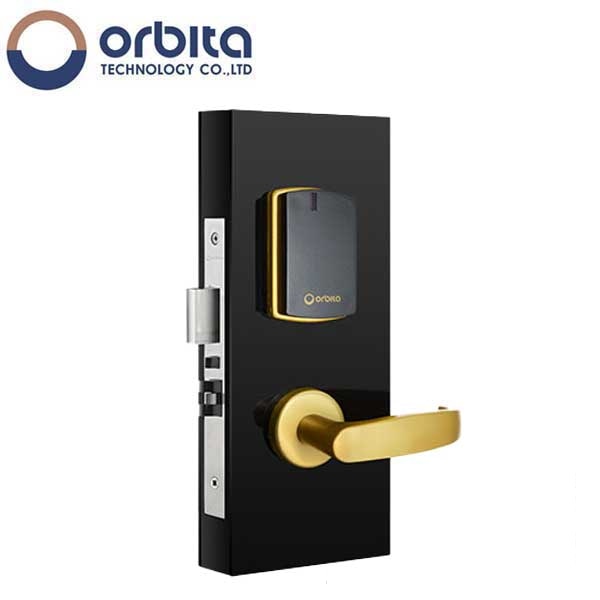

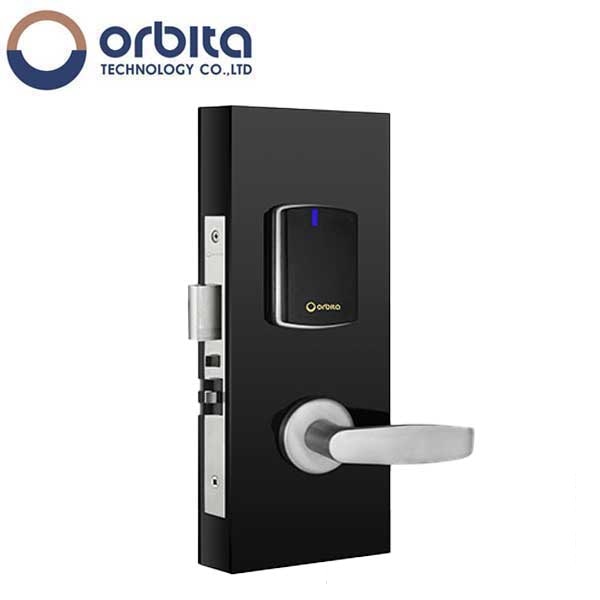

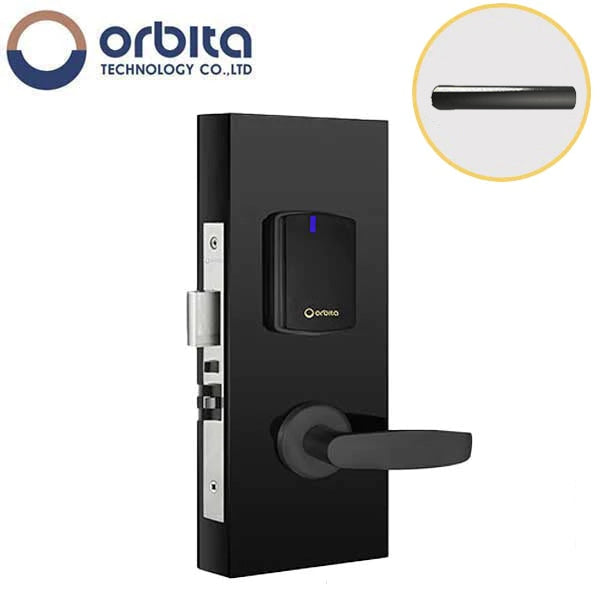

*Discontinued* Orbita - S3072 - Mortise Hotel Lock - SPLIT Design - RFID - Hidden Cylinder - Optional Lever Style - 6 VDC - Optional Finish - Grade 2
Out of Stock
SKU:
OTC-S3072-30-S-LH
NSID:
37370
46269
29377
46271
31844
46270
31845
46273
31846
46272
37376
46299
29378
46301
31850
46300
31851
46303
31852
46302
37382
46329
29379
46331
31847
46330
31848
46333
31849
46332
- $134.99
-
- $134.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
OTC-S3072
Orbita is a reputable hospitality products manufacturer with ISO certified 46,000 square meters garden factory, established to offer the best quality products with professional and effective service to our customers. All of ORBITA products are CE, FCC, RoHS marked and ORBITA is one of the few brands in this industry that passed 800,000 times BHMA standard circling test
Features:
- See Orbita MiFare and Bluetooth Software Download Center HERE- Two-Piece design

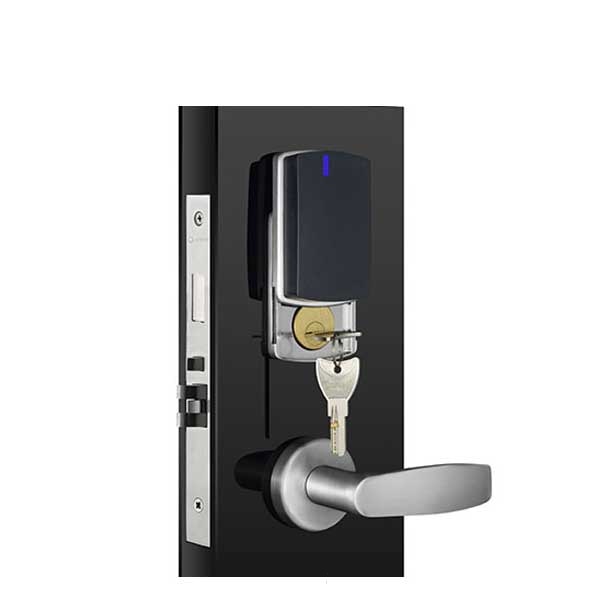

- Hidden cylinder, override mechanical key
- Interface with most of the PMS system, Fidelio/Opera registered
- CE & FCC Certified
- Stainless steel color lasts more than 10 years
- ANSI Standard mortise

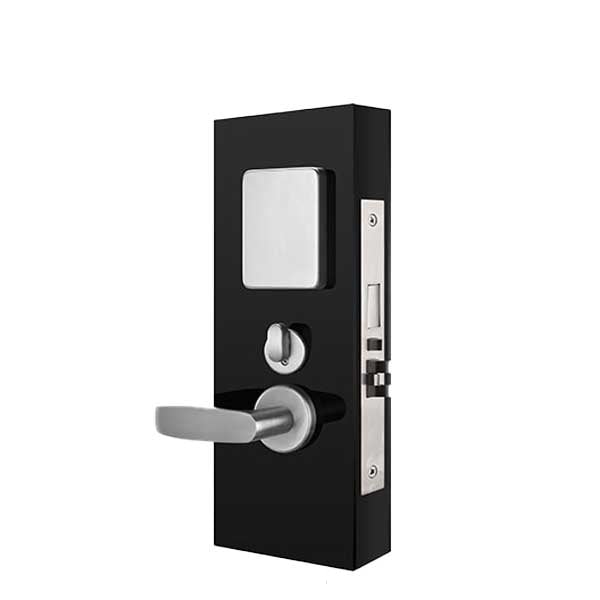

- Inside Deadbolt, Inside handle retracts latches and deadbolt
- Mifare 1K card, compatible with Mifare Energy Saver (card sold separately)
- Lost Guest Card suspension simply by issuing a new guest card with suspending function
- Multiple operators with different card issuing authorization
- Low battery voltage warning.(Lower then 4.8V).
- Self Error detecting with “Beep”
- Passage Model function available
- Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis Court/Gym... etc
 |
|
 |
 |
 |
| 72 - Ares Return |
41 - Minerva Return |
92 - Mars Return |
74 - Neptune Straight No Return |
30 - Apollo Straight No Return |
- $134.99
-
- $134.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Specifications:
| Material: | 304 Stainless Steel |
| Finish: | Silver Gold Black |
| Lever Styles: |
72 - Ares Return |
| Working Voltage: | DC6V or 4 AA Alkaline batteries |
| Low Voltage Alarm: | ＜4.8V |
| Door Thickness: | 35-70mm (1.37 - 2.76in) |
| Operating System: | Most of the PMS system, Fidelio/Opera |
| Keycard: | Mifare 1 card, compatible with Mifare Energy Saver |
| Unlocking Record: | 1680PCS |
| Access Levels: | Classified, General Master, Building master, Emergency card, and House Keeping card |
| Functions: | Passage model |
| Cycles: | 800,000 |

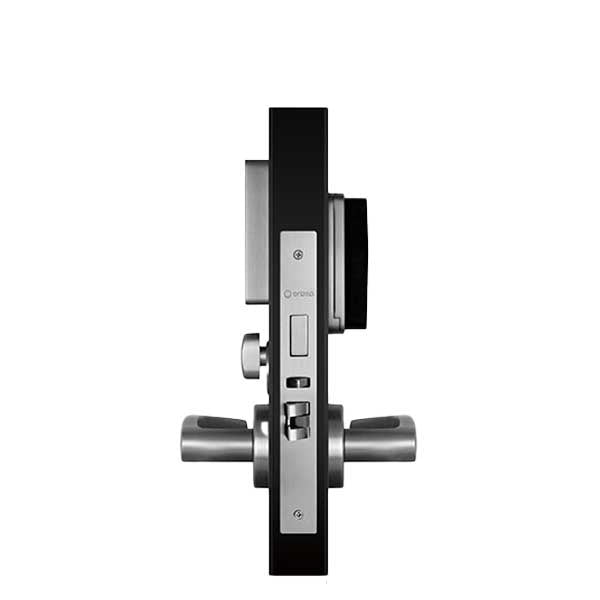

| Lock Body: | 5 latch ANSI U.S. standard mortise |
| Working Environment: | -20℃~60℃ |
| Dimensions: |
L95mm x W62mm x H26mm (3.74in x 2.4in x 1.02in) |
| Ingress Protection: | IP54 / Flame Retardant |
| Certifications: | ISO 9001:2015, CE, FCC, ANSI 156.13 / 156.25 Grade 2 |
| Manufacturer's Warranty: | 10 Years |
Downloads:
- See Orbita MiFare and Bluetooth Software Download Center HERE
- Complete product guide
