PDK - Gate IO - Gate Controller Enclosure - Outdoor (POE Ethernet)

Available to Order
NSID: 24268

Please Note: This product has a lead time

Keep Gates and Garages Secure.

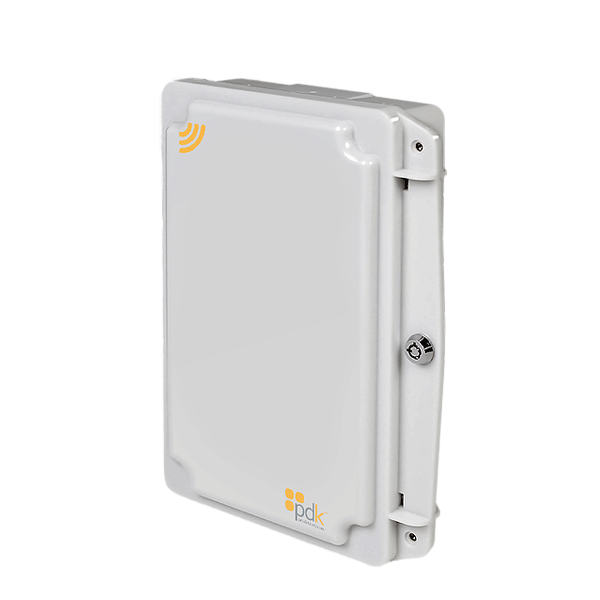

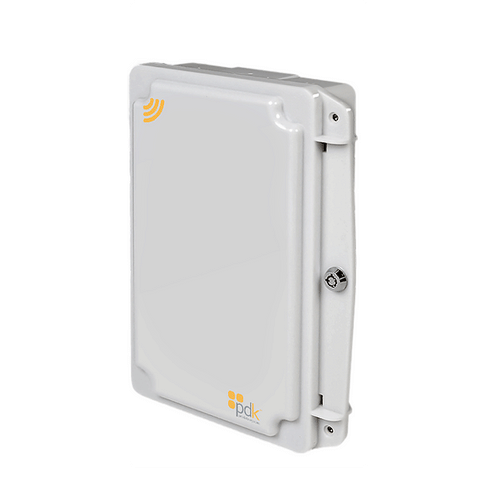

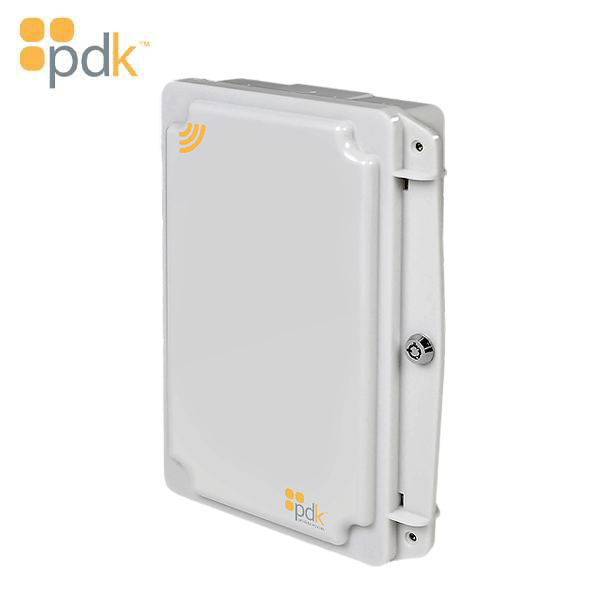

The gate io is perfect for gated entrances, and openings exposed to the elements or harsher environments. Never worry about costly trenching ever again. The gate io comes in a sturdy lockable NEMA 4X UL-rated weatherproof enclosure. Powerfully equipped with WiMAC wireless, the gate io can reach up to a one-mile line of sight.

Model PN: GCPOE - Gate Controller Enclosure (POE Ethernet)

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Gate IO Features

Fully Supervised Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise.

Plug n’ Play Connectivity All io devices were designed to be plug n’ play. That means they’re super easy to install right out of the box. It’s easy to add in any io device no matter how large the job is, and you can quickly scale a system to any size. A cloud node can connect with up to a thousand doors on a single platform.

Scalability Whether you need three doors or a thousand, the gate io controller also allows you to scale the system to just the right size. Also, with the flexibility of our WiMACTM wireless, you can add more gates and openings anytime, or anywhere.

Unparalleled Wireless Range With WiMACTM (Wireless Mesh Access Control), experience up to a one-mile line of sight, and 450 ft (on average) indoor range. Every WiMACTM device installed extends and strengthens the self-healing wireless mesh network. WiMACTM is unmatched in security with a proprietary signal and AES encryption.

Network, PoE, Wireless Choose from three flexible connectivity options that fit any application. The single io is built for ultra-low bandwidth consumption and easily connects to existing or dedicated networks. Easily expand a systems wireless coverage (via network) using the ethernet gateway

IMPORTANT: A PDK - Cloud Node is required to operate the Single io, Eight io, and Eight io+ door controller products.


Connections: Removable Screw-down Terminals
Power Supply Input
Industrial-grade 2A Form-C Relays (1 Door / 1 Aux)
Reader Input (2)
Input A (Door Position Sensor)
Input B (Request To Exit)
Communication Options: POE Ethernet
Environmental: Temperature: -20º ~ +60º C or -4º ~ +140º F
Humidity: 0 - 95% relative humidity non condensing
Enclosure: Dimensions (W x H x D) 7” x 9.25” x 2.25”
Polycarbonate lockable security enclosure
NEMA 4X UL-rated enclosure
Power: 12-24V AC/DC Input
12VDC 1.5A *Battery-Backed Output
Powers readers and other door hardware directly from the bus
*Power supply and battery not included
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials
and workmanship.

Package Contents -

  • (1) Gate Controller Enclosure (POE Ethernet)

This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers

Data Sheet

Quick Start Guide

Online Manual
