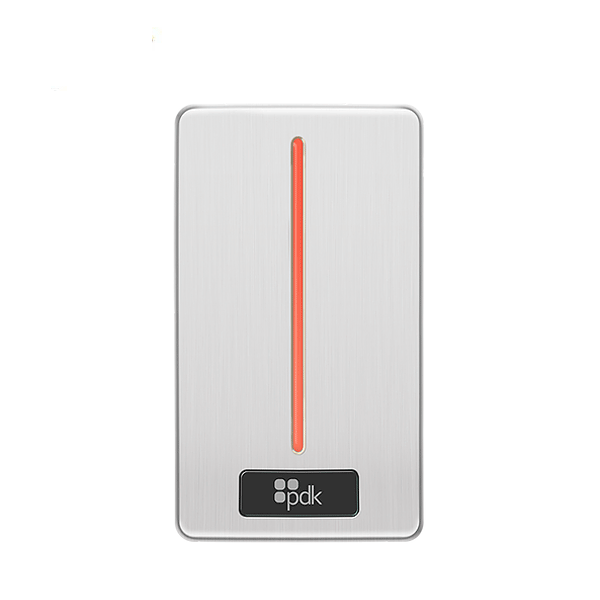

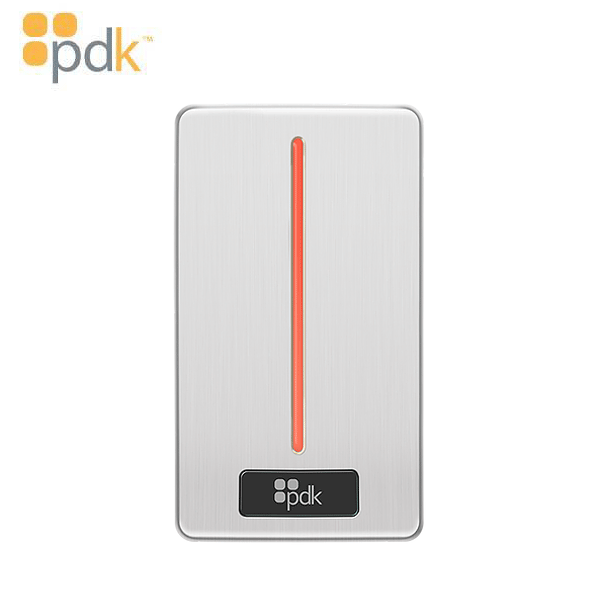

    The Heavy-Duty reader is the perfect balance between form and function. With its sleek and rugged design, the hd reader is ideal for any outdoor facility or modern indoor office space. In addition to its eye-catching design, the hd reader is built for applications where durability is key. The reader is equipped with a heavy-duty, weather-proof IP67 stainless steel enclosure that’s built to withstand vandalism and harsh outdoor environments.


    Model PN: RDRSR - Cloud Network Access Control Heavy-Duty Stainless Steel Reader


Heavy Duty Reader Features

  • RFID Proximity 26- to 37-bit Wiegand-based 125KHz pass-through of bit length
  • Output converts to Wiegand formats
  • Voltage: 6 to 16VDC at the reader. Regulated power supply and 12VDC at the reader is recommended for the best operation.
  • Electronics potted and sealed with tamper-resistant epoxy for indoor and outdoor installation
  • IP67* moisture and dust protection
  • FCC, RoHS, and UL Standard 294 compliant
  • 5KHz audio buzzer

Specifications

Input: Frequency: 125 KHZ
Read Range: up to 1.8”
Output: 26- to 37-bit Wiegand protocol
Cable Distance: Wiegand 500’ (22 AWG)
Environmental: Temperature: -35o ~ +60o C or -31o ~ +140o F
Humidity: 0 - 95% relative humidity, non-condensing
Protection Rating: IP67
Enclosure: Dimensions: (W x H x D) 1.96” x 3.74” x 0.78”
Weight: 0.83 lbs / 13.4 oz / 380 g
Power: 6 - 16V DC (Linear power supply recommended)
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.


Package Contents

  • Heavy-Duty Stainless Steel Reader (1)
  • Mounting screws (2)





Data Sheet

Online Manual

PDK-RDRSR

The Heavy-Duty reader is the perfect balance between form and function. With its sleek and rugged design, the hd reader is ideal for any outdoor facility or modern indoor office space. In addition to its eye-catching design, the hd reader is built for applications where durability is key. The reader is equipped with a heavy-duty, weather-proof IP67 stainless steel enclosure that’s built to withstand vandalism and harsh outdoor environments.


Model PN: RDRSR - Cloud Network Access Control Heavy-Duty Stainless Steel Reader

Heavy Duty Reader Features

  • RFID Proximity 26- to 37-bit Wiegand-based 125KHz pass-through of bit length
  • Output converts to Wiegand formats
  • Voltage: 6 to 16VDC at the reader. Regulated power supply and 12VDC at the reader is recommended for the best operation.
  • Electronics potted and sealed with tamper-resistant epoxy for indoor and outdoor installation
  • IP67* moisture and dust protection
  • FCC, RoHS, and UL Standard 294 compliant
  • 5KHz audio buzzer

Specifications

Input: Frequency: 125 KHZ
Read Range: up to 1.8”
Output: 26- to 37-bit Wiegand protocol
Cable Distance: Wiegand 500’ (22 AWG)
Environmental: Temperature: -35o ~ +60o C or -31o ~ +140o F
Humidity: 0 - 95% relative humidity, non-condensing
Protection Rating: IP67
Enclosure: Dimensions: (W x H x D) 1.96” x 3.74” x 0.78”
Weight: 0.83 lbs / 13.4 oz / 380 g
Power: 6 - 16V DC (Linear power supply recommended)
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.


Package Contents

  • Heavy-Duty Stainless Steel Reader (1)
  • Mounting screws (2)





Data Sheet

Online Manual
