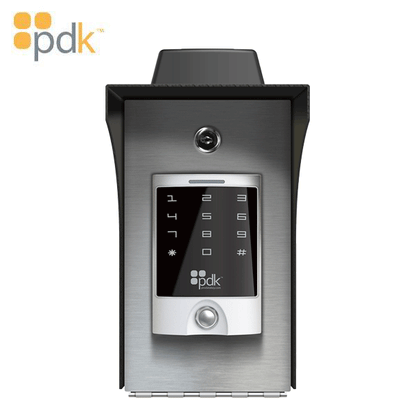

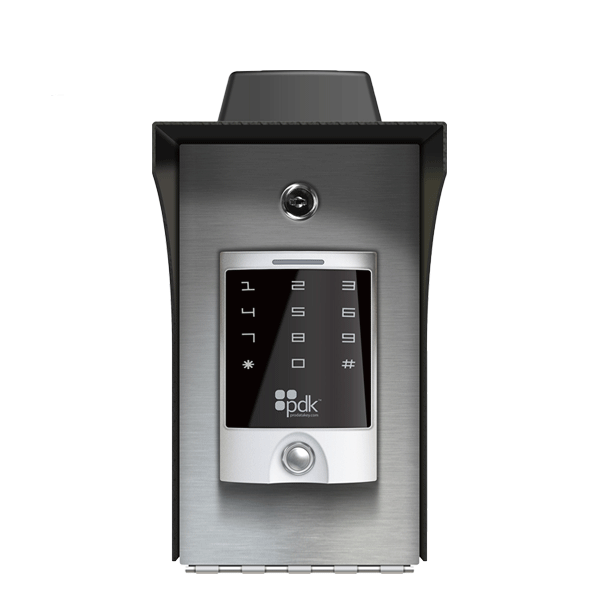

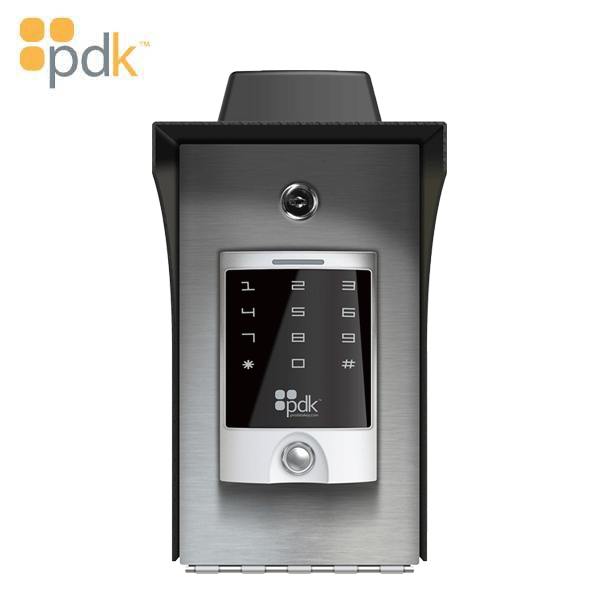

PDK - Pedestal IO - Outdoor Pedestal Mount Enclosure - with Pre-Installed Single Gang Reader (Ethernet)
PDK - Pedestal IO - Outdoor Pedestal Mount Enclosure  - with Pre-Installed Single Gang Reader (Ethernet)
PDK - Pedestal IO - Outdoor Pedestal Mount Enclosure  - with Pre-Installed Single Gang Reader (Ethernet)
PDK - Pedestal IO - Outdoor Pedestal Mount Enclosure  - with Pre-Installed Single Gang Reader (Ethernet)
PDK - Pedestal IO - Outdoor Pedestal Mount Enclosure  - with Pre-Installed Single Gang Reader (Ethernet)

PDK - Pedestal IO - Outdoor Pedestal Mount Enclosure - with Pre-Installed Single Gang Reader (Ethernet)

Login to view price
Or Call 1-800-878-6604 for Dealer Prices!

Availability: Available
  • Product SKU: PDK-PCE
  • NSID: 24263
  • PDK-PCE

    Security & Convenience Wrapped Into One.

    The pedestal io is the most versatile outdoor controller on the market. Robust and weatherproof, the stainless-steel housing delivers a heavy-duty enclosure with a visually appealing design.

    The pedestal io controller is the solution for access control needs in outdoor applications such as parking lots, gated communities, and storage facilities. A robust weatherproof stainless-steel housing protects the controller while delivering a visually appealing design. Pedestal io controllers are mountable to goosenecks and walls and come ready for plug and play installation with an optional ruggedized touchpad reader.

    Model PN: PCE - Outdoor Access Controller with Reader (Ethernet)


Pedestal IO Features

Ruggedized Reader Pedestal io proves to be the most versatile outdoor controller on the market featuring a full-bodied stainless-steel housing and optional pre-installed ruggedized reader.

Fully Supervised Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise.

Plug n’ Play Connectivity All io devices were designed to be plug n’ play. That means they’re super easy to install right out of the box. It’s easy to add in any io device no matter how large the job is, and you can quickly scale a system to any size. A cloud node can connect with up to a thousand doors on a single platform.

Two Reader Inputs Two reader inputs are ideal for applications where both read in and read out is a security requirement. Know exactly when users enter and exit a premise. The second reader input can also be assigned to trigger automated events.

Unparalleled Wireless Range With WiMACTM (Wireless Mesh Access Control), experience up to a one-mile line of sight, and 450 ft (on average) indoor range. Every WiMACTM device installed extends and strengthens the self-healing wireless mesh network. WiMACTM is unmatched in security with a proprietary signal and AES encryption.

Network, PoE, Wireless Choose from three flexible connectivity options that fit any application. The single io is built for ultra-low bandwidth consumption and easily connects to existing or dedicated networks. Easily expand a systems wireless coverage (via network) using the ethernet gateway

IMPORTANT: A PDK -  Cloud Node is required to operate the Single io, Eight io, and Eight io+ door controller products.

Specifications

 Connections: Removable Screw-down Terminals Power Supply Input Industrial-grade 2A Form-C Relays (1 Door / 1 Aux) Reader Input (2) Input A (Door Position Sensor) Input B (Request To Exit) With WiMACTM (Wireless Mesh Access Control), experience up to a one-mile line of sight, and 450 ft (on average) indoor range. Every WiMACTM device installed extends and strengthens the self-healing wireless mesh network. WiMACTM is unmatched in security with a proprietary signal and AES encryption.
Communication Options: Ethernet
Environmental: Temperature: -20º ~ +60º C or -4º ~ +140º F
Humidity: 0 - 95% relative humidity non condensing
Enclosure: Dimensions (W x H x D) 5.5” x 9.5” x 5.5”
Stainless-Steel Enclosure
Power: Included Power Supply: 14V DC, 2A transformer 12-24V AC/DC Input 12VDC 1.5A *Battery-Backed Output Powers readers and other door hardware directly from the bus *Battery not included
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials
and workmanship.


Package Contents - Cloud Node includes the main panel and Single io door controller

  • (1) Stainless aluminum alloy housing (includes weather-proof gasket)
  • (1) Single io wireless or Ethernet door controller board (includes controller and reader)
  • (1) Sealed radome weather-proof, long-range antenna
  • (1) Ruggedized 10-key keypad
  • (1)Lock and key
  • (1) Power Supply - 14VDC, 2 Amp
  • (1) Bracket to secure power supply to an electrical outlet
  • (4 each) Bolts, lock washers, & nuts
  • (8) Washers
  • (1) Battery Leads
  • (3) Jumpers
  • (1) Diode
  • (2) Labels




This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers

Data Sheet

Quick Start Guide

Online Manual

PDK-PCE

Security & Convenience Wrapped Into One.

The pedestal io is the most versatile outdoor controller on the market. Robust and weatherproof, the stainless-steel housing delivers a heavy-duty enclosure with a visually appealing design.

The pedestal io controller is the solution for access control needs in outdoor applications such as parking lots, gated communities, and storage facilities. A robust weatherproof stainless-steel housing protects the controller while delivering a visually appealing design. Pedestal io controllers are mountable to goosenecks and walls and come ready for plug and play installation with an optional ruggedized touchpad reader.

Model PN: PCE - Outdoor Access Controller with Reader (Ethernet)

Pedestal IO Features

Ruggedized Reader Pedestal io proves to be the most versatile outdoor controller on the market featuring a full-bodied stainless-steel housing and optional pre-installed ruggedized reader.

Fully Supervised Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise.

Plug n’ Play Connectivity All io devices were designed to be plug n’ play. That means they’re super easy to install right out of the box. It’s easy to add in any io device no matter how large the job is, and you can quickly scale a system to any size. A cloud node can connect with up to a thousand doors on a single platform.

Two Reader Inputs Two reader inputs are ideal for applications where both read in and read out is a security requirement. Know exactly when users enter and exit a premise. The second reader input can also be assigned to trigger automated events.

Unparalleled Wireless Range With WiMACTM (Wireless Mesh Access Control), experience up to a one-mile line of sight, and 450 ft (on average) indoor range. Every WiMACTM device installed extends and strengthens the self-healing wireless mesh network. WiMACTM is unmatched in security with a proprietary signal and AES encryption.

Network, PoE, Wireless Choose from three flexible connectivity options that fit any application. The single io is built for ultra-low bandwidth consumption and easily connects to existing or dedicated networks. Easily expand a systems wireless coverage (via network) using the ethernet gateway

IMPORTANT: A PDK -  Cloud Node is required to operate the Single io, Eight io, and Eight io+ door controller products.

Specifications

 Connections: Removable Screw-down Terminals Power Supply Input Industrial-grade 2A Form-C Relays (1 Door / 1 Aux) Reader Input (2) Input A (Door Position Sensor) Input B (Request To Exit) With WiMACTM (Wireless Mesh Access Control), experience up to a one-mile line of sight, and 450 ft (on average) indoor range. Every WiMACTM device installed extends and strengthens the self-healing wireless mesh network. WiMACTM is unmatched in security with a proprietary signal and AES encryption.
Communication Options: Ethernet
Environmental: Temperature: -20º ~ +60º C or -4º ~ +140º F
Humidity: 0 - 95% relative humidity non condensing
Enclosure: Dimensions (W x H x D) 5.5” x 9.5” x 5.5”
Stainless-Steel Enclosure
Power: Included Power Supply: 14V DC, 2A transformer 12-24V AC/DC Input 12VDC 1.5A *Battery-Backed Output Powers readers and other door hardware directly from the bus *Battery not included
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials
and workmanship.


Package Contents - Cloud Node includes the main panel and Single io door controller

  • (1) Stainless aluminum alloy housing (includes weather-proof gasket)
  • (1) Single io wireless or Ethernet door controller board (includes controller and reader)
  • (1) Sealed radome weather-proof, long-range antenna
  • (1) Ruggedized 10-key keypad
  • (1)Lock and key
  • (1) Power Supply - 14VDC, 2 Amp
  • (1) Bracket to secure power supply to an electrical outlet
  • (4 each) Bolts, lock washers, & nuts
  • (8) Washers
  • (1) Battery Leads
  • (3) Jumpers
  • (1) Diode
  • (2) Labels




This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers

Data Sheet

Quick Start Guide

Online Manual
