  • Product SKU: PDK-RDRPB
  • NSID: 24276
  • PDK-RDRPB

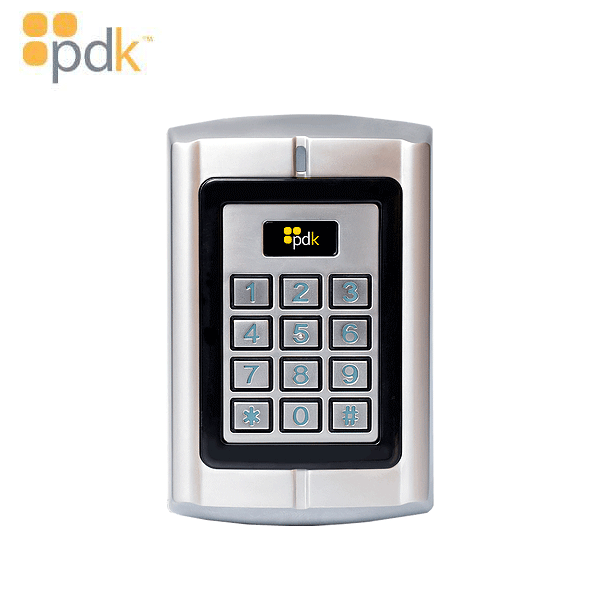

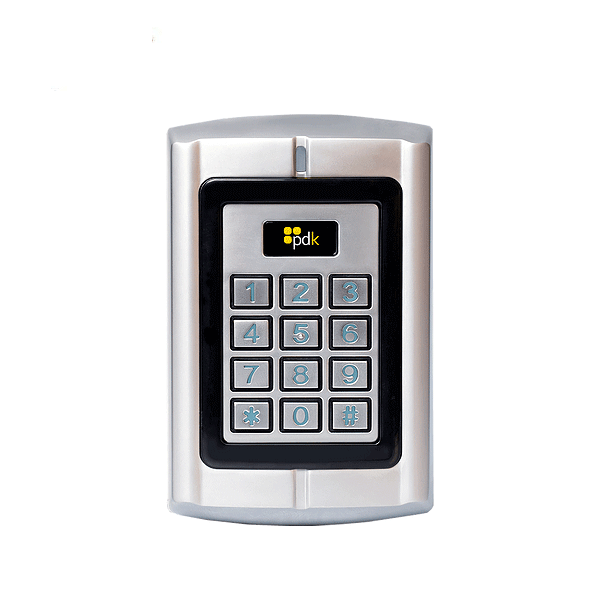

    The Push Button Reader equipped with a rugged backlit keypad, weatherproof design, and a durable zinc alloy casing, is built for applications where durability is key. The Push Button Reader offers the ability to unlock doors with proximity credentials, PIN, or the flexibility to configure two-layer security by requiring users to present a credential and enter a PIN to gain access.

    Model PN: RDRPB - Cloud Network Access Control Pushbutton PIN Reader



Specifications

Input: Frequency: 125 KHZ
Read Range: from 1.1” up to 2.3”
Output: Wiegand protocol
Cable Distance: Wiegand 500’ (22 AWG)
Environmental: Temperature: -40 ~ +140 F or -40 ~ +60 C
Humidity: 0 - 95% relative humidity, non-condensing
Protection Rating: IP65
Enclosure: Dimensions: (W x H x D) 3.22” x 5.03” x 1.10”
Weight: 1.43 lbs / 22.9 oz / 650 g
Compliance: Conforms to UL 294, FCC
Power: 12-18V AC/12-24V DC
(Linear power supply recommended)
Manufacturer’s Limited Warranty One to five-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.


Package Contents

  • Card Reader (1)
  • L Wrench (1)
  • Self Tapping Screws (4)
  • Expansion Rubber Bungs (4)


Data Sheet

Online Manual

PDK-RDRPB

The Push Button Reader equipped with a rugged backlit keypad, weatherproof design, and a durable zinc alloy casing, is built for applications where durability is key. The Push Button Reader offers the ability to unlock doors with proximity credentials, PIN, or the flexibility to configure two-layer security by requiring users to present a credential and enter a PIN to gain access.

Model PN: RDRPB - Cloud Network Access Control Pushbutton PIN Reader


Specifications

Input: Frequency: 125 KHZ
Read Range: from 1.1” up to 2.3”
Output: Wiegand protocol
Cable Distance: Wiegand 500’ (22 AWG)
Environmental: Temperature: -40 ~ +140 F or -40 ~ +60 C
Humidity: 0 - 95% relative humidity, non-condensing
Protection Rating: IP65
Enclosure: Dimensions: (W x H x D) 3.22” x 5.03” x 1.10”
Weight: 1.43 lbs / 22.9 oz / 650 g
Compliance: Conforms to UL 294, FCC
Power: 12-18V AC/12-24V DC
(Linear power supply recommended)
Manufacturer’s Limited Warranty One to five-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.


Package Contents

  • Card Reader (1)
  • L Wrench (1)
  • Self Tapping Screws (4)
  • Expansion Rubber Bungs (4)


Data Sheet

Online Manual
