PDK - RED 1 - Cloud Network Single Door Controller And PoE++ Module (Ethernet)
High-Security Single Door Controller
PDK’s Red 1 controller comes standard with Ethernet connectivity and self-discovery, simplifying IP configuration and connectivity. Red 1 also incorporates the highest level of security with communication encryption and OSDP reader functionality, monitors input, output, and battery voltage, along with overall controller health.

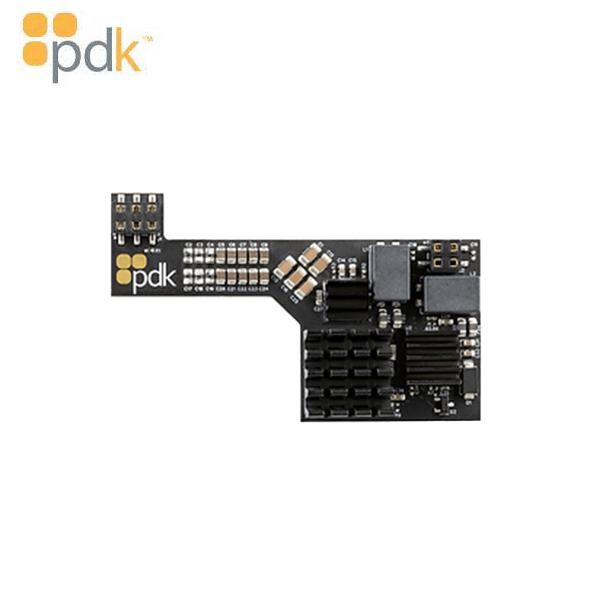

Plug-and-play connection options are available with our Red™ PoE++ Kit making installations faster and easier than ever before. Each module plugs seamlessly into the door controller and is instantly ready to go. With PoE, you automatically save on cable runs and can fully power up to 4 doors, making pdk controllers the most flexible and intuitive controllers on the market today!
Model PN: R1 - Cloud Network Single Door Controller (Ethernet)
RED 1 Features
Self-Discoverable - Red 1 is automatically discovered as a connected device by the Cloud Node. When an Ethernet device is connected to the Cloud Node, it pings the node to let the node know that it is there; it is not necessary to enter the IP address because the device is self-discovered.
Scalability - Whether you need one door or a thousand, the Red 1 controller allows you to scale the system to just the right size. In addition, with the flexibility of our WiMAC (Wireless Mesh Access Control), you can add more doors anytime or anywhere.
Plug ‘n’ Play Connectivity - All PDK Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device no matter how large the job is.
One Reader Input Ports - One input ports are ideal for applications where both read-in and read-out are a security requirement. Know exactly when users enter and exit a premise. The second reader input can also be assigned to trigger automated events.
Battery Charger and Statistics - In addition to charging the battery when a backup battery is attached, battery stats are also provided.
Fully Supervised - Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise, including the following: overcurrent events, primary power connectivity, battery connectivity, battery charge status.
Supports OSDP Protocol - Open Supervised Device Protocol (OSDP) is an access control communications standard developed by the Security Industry Association to improve interoperability among access control and security products. OSDP brings heightened security and improved functionality. It is more secure than Wiegand and supports AES-128 encryption. OSDP handles two-way communication between a reader and a controller. A controller or an interface unit can connect with a reader and identify a device if it is malfunctioning, manage LED indication, or verify an entered PIN.
Specifications
| Connections: | Removable Screw-down Terminals Built-in Power Supply Industrial-grade 2A Form-C Relays Reader Input A and Input B |
| Communication Options: | Ethernet |
| Environmental: | Temperature: -4° ~ +140° F /-20° ~ +60° C Humidity: 0 - 95% relative humidity non-condensing |

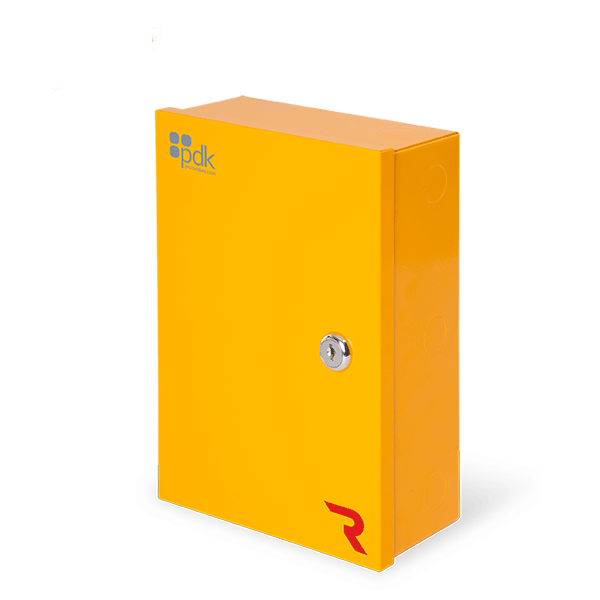

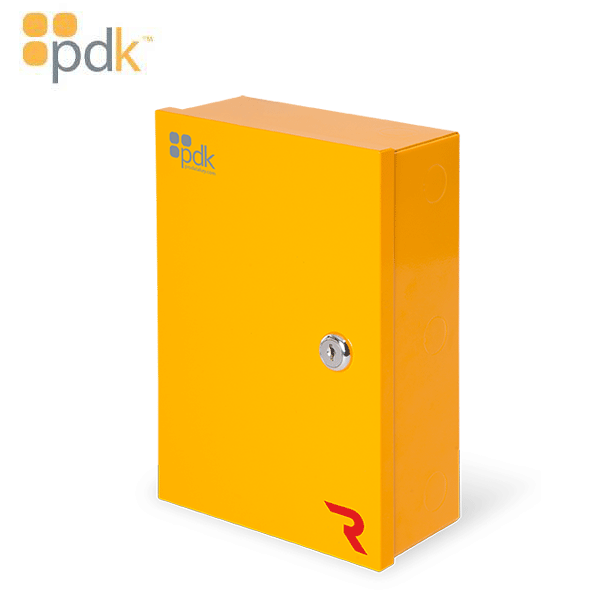

| Enclosure: | Dimensions (W x H x D) 6.5” x 9.25” x 3” Metal lockable security can (indoor use only) |
| Compliance: | Conforms to UL 294 |
| Power: | 12V-24V DC Input 14 VDC 2A 28 watt class 2 wall-wort power supply (Input supply to the board) Powers readers and other door hardware directly from the bus * Battery not included but a backup battery must be installed to comply with UL 294. |
| Manufacturer’s Limited Warranty | One to five-year warranty against defects in materials and workmanship. |
Package Contents -
- (1) Red 1 Controller
- (1) Battery Leads
- (2) Jumpers
- (1) Diodes
- (1) Key Lock
- (2) Labels
- (2) Enclosure Screws
- (1) QuickStart Guide
This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
