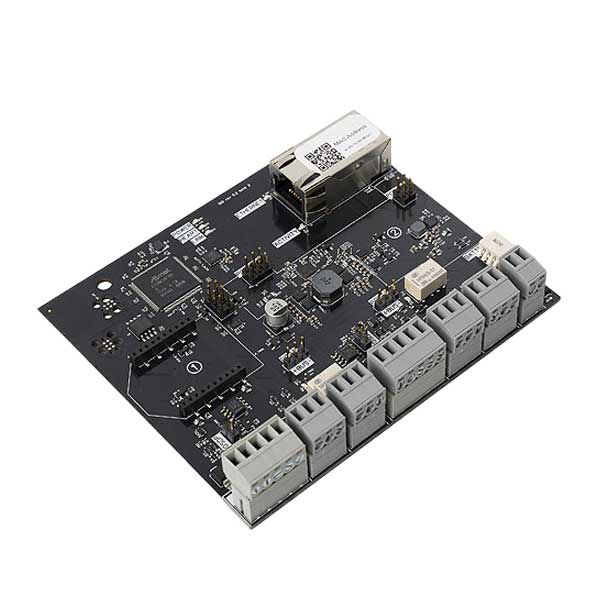

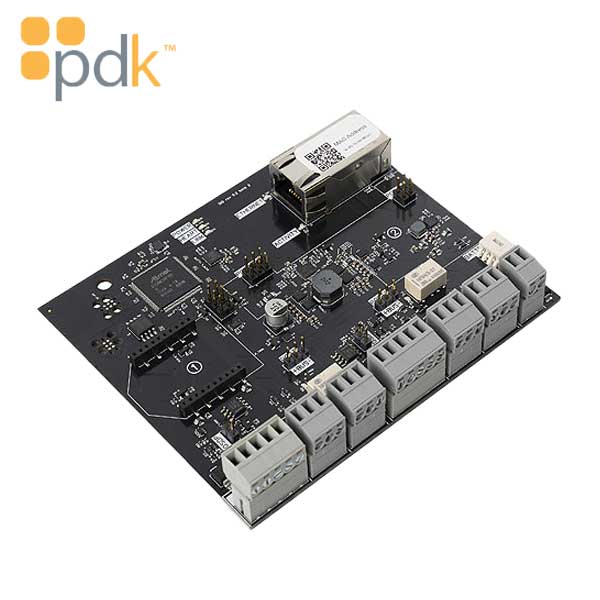

RED R2E Two-Door Expansion Board
PDK’s Red™ Max controller is truly in a class of its own, coming fully equipped with two Altronix power supplies and two Red four-door expander boards. The Red Max is fully customizable with any Red expansion board, allowing for scalability and control of up to 24 doors from one enclosure. Expander boards are available in one-door, two-door, and four-door options. Each expander includes built-in Ethernet connectivity and self-discovery, simplifying IP configuration and functionality.
PN: R2E
* COMPATIBLE WITH RED MAX CONTROLLER PN: RMAX *
RED MAX Features
Fully Customizable
The Red Max is fully customizable with any Red expansion board, allowing for scalability and control of up to 24 doors from one enclosure.
Advanced Security
ProdataKey Red™ products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
Power Monitoring
Equipped with two Altronix power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
Plugn'Play Connectivity
All pdk Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device, no matter how large the job is.
Self Discoverable
The Red Max Expander boards will be automatically discovered by the Cloud Node when an Ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.
Automatic Updates
Experience future-proof access control that’s always up-to-date and protected with the latest security enhancements.
Specifications
| Connections: | Removable Screw-down Terminals, Industrial-grade 2A Form-C Relays (2), Reader (2), Input A (2), Input B (2) |
| Communication Options: | Ethernet |
| Environmental: | Temperature: -4° ~ +140° F /-20° ~ +60° C Humidity: 0 - 95% relative humidity non-condensing |
| Power: | 12 VDC; Power readers and other door hardware using the built-in bus. 10A concurrent max on the bus. * 8 ah backup battery not included but is required to comply with UL 294. |
| Certifications | FCC Compliance Statement: This device complies with Part 15 of the FCC rules. |
| Manufacturer’s Limited Warranty | One to five-year warranty against defects in materials and workmanship. For full details, visit www.prodatakey.com/warranty |
This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
