PDK - RED Cloud Node - Cloud Network Access Control Main Panel with Single IO Door Controller - UHS Hardware
PDK - RED Cloud Node - Cloud Network Access Control Main Panel with Single IO Door Controller (Wireless) - UHS Hardware
PDK - RED Cloud Node - Cloud Network Access Control Main Panel with Single IO Door Controller (Wireless) - UHS Hardware
PDK - RED Cloud Node - Cloud Network Access Control Main Panel with Single IO Door Controller - UHS Hardware

PDK - RED Cloud Node - Cloud Network Access Control Main Panel with Single IO Door Controller (Wireless)

Available to Order
SKU: PDK-RED-RCNEW
NSID: 24298

Please Note: This product has a lead time

The RED Cloud Node is the main system panel and is the gateway to the Pdk.io cloud platform. Add other controllers to scale a system with network, PoE, and wireless options, giving you the most flexible controllers on the market.

The cloud node is the main system panel and is the gateway to the pdk io cloud platform. It also includes a single io (one door controller) to get your first door up and running. Each site requires one cloud node with an internet connection. The cloud node then communicates with all local door controllers while storing all data on-site in case of an internet outage. Ultimate flexibility is achieved by using ethernet, PoE, and wireless controllers with the cloud node. With the RED series you will get every feature of the regular cloud node but with improved security features.

Model PN: RED-RCNE - Cloud Network Access Control Main Panel with Single IO Door Controller (Wireless)

Call 1-800-878-6604 for Bulk / Dealer Pricing!

RED Cloud Node Features

Connects to pdk.io Cloud Platform Pdk.io provides the most powerful and streamlined access control platform on the market. Experience full configuration and management from any internet-connected device. Manage users, create groups, open and close doors, set system rules, get SMS & email alerts, and more. All in a single app.

Plug n’ Play Connectivity All io devices were designed to be plug n’ play. That means they’re super easy to install right out of the box. It’s easy to add in any io device no matter how large the job is, and you can quickly scale a system to any size. The cloud node can connect to up to a thousand doors on a single platform.

Perfect for Single or Multi-Door Installs In addition to connecting to our cloud platform, the cloud node also doubles as a single door controller. It’s the only device you need for a single door install. Just connect to the network and door hardware for a streamlined installation.

Fully Supervised Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise.

Upgrade Any System Backward compatible hardware makes system upgrades and takeovers a breeze. Simply replace any existing panel with a cloud node and io controllers, then connect it to the network to instantly bring the system into the cloud.

Automatic Software Updates Experience future-proof access control that’s always secure, and up-to-date. The cloud node updates automatically as new features, and security enhancements become available.

IMPORTANT: A PDK - Cloud Node is required to operate the Single io, Eight io, and Eight io+ door controller products.

Specifications

Connections: Removable Screw-down Terminals Power Supply Input
Industrial-grade 2A Form-C Relays (1 Door / 1 Aux) Reader Input (2) Input A (Door Position Sensor) Input B (Request To Exit)
Communication Options: WiMac Wireless Mesh (2.4 GHz / 802.15.4) Encryption: AES 128bit Wireless Range: 1 Mile LoS, 450ft indoor average
Environmental: Temperature: -20º ~ +60º C or -4º ~ +140º F Humidity: 0 - 95% relative humidity non condensing

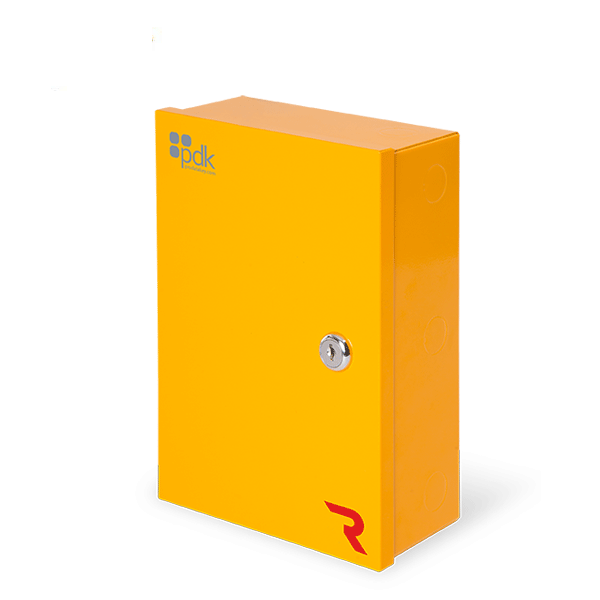

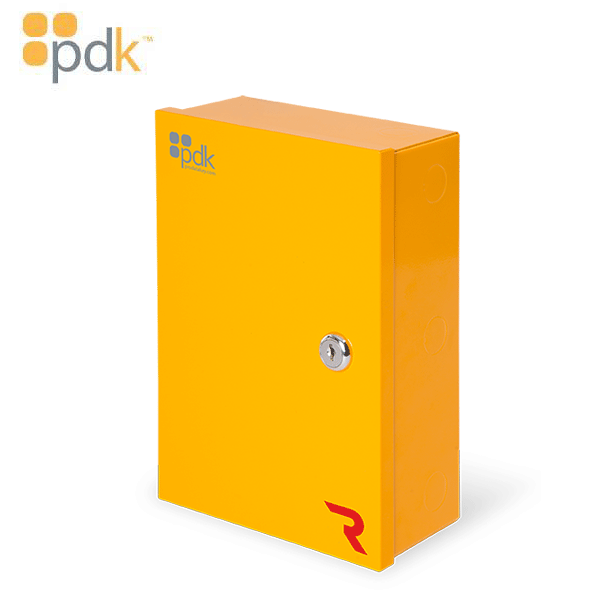

Enclosure: Dimensions (W x H x D) 6.5” x 9.25” x 3” Metal lockable security can (indoor use only)
Compliance: Conforms to UL 294
Power: 12-24V AC/DC Input
12VDC 1.5A *Battery-Backed Output
Powers readers and other door hardware directly from the bus
*Power supply and battery not included
Manufacturer’s Limited Warranty One to three-year warranty against defects in materials
and workmanship.

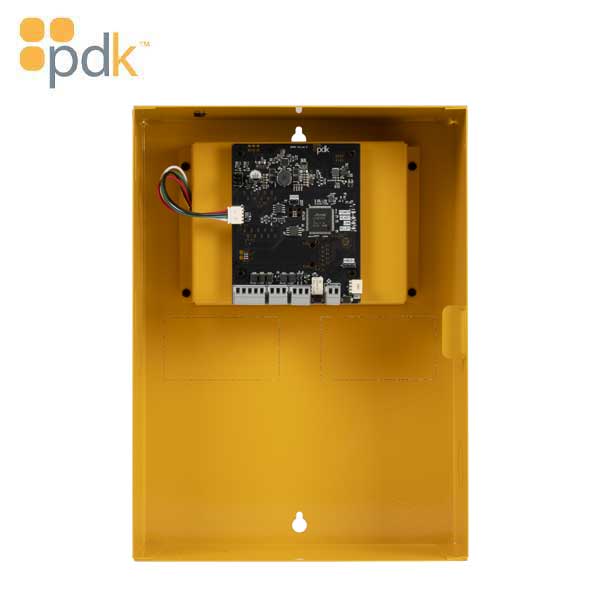

Package Contents - RED Cloud Node includes the main panel and Single io door controller

  • RED Cloud Node (1)

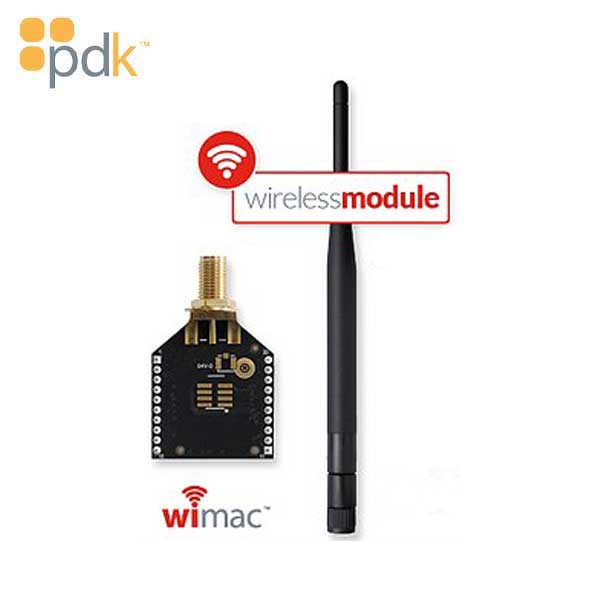

  • WiMac Wireless Module (1)
  • Antenna (1)
  • 4-in-1 Screwdriver (1)
  • Battery Leads (1)
  • Jumpers (3)
  • Diode (1)
  • Labels (2)
  • Key & Lock (1)
  • QuickStart Guide (1)


This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
